Swing-Arm Strain Relief with Shield Sock and
Self-Locking Rotatable Coupling
CONNECTOR DESIGNATOR:
Product Series
319
- EMI/RFI Shield
Sock Assemblies
Finish Symbol
(See
Table III)
Custom Braid Length
Specify In Inches
(Omit for Std. 12" Length)
319-181
"Wide Mouth" Composite Low-Profile
Composite
Backshells
A
A
F
H
MIL-DTL-5015, -26482 Series II, and
-83723 Series I and III
MIL-DTL-38999 Series I, II
MIL-DTL-38999 Series III and IV
Connector Designator
A, F, and H
Optional Braid Material
B
- See Table IV for Options
(Omit for Std. Nickel/Copper)
SELF-LOCKING
ROTATABLE COUPLING
319
H
181
Basic Part
Number
XB
15
B
R - 14
B
LOW PROFILE
Connector
Shell Size
(See
Table II)
Split Ring / Band Option
Split Ring (687-749) and Band
(600-052-1) supplied with
R
option
(Omit
for none)

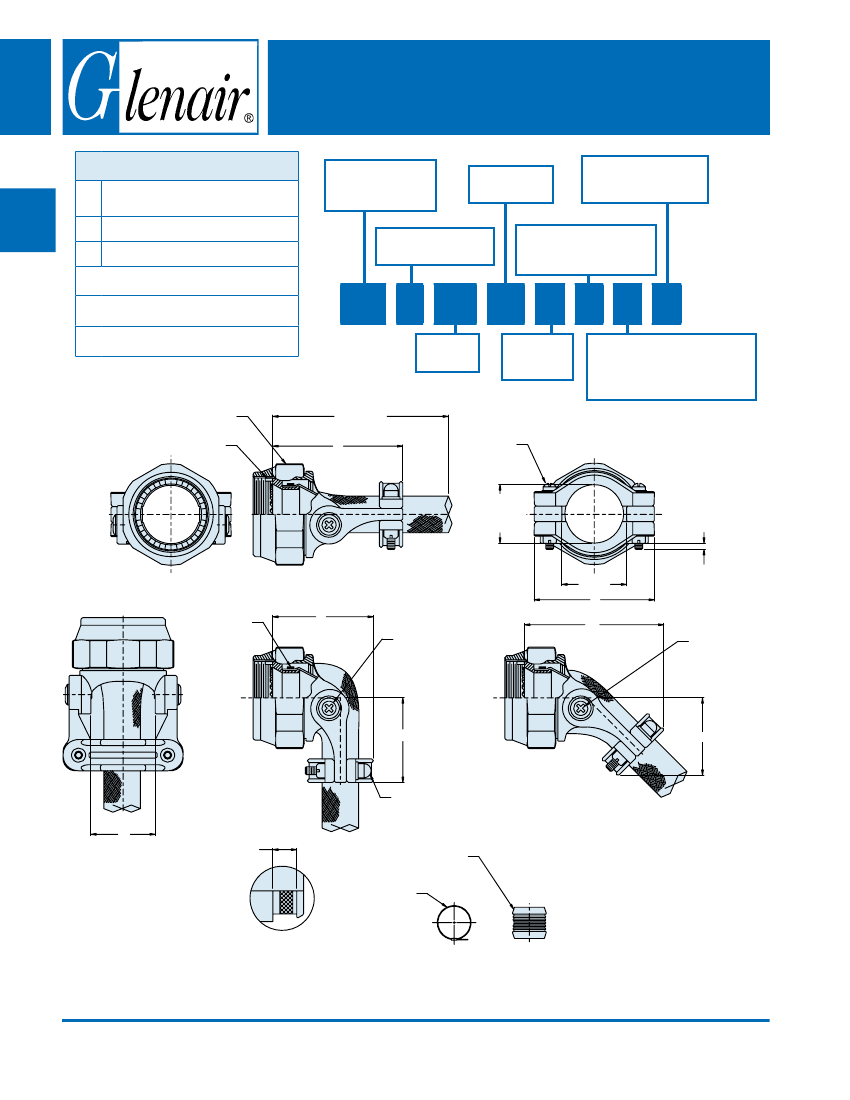

Anti-Rotation
Device - Typ
EMI Shroud
12.00 Min
D
Self-Locking
Hardware
Typ
L
Typ
Closed
Straight
Position
C
D
K Typ
J
Crimp Ring
Typ
E
Captive Position Screw
Locks Swing
Arm In 45°
Increments
G
.062 (1.57) Min
.250 (6.35) Max
Screw Protrusion Typ
Cross Recess
Screws
4 Plcs
E
M
F
90°
Position
Shown
45°
Position
Shown
Assembly Shown With
Wire Seal Ring
H
Screw Head Same
Side - Typ
F
Termination Area
Free Of Cadmium
Split Ring
(Glenair Part
Number 687-749)
Band
(Glenair Part
Number 600-052-1)
Detail B
Finish XN
G
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-28
Rev. 12 FEBRUARY 2013
Swing-Arm Strain Relief with Shield Sock and
Self-Locking Rotatable Coupling
TABLE II: SHELL SIZE (Continued Below)
Shell Size
A, F
08
10
12
14
16
18
20
22
24
H
D
Max
E
Max
F
± .03 (0.76)
.800 (2.32)
G
Max
H
Max
J
± .03 (0.76)
.936 (23.77)
K
Min
.350 (8.89)
L
Ref
.310 (7.87)
.375 (9.53)
.591 (15.01)
.661 (16.79)
.713 (18.11)
.795 (20.19)
Dimension
Between Ears Ref
M
Wire Bundle
.393 (9.98)
09 1.510 (38.35) .980 (24.89)
1.460 (37.08) .780 (19.81)
11 1.580 (40.13) 1.050 (26.67) .900 (22.86) 1.570 (39.88) .870 (22.10) 1.172 (29.77) .455 (11.56)
13 1.640 (41.66) 1.290 (32.77) .970 (24.64) 1.760 (44.70) 1.020 (25.91) 1.406 (35.71) .640 (16.26)
15 1.650 (41.91) 1.370 (34.80) 1.030 (25.75) 1.820 (46.23) 1.060 (26.92) 1.500 (38.10) .710 (18.03)
17 1.740 (44.20) 1.440 (36.58) 1.100 (27.50) 1.920 (48.77) .839 (21.31) 1.562 (39.67) .839 (21.31)
19 1.740 (44.20) 1.540 (39.12) 1.160 (29.46) 2.000 (50.80) 1.160 (29.46) 1.687 (42.85) .922 (23.42)
.455 (11.56)
.598 (15.19)
.710 (18.03)
.839 (21.31)
.934 (23.72)
21 1.890 (48.01) 1.690 (42.93) 1.230 (31.24) 2.180 (55.37) 1.290 (32.77) 1.912 (48.56) 1.068 (27.13) .996 (25.30) 1.068 (27.13)
23 1.920 (48.77) 1.760 (44.70) 1.300 (33.02) 2.250 (57.15) 1.350 (34.29) 2.036 (51.71) 1.197 (30.40) 1.060 (26.92) 1.197 (30.40)
25 2.080 (52.83) 1.790 (45.47) 1.490 (37.85) 2.390 (60.71) 1.470 (37.34) 2.281 (57.94) 1.323 (33.60) 1.123 (28.52) 1.323 (33.60)
TABLE III: FINISH
Symbol
XB
Finish
Composite Material–No Plating,
Color Black, Brass Interface
Shroud and Adapter–Nickel Plated
2000 Hour Corrosion Resistant
Ni-PTFE, Nickel-Fluorocarbon
Polymer.
1000 Hour Grey
TM
Composite Material–No Plating,
Color Black and Brown, Brass
Interface Shroud and Adapter–
Selectively Cadmium Plated
(See Detail B)
A
B
L
TABLE IV: BRAID TYPE
Symbol
Braid Type
100% AmberStrand
®
75%/25% AmberStrand
®
Blend
100% ArmorLite
TM
Nickel/Copper 34awg
Tin/Copper 34awg
Standard
T
XMT
XN
NOTES
1.
2.
3.
4.
5.
6.
7.
8.
9.
See Table I in Intro for front-end dimensional details.
Metric dimensions (mm) are in parethenses.
See composite thermoplastic shield sock assembly procedure for detailed installation instructions.
Add mod code -475 to end of part number for use with Series II connectors. Backshell to be supplied less shroud.
Coupling nut supplied unplated.
Glenair Series 600 Assembly Tools are recommended for installation.
Swing arm locks in 45° increments, shell size 09 through 25. Additional positioning increments are manufacturer's option.
Screw is captive to the body when disengaged. When tightened, the screw will not protrude into the surface.
Clamps accommodate MIL-DTL-38999, Series III and IV connectors, interface IAW AS85049, Figure 3.
10. Material/Finish:
Clamp body, coupling nut, saddles - High grade engineering thermoplastic/See Table III.
Clamp hardware - CRES/Passivate
Adapter (EMI/RFI) - Brass/Table III.
Anti-rotation device - Cprrosion resistant material.
Shield - Copper/Nickle plate.
Interface ring and shroud - Table III.
Crimp ring - Copper/Tin plated.
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-29
Rev. 12 FEBRUARY 2013
Composite
Backshells
319-181
"Wide Mouth" Composite Low-Profile
A
B
C
D
E
F
G
