M20-078051T1745

Description
Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size88KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Download Datasheet Parametric View All

M20-078051T1745 Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

M20-078051T1745 Parametric

Parameter NameAttribute value
Objectid1177556331
Reach Compliance Codecompliant
Other featuresROHS COMPLIANT
body width0.2 inch
subject depth0.201 inch
body length1.7 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability300 Cycles
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialNYLON
Manufacturer's serial numberM20
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeSURFACE MOUNT
Total number of contacts34

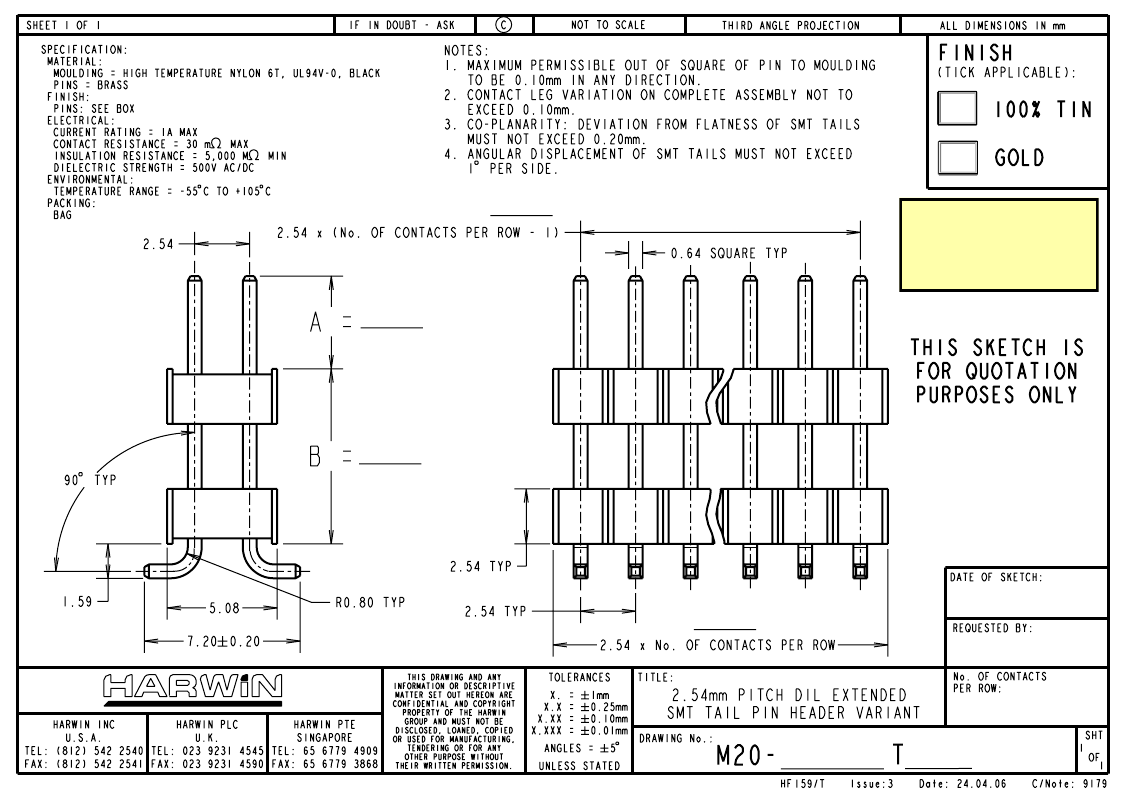

-2.54
Press <TAB> to advance
through the fields - the
part number will update
automatically.
0.0
5.1
0.00
00
051
0
05
