Preview

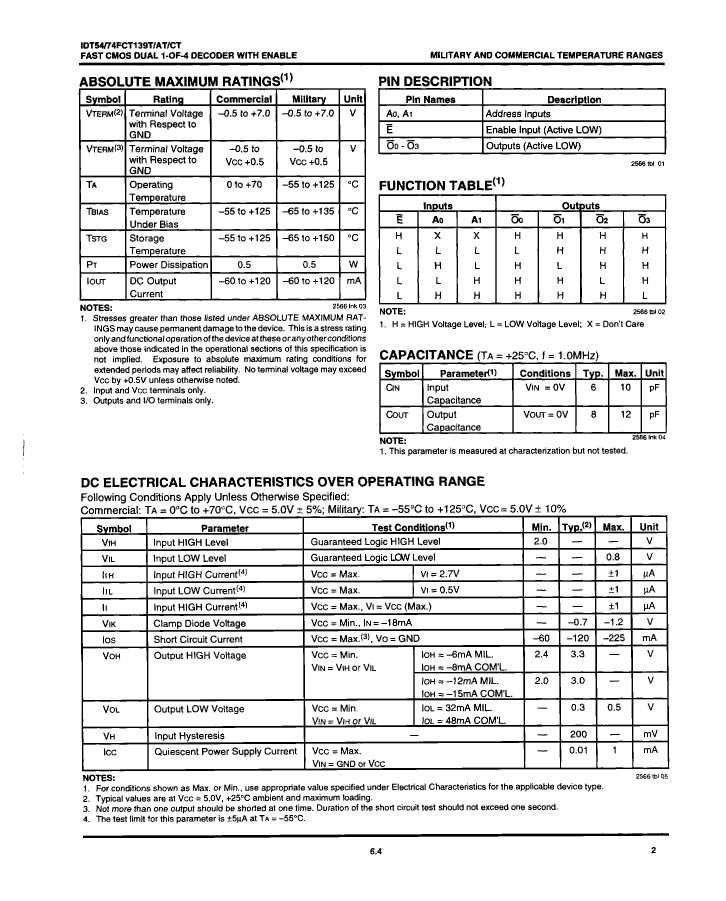

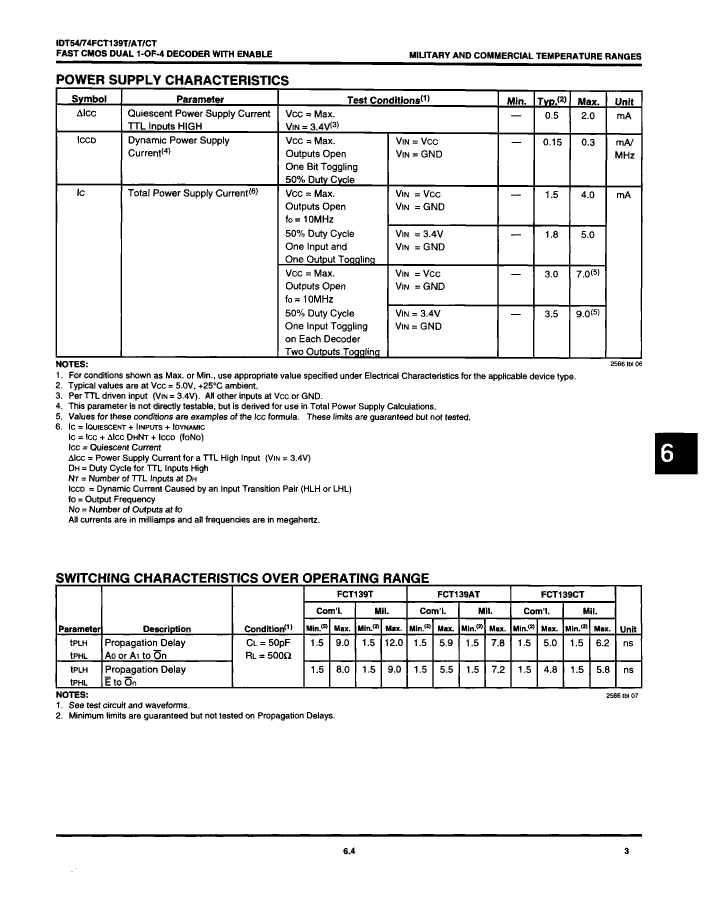

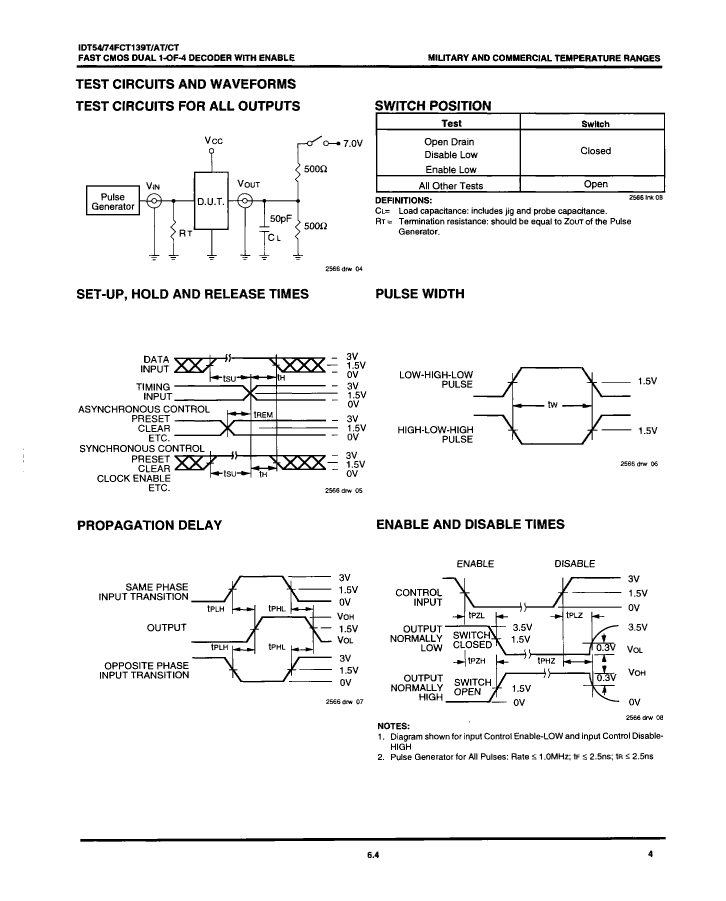

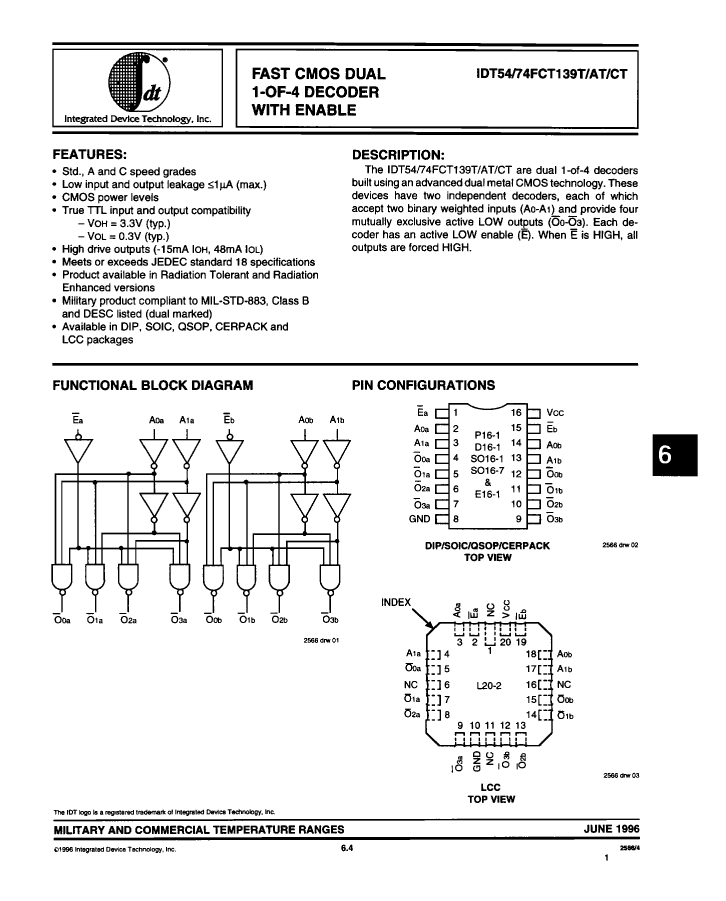

5962-9220204MFX: DescriptionDecoder/Driver, FCT Series, Inverted Output, CMOS, CDFP16, CERPACK-16; Categorylogic logic; File Size141KB，5 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-9220204MFX Overview

Decoder/Driver, FCT Series, Inverted Output, CMOS, CDFP16, CERPACK-16

5962-9220204MFX Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	DFP
package instruction	DFP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
series	FCT
JESD-30 code	R-CDFP-F16
JESD-609 code	e0
length	10.16 mm
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	7.8 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.159 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.731 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9220204MFX Related Products

	5962-9220204MFX	5962-9220204M2X	5962-9220202MEX	5962-9220206M2X	5962-9220206MFX	5962-9220206MEX	5962-9220202MFX	5962-9220204MEX	5962-9220202M2X
Description	Decoder/Driver, FCT Series, Inverted Output, CMOS, CDFP16, CERPACK-16	Decoder/Driver, FCT Series, Inverted Output, CMOS, CQCC20, LCC-20	Decoder/Driver, FCT Series, Inverted Output, CMOS, CDIP16, 0.300 INCH, CERDIP-16	Decoder/Driver, FCT Series, Inverted Output, CMOS, CQCC20, LCC-20	Decoder/Driver, FCT Series, Inverted Output, CMOS, CDFP16, CERPACK-16	Decoder/Driver, FCT Series, Inverted Output, CMOS, CDIP16, 0.300 INCH, CERDIP-16	Decoder/Driver, FCT Series, Inverted Output, CMOS, CDFP16, CERPACK-16	Decoder/Driver, FCT Series, Inverted Output, CMOS, CDIP16, 0.300 INCH, CERDIP-16	Decoder/Driver, FCT Series, Inverted Output, CMOS, CQCC20, LCC-20
Parts packaging code	DFP	QLCC	DIP	QLCC	DFP	DIP	DFP	DIP	QLCC
package instruction	DFP,	QCCN,	DIP,	QCCN,	DFP,	DIP,	DFP,	DIP,	QCCN,
Contacts	16	20	16	20	16	16	16	16	20
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-CDFP-F16	S-CQCC-N20	R-GDIP-T16	S-CQCC-N20	R-CDFP-F16	R-GDIP-T16	R-CDFP-F16	R-GDIP-T16	S-CQCC-N20
length	10.16 mm	8.89 mm	20.066 mm	8.89 mm	10.16 mm	20.066 mm	10.16 mm	20.066 mm	8.89 mm
Number of functions	2	2	2	2	2	2	2	2	2
Number of terminals	16	20	16	20	16	16	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	QCCN	DIP	QCCN	DFP	DIP	DFP	DIP	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	CHIP CARRIER	IN-LINE	CHIP CARRIER	FLATPACK	IN-LINE	FLATPACK	IN-LINE	CHIP CARRIER
propagation delay (tpd)	7.8 ns	7.8 ns	12 ns	6.2 ns	6.2 ns	6.2 ns	12 ns	7.8 ns	12 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	2.159 mm	2.54 mm	5.08 mm	2.54 mm	2.159 mm	5.08 mm	2.159 mm	5.08 mm	2.54 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	NO LEAD	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD
width	6.731 mm	8.89 mm	7.62 mm	8.89 mm	6.731 mm	7.62 mm	6.731 mm	7.62 mm	8.89 mm
Base Number Matches	1	1	1	1	1	1	1	1	1
JESD-609 code	e0	-	e0	-	e0	e0	e0	e0	-
Terminal surface	TIN LEAD	-	TIN LEAD	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	-
