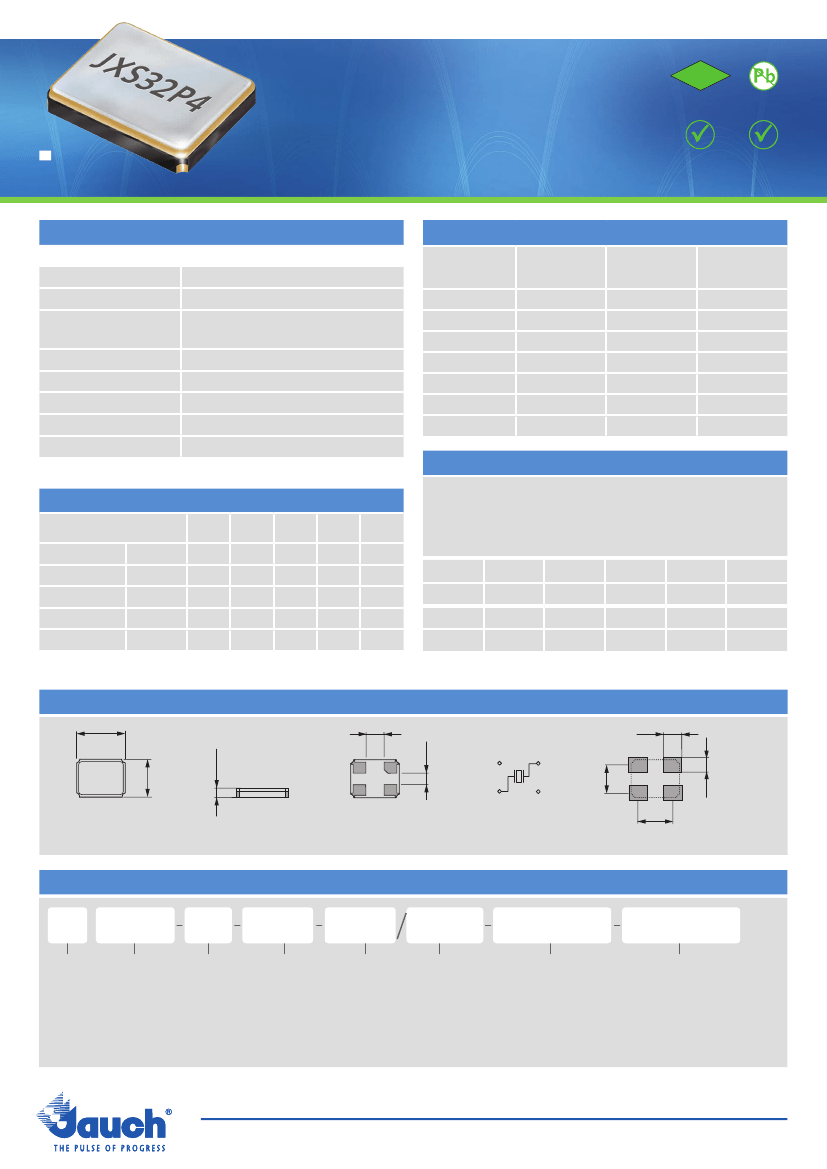

Automotive SMD Crystal · JXS32P4
- 4 Pad Version, 3.2 x 2.5 mm
- seam sealed ceramic/metal package
- all versions are AEC-Q200 qualified
- HMR version with extended shock & vibration immunity
actual size
2011/65/EC
RoHS
RoHS compliant
Pb free
REACH
compliant
Conflict
mineral free
GENERAL DATA
TYPE
frequency range
frequency tolerance at 25 °C
load capacitance C
L
shunt capacitance C
O
storage temperature
shock resistance
drive level max.
aging
JXS32P4
10.0 ~ 54.0 MHz
±10 ppm, ±30 ppm
12 pF standard
(option: 8 pF ~ 30.0 pF / series)
< 5 pF
-40 °C ~ +125 °C
> 100 g
100 µW
(half sine pulse, 6.0 ms)*
(10 µW recommended)
(fund. AT-cut)
ESR (SERIES RESISTANCE RS) AT MAX. TEMPERATURE RANGE
frequency
in MHz
10.0 ~ 11.999
12.0 ~ 12.999
13.0 ~ 15.999
16.0 ~ 18.999
19.0 ~ 21.999
22.0 ~ 29.999
30.0 ~ 54.000
MARKING
vibration
mode
fund. - AT
fund. - AT
fund. - AT
fund. - AT
fund. - AT
fund. - AT
fund. - AT
ESR max.
in ½
300
100
100
80
60
50
50
ESR typ.
in ½
150
50
40
40
30
25
20
< ±3 ppm first year
* optional HMR version: 3000G / half sine pulse / 0.3 ms
TABLE 1: FREQUENCY STABILITY VS. TEMPERATURE
±15
ppm
±20
ppm
frequency with load capacitance code
company code / date code / internal code
±50
ppm
±30
ppm
±100
ppm
-20 °C ~ +70 °C
-30 °C ~ +85 °C
-40 °C ~ +85 °C
-40 °C ~ +105 °C
-40 °C ~ +125 °C
STD.
T(-30/+85)
T1
T2
T3
*
date code: year/month; A ~ M: Jan. - Dec.; example 9A = 2019 January
9: 2019
0: 2020
1: 2021
2: 2022
3: 2023
4: 2024
Jan.
Febr.
B
Aug.
H
Mar.
C
Sept.
J
Apr.
D
Oct.
K
May
E
Nov.
L
June
F
Dec.
M
*
A
July
G
available
for frequencies > 20 MHz, ask if available < 20 MHz
for frequencies <20 MHz * best value for frequencies < 12.0 MHz
DIMENSIONS
3.2
±0.1
0.7 max.
#4
#3
2.5
±0.1
#3
1.2
±0.1
#4
1.0
±0.1
#4
#3
1.9
±0.1
1.1
±0.1
2.3
±0.1
1.3
±0.1
#1
#2
#2
#1
#1
#2
top view
ORDER INFORMATION
side view
bottom view
#2–#4: connected to lid
crystal connection
pad layout
in mm
Q
Quartz
frequency
10.0 ~ 54.0 MHz
type
JXS32P4
load
capacitance
12 pF standard
8 pF ~ 30 pF
S for series
tolerance at
25 °C
10 =
30 =
±10 ppm
±30 ppm
stability vs.
temp. range
option 1
option 2
AEC = AEC-Q200 qualified
HMR = high mechanical reliability
(3000g/half sine wave/0.3ms)
blank = -20 °C ~ +70 °C
15 = ±15 ppm
20 = ±20 ppm
T(-30/+85) = -30 °C ~ +85 °C
T1 = -40 °C ~ +85 °C
30 = ±30 ppm
T2 = -40 °C ~ +105 °C
50 = ±50 ppm
T3 = -40 °C ~ +125 °C
100 = ±100 ppm
Example: Q 28.0-JXS32P4-12-30/30-FU-AEC-LF
(Suffix LF = RoHS compliant / Pb free)
FU = for fundamental frequencies ≥ 20 MHz
frequencies ≥ 20 MHz
21032019
Jauch Quartz GmbH • e-mail: info@jauch.de • full data can bedata can be found under:
info@jauch.com
full found under: www.jauch.com
All specifications are subject to change without notice
www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
Automotive SMD Crystal · JXS32P4

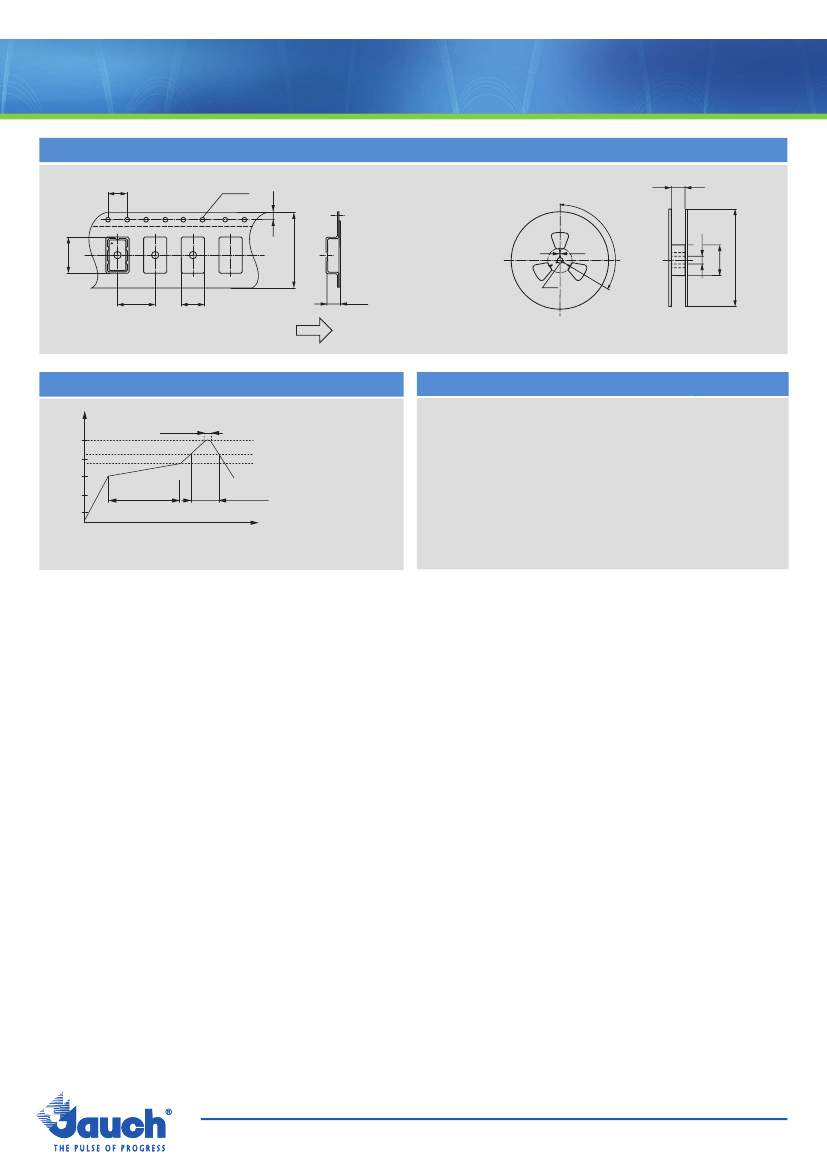

TAPING SPECIFICATION
4.0
ø 1.5
8.4
1.75
120°
ø 13
ø 80
3.4
0.1
4.0
2.7
0.1
Feeding
1.4
0.1
ø 13
±0.5
1000 pcs per reel
ø 178
8.0
2.0
in mm
REFLOW SOLDERING PROFILE
temperature (°C)
10 s max.
260
200
150
100
50
60 ~ 180 s
60 s max.
LOAD CAPACITANCE CODES
8 pF: k
9 pF: n
10 pF: h
11 pF: l
12 pF: a
13 pF: v
14 pF: x
15 pF: j
16 pF: b
17 pF: t
18 pF: f
20 pF: c
22 pF: g
24 pF: d
25 pF: r
27 pF: w
30 pF: .
series: s
T: 3rd OT
260 °C max.
220 5 °C
180 5 °C
time (s)
note: parts are also suitable for soldering systems with lead (Pb) content
example 20.0 MHz / 12 pF: 20a00
21032019
Jauch Quartz GmbH • e-mail: info@jauch.de • full data can bedata can be found under:
info@jauch.com
full found under: www.jauch.com
All specifications are subject to change without notice
www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
