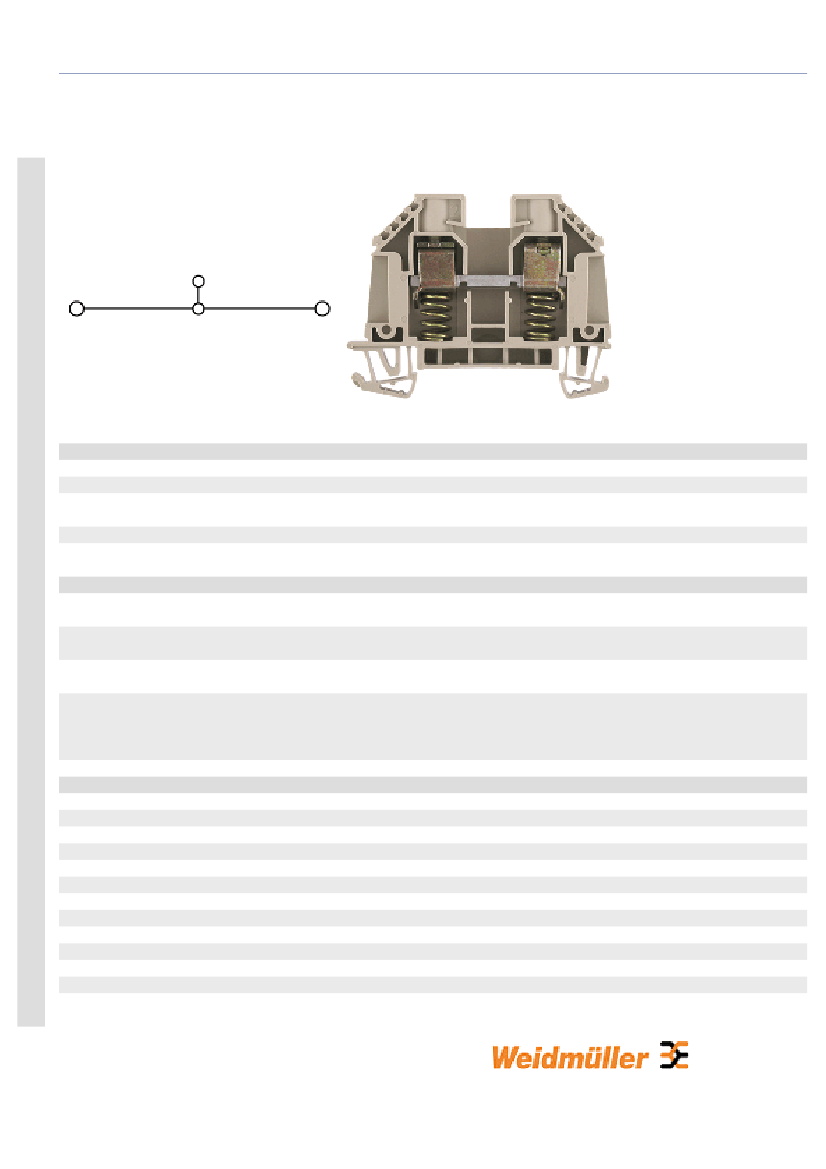

Product catalogue | Terminals | Screwing technology | W-series modular terminals | Modular terminals with external
spring | Modular feed-through terminals | 10mm²
General ordering data
Order No.
Part designation
Version
EAN
Qty.
Product notes
Note, ordering data
Note, technical data
Product description
Note, accessories
9537400000
WDU 10 SL SW
Special terminal, special connections, 10 mm²,
Screw connection, PA 66, black, TS 35
4032248037391
50 pc(s).
Are suitable for a rated voltage of 630 V with
pollution degree 2 (no larger soiling appears).
ESI rated data: 500 V/36 A / 16 mm² stranded
connection must be tightened with 2 Nm.
Spring below clamping yoke ensures additional
contact stability.
Hook-shaped cable lugs, wide design
0.25-1.5mm², order no. 9036290000 (100 pcs.);
and 1-2.5mm² thin version, order no. 9036300000
(100 pcs.)
SIRA02ATEX3242U
SIRA02ATEX3242U_e.pdf
IECEXSIR05.0040U
IECEXSIR05.0040U_e.pdf
275 V
50 A
10 mm²
275 V
50 A
10 mm²
CrossConnectionGuide.pdf
For operating temperature range see EC Design
Test Certificate / IEC Ex-Certificate of Conformity
PT OKIECEx/ATEX rating data
EU-type examination certificate
Download, German
Download English
IECEx Certificate of Conformity
Download
ATEX voltage
ATEX current
ATEX conductor cross-section
IECEx voltage
IECEx current
IECEx conductor cross-section
Voltage when using cross-connections
Operating temperature range
-1-
Product catalogue | Terminals | Screwing technology | W-series modular terminals | Modular terminals with external
spring | Modular feed-through terminals | 10mm²
PT OKIECEx/ATEX rating data
Marking EN 60079-7
2 clampable conductors (H05V/H07V) with
equal cross-section (rated connection)
Solid, min.
Solid, max.
Flexible, min.
Flexible, max.
Flexible with ferrule, min. (DIN 46228 pt 1)
Flexible with ferrule, max. (DIN 46228 pt 1)
Additional technical data
Colour of insulating material
Connection direction
End plate required
Explosion-tested version "Ex e"
Installation advice
Insulating material
Levels cross-connected internally
No. of identical terminals
No. of levels
No. of terminal strips per level
Open sides
Operating temperature range
Product family
Type of connection
Type of mounting
UL 94 flammability rating of insulation material
Version
CSA rating data
Voltage (CSA)
CSA current
Min. cross-section (CSA)
Max. cross-section (CSA)
Conductors for clamping (additional
connection)
Flexible with ferrule, min. (DIN 46228 pt 1)
Flexible with ferrule, max. (DIN 46228 pt 1)
Conductors for clamping (rated connection)
Clamping range, min.
Clamping range, max.
Type of connection
2nd type of connection
Connection direction
No. of connections
Stripping length
Clamping screw
Blade size
Ex e II
2.5 mm²
4 mm²
2.5 mm²
4 mm²
1 mm²
4 mm²
black
on side
Yes
No
TS 35
PA 66
No
1
1
2
right
- 50 °C, + 120 °C
W-Series
Screwed
Snap-on
V-0
Feed-through terminal
300 V
65 A
AWG 16
AWG 8
1.5 mm²
10 mm²
1.31 mm²
16 mm²
Screw connection
screwed
on side
2
17 mm
M4
1.0 x 5.5 mm
-2-
Product catalogue | Terminals | Screwing technology | W-series modular terminals | Modular terminals with external
spring | Modular feed-through terminals | 10mm²
Conductors for clamping (rated connection)
Tightening torque range
Torque level with DMS electric screwdriver
Gauge to IEC 60947-1
Solid, min.
Solid, max.
Stranded, min.
Stranded, max.
Flexible, min.
Flexible, max.
Flexible with ferrule, min. (DIN 46228/1)
Flexible with ferrule, max. (DIN 46228/1)
AWG conductor size, min.
AWG conductor size, max.
AWG conductor size, min.
AWG conductor size, max.
Dimensions
Width
Height of lowest version
Length
Weight
TS 35 offset
Disconnect terminals
Torque level with DMS electric screwdriver
Rating data
Rated cross-section
Rated voltage
Rated impulse voltage
Rated current
Standards
Current with max. conductor
Pollution severity
UL rating data
Voltage (UL)
Current (UL)
Min. cross-section (UL)
Max. cross-section (UL)
Approvals
Approvals institutes
1.2...2.4 Nm
4
A6
1.5 mm²
16 mm²
1.5 mm²
16 mm²
1 mm²
6 mm²
1.5 mm²
10 mm²
AWG 16
AWG 6
1.31 mm²
13.3 mm²
9.9 mm
47 mm
60 mm
21.11 g
32 mm
4
10 mm²
500 V
6 kV
57 A
IEC 60947-7-1
76 A
3
150 V
50 A
AWG 16
AWG 8
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
EC000897
EC000897
27-14-11-31
-3-
Product catalogue | Terminals | Screwing technology | W-series modular terminals | Modular terminals with external
spring | Modular feed-through terminals | 10mm²
Classifications
eClass 5.0
eClass 5.1
27-14-11-31
27-14-11-31
Similar products
Order No.
9537480000
9537490000
9537410000
Part designation
WDU 10 SL
WDU 10 SL/EN
WDU 10 SL/EN SW
Version
Special terminal, special connections, 10 mm², Screw connection,
Wemid, dark beige, TS 35
Special terminal, special connections, 10 mm², Screw connection,
Wemid, dark beige, TS 35 + TS 32
Special terminal, special connections, 10 mm², Screw connection,
PA 66, black, TS 35 + TS 32
-4-
