REVISIONS
REV.
A
ECO. NO
2146
DESCRIPTION
INITIAL RELEASE
DATE
07/16/2010
BY
LH
F
F
2.429±.012 61.70±0.30
E
.248±.012 6.30±0.30
.100±.008 2.54±0.20
E
.189±.008 4.80±0.20
.039±.008 1.00±0.20
D
.006 0.16
D
C
2X .142 3.60
POINT OF CONTACT(REF.)
.094±.004 2.40±0.10
.118±.008 3.00±0.20
.248±.008 6.30±0.20
.197±.004 5.00±0.10
C
B
B
A
NOTES:
1. INSULATOR MATERIAL: PBT.
2. CONTACT MATERIAL: BRASS.
3. PLATING: GOLD FLASH OVERALL.
4. UL FLAMMABILITY RATING: 94V-0.
5. DIELECTRIC WITHSTANDING VOLTAGE: 650V AC.
6. CURRENT RATING: 3 AMPS PER CONTACT.
7. CONTACT RESISTANCE: 30 MILLI OHMS MAX.
8. INSULATION RESISTANCE: 1000 MEGA OHMS.
9. DOUBLE TUNING FORK TYPE CONTACT, ACCOMMODATES .025"[0.64mm] SQ PINS.
.100"[2.54mm] PITCH LOW-PROFILE MINI TYPE.
10. OPERATING TEMPERATURE: -40 TO +85 C
R
oHS COMPLIANT
11. MODIFICATION: CONTINUITY TYPE.
Pb
DIMENSIONS ARE IN INCHES[MM]
TOLERANCES:
ANGULAR: 30
.XX= .012 [.30]
.XXX= .008 [.20]
.XXXX= .004 [.10]
UNLESS OTHERWISE SPECIFIED:
DRAWN
DATE
NAME
7/16/2010
LH
INTERPRET DIMENSIONS AND GEOMETRIC
TOLERANCING
PER: ASME Y14.5M-2009
3
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
DESCRIPTION
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
PART NUMBER
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.

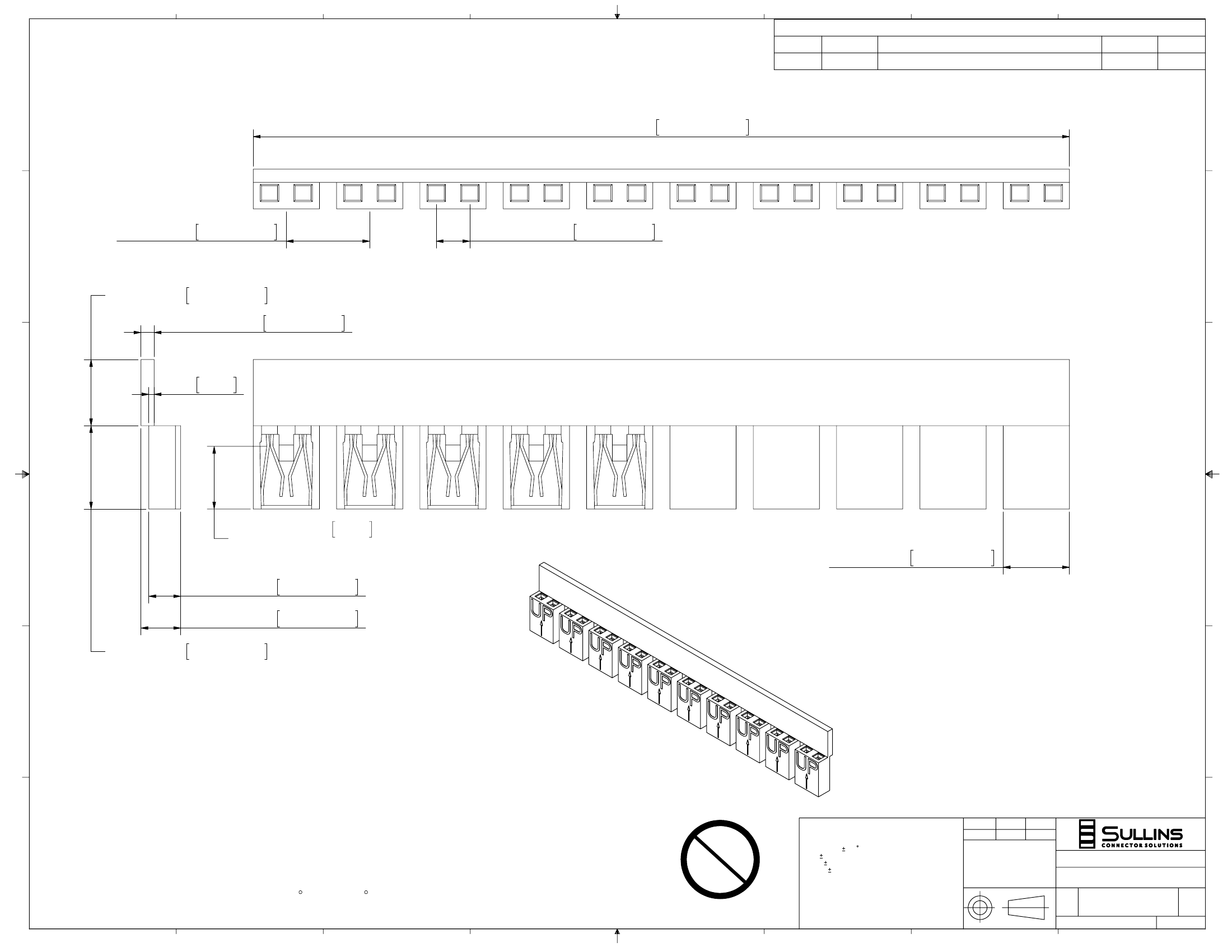

MINI SHUNT, .100" CC, OPEN TOP
A
QPC02SXHN-M290RC
SIZE DWG. NO.
SCALE: 16:1
2
1
C
REV
11511
A
SHEET 1 OF 1
8
7
6
5
4
FILE NAME: Z:\ECO PENDING\JH TEMP\11511, QPC02SXHN-M290RC PRINT: 3/8/2011
