CL06120621G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CL06120621G

CL06120621G: DescriptionArray/Network Resistor, Bussed, Metal Glaze/thick Film, 0.125W, 620ohm, 100V, 2% +/-Tol, -200,200ppm/Cel, 6010,; CategoryPassive components The resistor; File Size48KB，1 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

CL06120621G Overview

Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.125W, 620ohm, 100V, 2% +/-Tol, -200,200ppm/Cel, 6010,

CL06120621G Parametric

Parameter Name	Attribute value
Objectid	898550975
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Conformal Coated
Lead length	5 mm
lead spacing	2.54 mm
Network Type	Bussed
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	5.1 mm
Package length	15.24 mm
Package form	SIP
Package width	2.5 mm
method of packing	Magazine
Rated power dissipation(P)	0.125 W
resistance	620 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	CL (G TOL)
size code	6010
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Tolerance	2%
Operating Voltage	100 V

Preview

Download Datasheet

View All

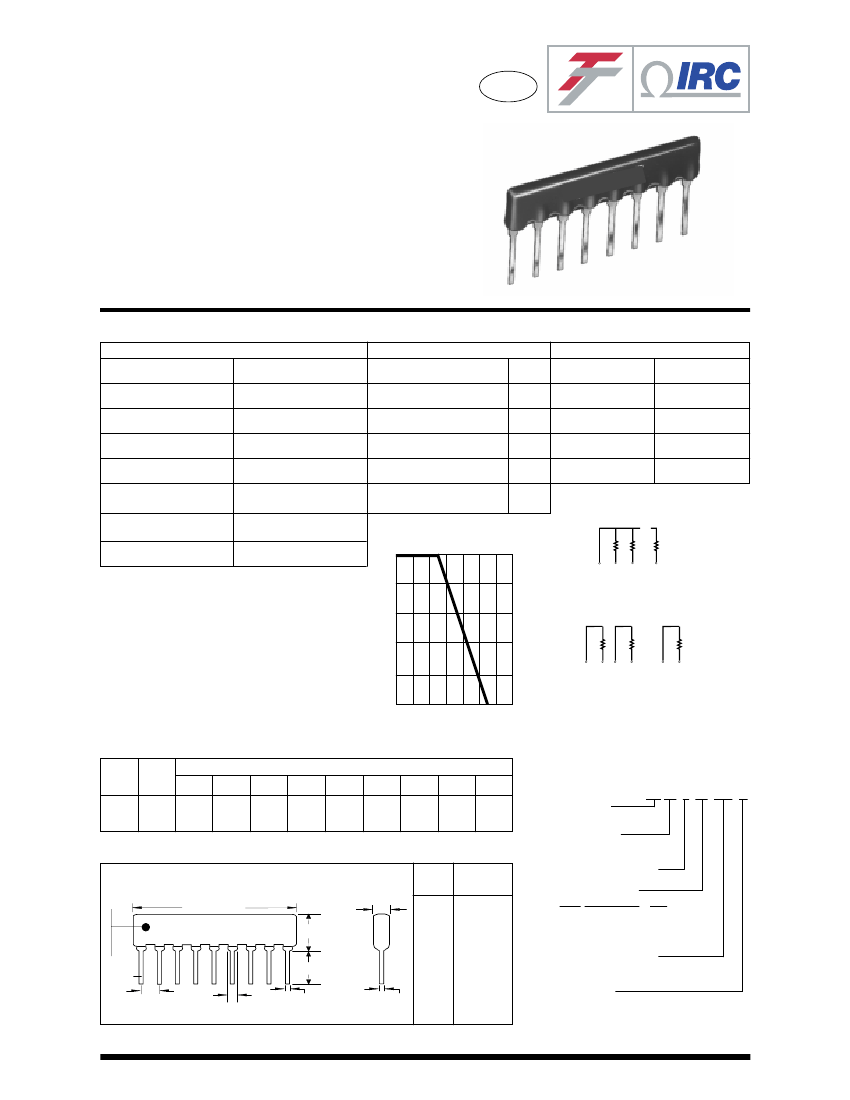

THICK FILM CONFORMAL COATED

LOW PROFILE SIP NETWORK

ISO-9001

Registered

SERIES

•

4 through 11 pin packages

•

Project 0.20 in. from circuit board

•

Circuits -1 and -3 are standard

SPECIFICATIONS:

Element:

Substrate:

Body:

Terminals:

Lead Pull:

Lead Solderability:

Resistance to

Soldering Heat:

Marking Resistance

to Solvents:

Physical

Fused thick-film

composition

Environmental Per MIL-R-83401

Electrical

±0.5%

Resistance

Short Time Overload:

22 to 1.0M

Range (ohms):

±1%, ±2%, ±5%

±0.5%

Resistance

96% alumina

Terminal Strength:

Tolerance;

Conformal coated

±100 ppm/°C (1%

Resistance to Solder

±0.5%

Temperature

Tol.), ±200 ppm/°C

Heat:

Coefficient:

Max. Continuous

100V

Solder plated steel

±2%

Moisture Resistance:

Working Voltage:

Operating

2.2 pounds

±2%

-40°C to 125°C

Load Life:

Temperature:

MIL-STD-202, method 210,

Temperature Cycling:

±0.5%

STANDARD CIRCUITS:

cond. A

CIRCUIT 1 Bussed

MIL-STD-202, method

210, cond. A

POWER DERATING:

R1 R2

MIL-STD-202, method 215

100

n+1

% Of Rated Power

STANDARD RESISTANCE (OHMS):

100

120

150

180

220

270

330

390

470

560

680

820

1.2K

1.5K

1.8K

2.2K

2.7K

3.3K

3.9K

4.7K

5.6K

6.8K

8.2K

10K

12K

15K

18K

22K

27K

33K

39K

47K

56K

68K

82K

100K

120K

150K

180K

220K

270K

330K

390K

470K

560K

680K

820K

R1+R2 ...=Rn

(n=3 to 13)

CIRCUIT 3 Isolated

(n=2 to 7)

R1=R2...=Rn

40 60 80 100 120 140 160

Ambient Temperature (°C)

HOW TO ORDER:

When ordering R

specify the value of

(The 3 circuits will be marked with a letter 'S'

preceding the resistance value)

POWER RATING AT 70°C

Cir. One

Type Elem. 4 Pin

-1

-3

0.125 0.375

0.250 0.500

Maximum Power In One Network (watts)

5 Pin 6 Pin 7 Pin 8 Pin 9 Pin 10 Pin 11 Pin 14 Pin

0.5

0.625 0.75

0.750

0.875

1.05

1.15

1.45

Sample Part No.

CL 10 3 01 223 G

IRC Type

No. of Pins

(4 through 11)

DIMENSIONS

(Inches and (mm)):

Front marking dot indicated direction of Pin No.1

.100 max.

(2.5 max.)

L max.

1000ΩJ

0.20

(5.1)

No. of

Pins

L Max.

Inches

(mm)

0.4 (10.16)

0.5 (12.7)

0.6 (15.24)

0.7 (17.78)

0.8 (20.32)

0.9 (22.86)

1.0 (25.40)

1.1 (27.94)

1.23 (31.00)

1.33 (33.68)

1.40 (35.56)

Circuit Type

(1 & 3)

Characteristic

Code Classification

01 Commercial

Grade

20 Commercial

Grade

TCR

±100

ppm/°C

±200

ppm/°C

Resistance Range

For circuits 1 or 3, 2 digit range and digit multiplier

No.1

.197 max.

(5.0 max.)

Tolerance

F=1%, G=2%, J=5%

Front marking dot indicates direction of Pin No.1

For 1% tol. use 4 digit mil

.100±008

(2.54±0.2)

.048±.008

(1.2±0.2)

.0197±.004

(0.5±0.1)

.0197 ± .004

(0.5 ± 0.1)

WIREWOUND AND FILM TECHNOLOGIES DIVISION

736 Greenway Road

•

Boone, North Carolina 28607-1860

•

Tel: 828-264-8861

•

Fax: 828-264-8866

•

www.irctt.com
