2000-1-2-41-00-BK datasheet, PDF

Datasheet> All Categories > The connector> 2000-1-2-41-00-BK

2000-1-2-41-00-BK: Descriptionhdmi A type female 19p smt; CategoryThe connector; File Size294KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric View All

2000-1-2-41-00-BK Overview

hdmi A type female 19p smt

2000-1-2-41-00-BK Parametric

Parameter Name	Attribute value
Datasheets

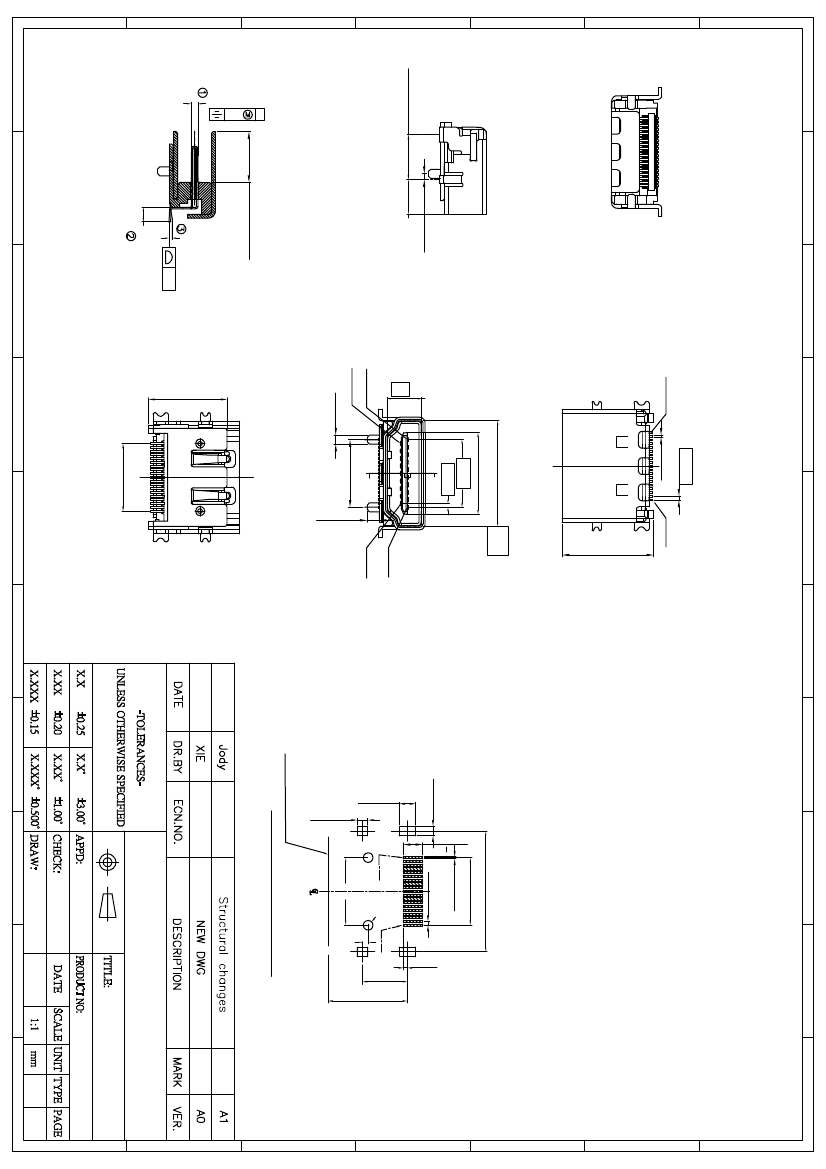

2000-1-2-41-00-BK Drawing
Product Photos
2000-1-2-41-00-BK
Standard Package	2,000
Category	Connectors, Interconnects
Family	USB, DVI, HDMI Connectors
Packaging	Tray
Connector Type	HDMI
Number of Contacts	19
Gende	Receptacle
Specifications	-
Mounting Type	Surface Mount, Right Angle, Horizontal
Features	Board Guide, Solder Retenti
Ingress Protecti	-
Dynamic Catalog	CNC Tech - USB
Other Names	1175-1703

Preview

Download Datasheet

View All

NOTE:

0.50

0.23

PIN1

PIN19

14.00

+0.05

-0.04

10.80±0.1

+0.05

-0.04

1Material:

Terminal: Brass C2680-1/2H(HV120~140),T=0.2±0.02mm.

Shell : Brass ,T=0.5±0.02mm.

Housing : LCP(E130I)+30%.G.F.(UL94-0),Black.

2.Plating:

Terminal: Au plated on contact area (see order information),

100u" Sn plated on solder tail area,

both over 50u" min. Ni underplated overall.

Shell : Gold Flash overall.

3.Mechanical Characteristics:

Insertion force : 4.5Kgf max.

Withdrawing force : 1Kgf ~ 4Kgf.

-A-

12.20

16.10

9.00

4.55

9.00

0.50

2.60

0.28TYP

4-1.30

(PITCH)

0.76

5.96±0.10

-B-

4.60±0.10

2-2.20

PIN19

PIN1

5.96

PIN2

PIN1

∅

0.54

0.50

CONTACT

0.90±0.05

6.80±0.20

+0.10

-0.05

CONNECTOR EDGE

RECOMMENDED PCB LAYOUT (TOP VIEW)

TOLERANCE: ±0.05mm

0.08

2017/04/06

@0.05

0.08

10.45

2012/03/06

2-1.40

1.60

1.20

9.00

A-A

1.8±0.25

9.00

CnC Tech,LLC

0.76

PIN19

PIN18

9.00

10.55

HDMI AF SMT 四脚SMT 带柱

2000-1-2-41-00-BK

2012/04/06

1/1
