USB-A-D-F-B-TH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> USB-A-D-F-B-TH

USB-A-D-F-B-TH: Descriptionusb type A black dbl T/H; CategoryThe connector The connector; File Size543KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

USB-A-D-F-B-TH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	USB-A-D-F-B-TH	-	-	View	Buy Now

USB-A-D-F-B-TH Overview

usb type A black dbl T/H

USB-A-D-F-B-TH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	8 weeks
Samacsys Descripti	Samtec, USB-A Single Port Right Angle Through Hole, Socket 2.0 Type A USB Connec
Other features	OTHER STACKING CONNECTOR: 4 CONTACTS
body width	0.272 inch
body length	0.492 inch
Body/casing type	SOCKET
Connector type	USB CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	30 mΩ
Contact style	USB, SER A FLAT
DIN compliance	NO
Durability	1500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-50 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLAR PIN POSITION
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

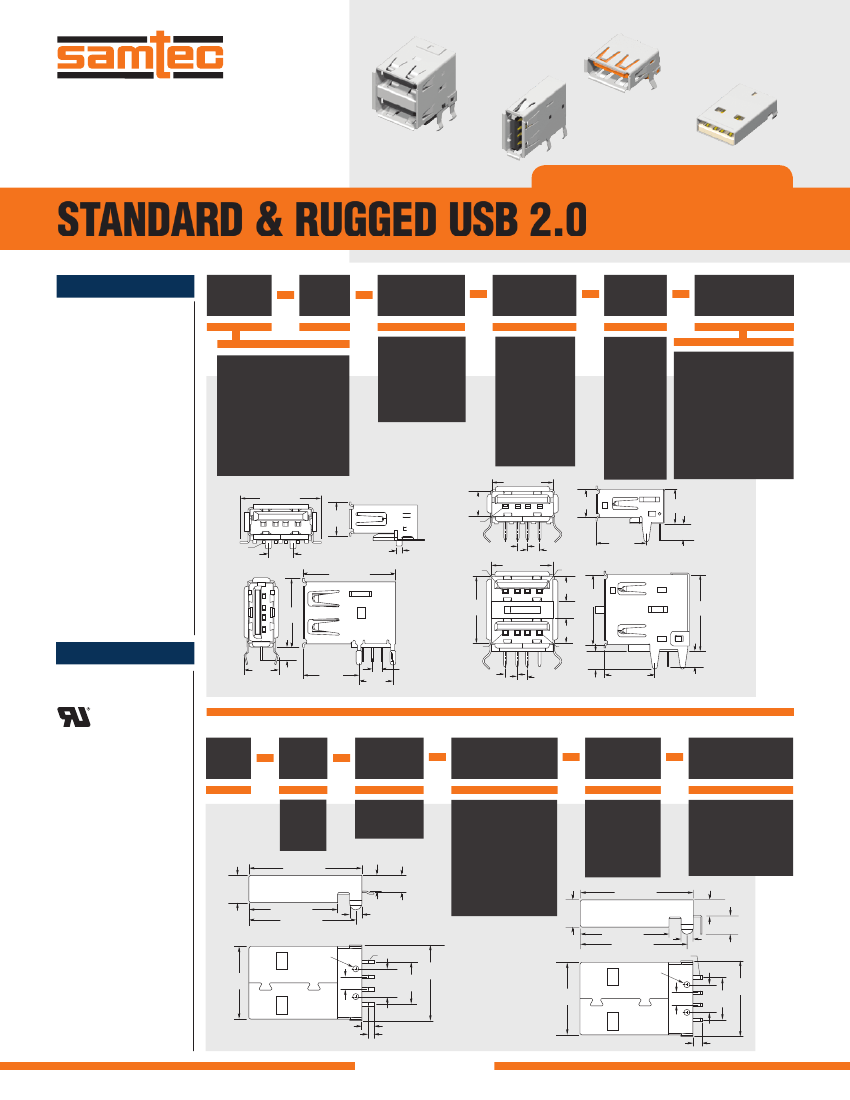

F-219

USBR–A–S–F–O–TH

USB–AM–S–F–W–TH

USB–A–D–S–B–TH

USB–A–S–F–B–VU

USB-A, USBR-A, USB-AM SERIES

STANDARD & RUGGED USB 2.0

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?USB-A,

www.samtec.com?USBR-A or

www.samtec.com?USB-AM

Insulator Material:

High Temperature

Thermoplastic

Contact Material:

Phosphor Bronze

Plating:

Gold on Contacts,

Nickel on Shell, Tin on Tails

Operating Temp Range:

-50 °C to +85 °C

Voltage Rating:

30 VAC

Cycles:

1500 (max tested)

Packaging:

Packaged and shipped in Bulk

Packaging Trays; Trays suitable

for automation available

RoHS Compliant:

Yes

Lead–Free Solderable

–TH & –VU=Yes

(Wave Solder only)

TID Numbers (USB-A):

USB-A-D-X-X-TH (61001199)

USB-A-S-X-X-TH (61001180)

USB-A-S-X-X-SM2 (61001152)

TID Number (USB-AM):

USB-AM-S-X-X-SM (61001154)

TYPE

SHELL

TYPE

PLATING

COLOR

TERMINATION

= Standard Connector

USB

= Single

–S

= Increased

Retention Connector

(Complies with Class 1,

DIV II minimum withdrawal

requirement of 15N.)

USBR

= Double

(–TH option only)

–D

= Gold Flash on

Mating Area,

Tin on Tails

–F

= Black

(USB only)

–B

= Through-hole

–TH

= 30 µ" (0.76 µm)

Gold on

Mating Area,

Tin on Tails

(12.50) .492

–S

= White

(USB only)

–W

–O

= Surface Mount

(USB only)

–SM2

–VU

= Orange

(USBR only)

(5.72)

.225

= Upright, Through-hole

(16.40) .646

(6.90)

.272

(5.12)

.202

(6.90)

.272

(2.84)

.112

(5.00)

.197

–SM2

(19.20) .756

(1.20)

.047 DIA

(2.00)

.079

(12.50) .492

(2.50)

.098

–TH

(10.40)

.409

(5.12)

.202

(14.50)

.571

(13.62)

.536

(5.12)

.202

(2.90)

.114

(7.10)

.280

(11.58)

.456

(7.00)

.276

(14.22)

.560

(15.49)

.610

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

(2.00)

.079

–VU

(2.50)

.098

(2.00)

.079

(4.42)

.174

(10.72) .422

(3.00)

.118

–D (Requires –TH)

FILE NO. E111594

USB

TYPE

SHELL

TYPE

PLATING

COLOR

TERMINATION

= A Type

(Plug)

(18.70) .736

(4.50)

.177

(14.60) .575

(17.60) .693

–AM

= Single

–S

= Gold Flash on

Mating Area,

Tin on Tails

–F

= Black

–B

= Through-hole

–TH

(2.62) (2.87)

.103 .113

(2.00)

.079

= 30 µ" (0.76 µm)

Gold on Mating Area,

Tin on Tails

–S

= White

(18.80) .740

(4.52)

.178

(14.70) .579

(17.70) .697

–W

= Surface Mount

–SM1

(2.62)

.103

(3.10)

.122

(2.00)

.079

(4.60) .181

(7.00)

.276

(2.00)

.079

(12.50)

.492

(1.00)

.039 DIA

(12.00)

.472

(2.00)

.079

(12.00)

.472

(4.55) (7.00)

.179 .276

(1.00)

.039 DIA

(12.00)

.472

(2.00) .079

–SM1

(1.00) .039

Due to technical progress, all designs, specifications and components are subject to change without notice.

–TH

(1.45) .057

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
