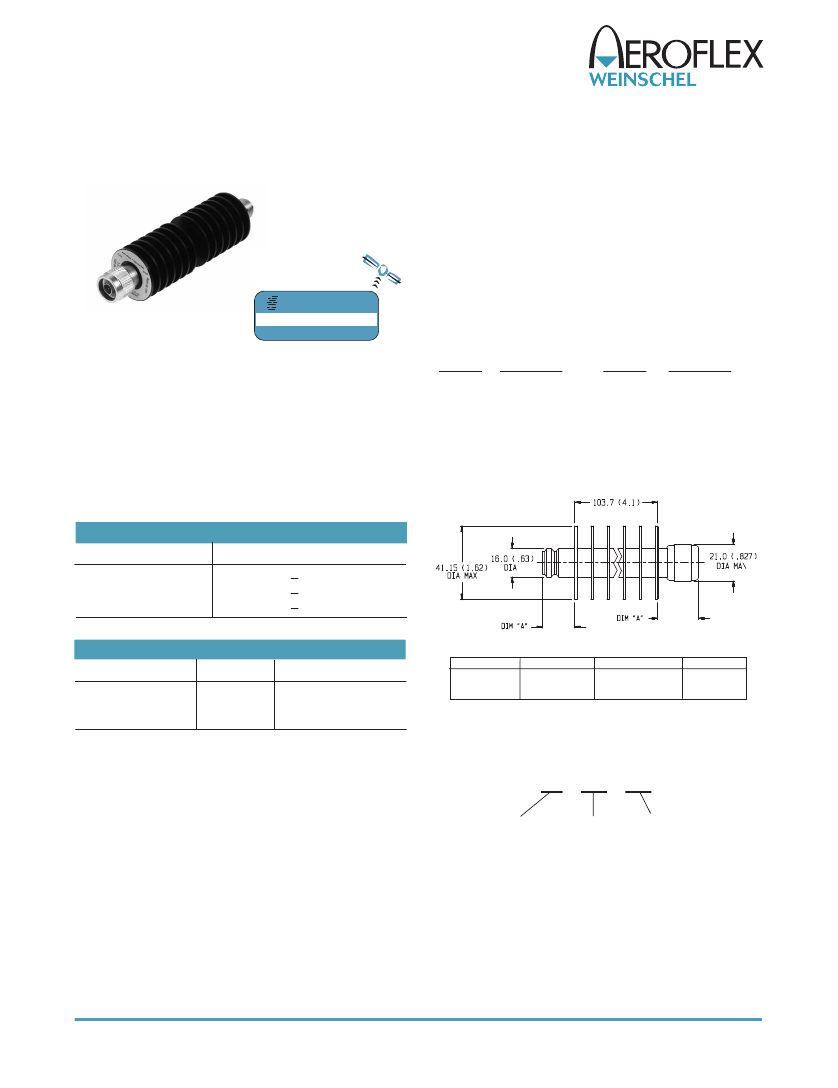

Fixed Coaxial Attenuators
Model 47
Medium Power, N or 3.5mm Connectors
dc to 18.0 GHz
50 Watts
RoHS
TEST DATA:
Swept data plots of attenuation and SWR
from 50 MHz to 18 GHz.
www.argosysales.com
800-542-4457
EXPRESS
CONNECTORS:
Type N connectors per MIL-STD-348
interface dimensions - mate nondestructively with MIL-C-
39012 connectors.
3.5mm Connectors - mate nondestructively with SMA per
MIL-C-39012, 2.92mm and other 3.5mm connectors.
Options
Description
Options Description
1
3.5mm Female
3
Type N Female
2
3.5mm Male
4
Type N Male
CONSTRUCTION:
Black, finned aluminum body, stainless
steel connectors with gold plated beryllium copper contacts.
WEIGHT:
175 g (6 oz.) maximum
PHYSICAL DIMENSIONS:
Features
o
o
Designed to meet environmental requirements of
MIL-DTL-3933.
Rugged injection molded connectors.
Specifications
NOMINAL IMPEDANCE:
50
Ω
FREQUENCY RANGE:
dc to 18.0 GHz
MAXIMUM DEVIATION OVER FREQUENCY:
Nominal ATTN (dB)
3, 6
10, 20
30, 40
Deviation (dB)
+ 0.75
+ 0.75
+ 1.00
MAXIMUM SWR:
Frequency (GHz)
dc - 8
8 -12.4
12.4 - 18
3, 6 dB
1.25
1.35
1.45
10, 20, 30, 40 dB
1.20
1.25
1.35
Connector
N Male
N Female
DIM A
24.1 (0.95)
19.0 (0.75)
Connector
3.5mm Female
3.5mm Male
DIM A
14.0 (0.55)
13.2 (0.52)
NOTE: All dimensions are given in mm (inches) and are maximum,
unless otherwise specified.
POWER RATING (mounted horizontally):
50 watts
average (unidirectional)
to 25°C ambient temperature,
derated linearly to 5 watts @ 125°C. Note: 3 dB model can
handle 100 Watts
average (unidirectional).
1 kilowatt
peak
(5
μsec
pulse width; 2.5% duty cycle). Maximum
power rating into output port is 10 Watts average.
POWER COEFFICIENT:
<0.0003 dB/dB/watt
TEMPERATURE COEFFICIENT:
<0.0004 dB/dB/°C
TEMPERATURE RANGE:
-55°C to 125°C
MODEL NUMBER DESCRIPTION:
Example:
47 - XX - XX
Basic
Model
Number
Attenuation
Value (dB)
Connector Options
1st digit is input side
2nd digit is output side
57
5305 Spectrum Drive, Frederick, MD 21703-7362
s
TEL: 301-846-9222, 800-638-2048
s
Fax: 301-846-9116
web: www.aeroflex.com/weinschel
s
email: weinschel-sales@aeroflex.com
Revision Date: 9/30/2012
