5430-2-04-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5430-2-04-1

Preview

5430-2-04-1: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5430-2-04-1 Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Locking, Receptacle

5430-2-04-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307312803
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.276 inch
body length	0.276 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	5430
Plug contact pitch	0.1 inch
Match contact row spacing	0.059 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	4

Preview

Download Datasheet

View All

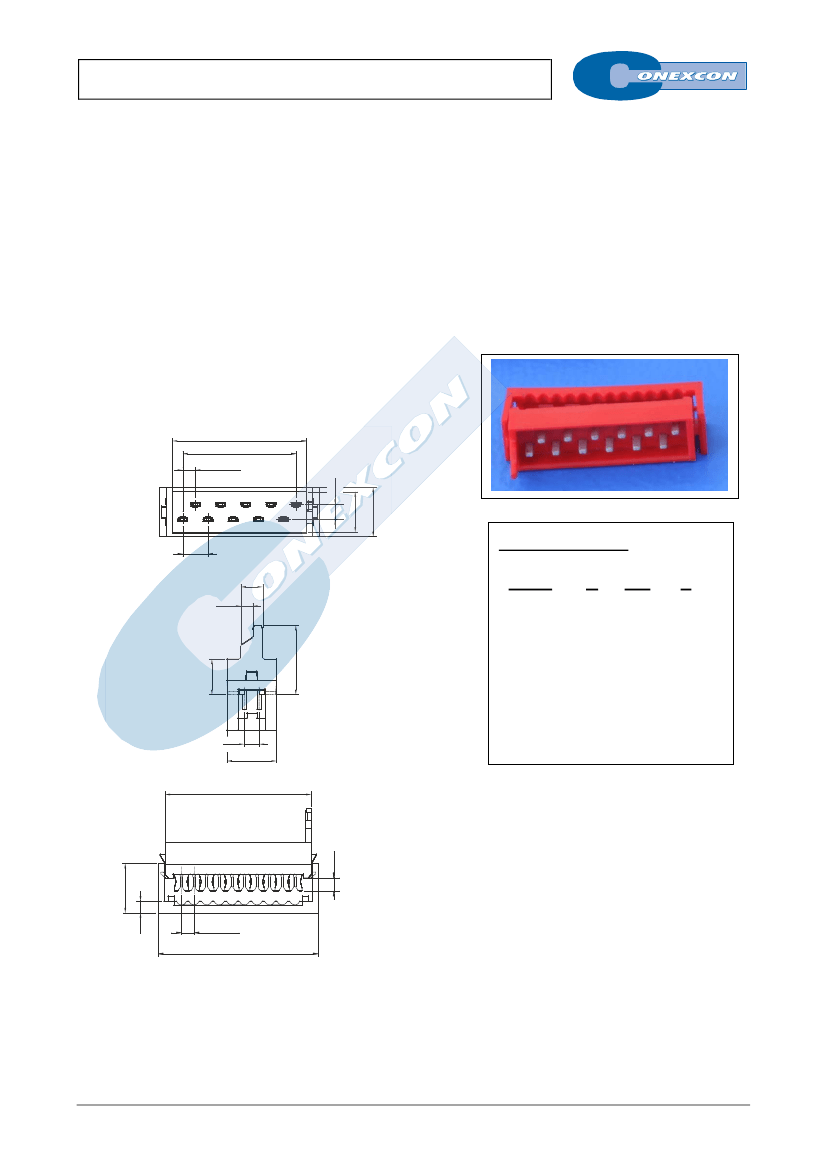

DUAL ROW IDC MALE CONNECTOR

5430 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch.

General Features

Electrical Features



Available in 4 through 26 circuits

Mates with 2.54 mm. PCB connectors 5431, 5432

and 5434 series

Allows connections cable to PCB



Voltage rating: < 230V

Current rating: < 1.50 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features

Cable retention force: > 1.00 Kgf per contact

Durability: 25 Cycles



Insulator: glass filled polyester UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant

Dimension Information

C±0.20

A±0.10

1.27±0.05

.050±0.02

1.50

.059

4.10

.161

5.0

.197

2.54

.100

2.20

.087

1.2

.047

Ordering Information:

5430 -

1

T-

2

XX-

3

1

4

7.0

.276

1. Connector Series

2. (T) Contact Plating

3.60

.142



1.50

.059

5.0

.197

B±0.30

T =

2.

Tin plated

3. (XX) Number of circuits



Available in 4 through 26 circuits

Dimensions:

A

= 1.27 x (XX-1)

B

= 1.27 x (XX)+2.03

C

= 1.27 x (XX)+0.83

D

= 1.27 x (XX)+3.43

(XX) = Number of circuits

1.20

.047

1.27 ± 0.05

.050 ± .002

D± 0.3

A-XX

5.0

.197

1.35

.053
