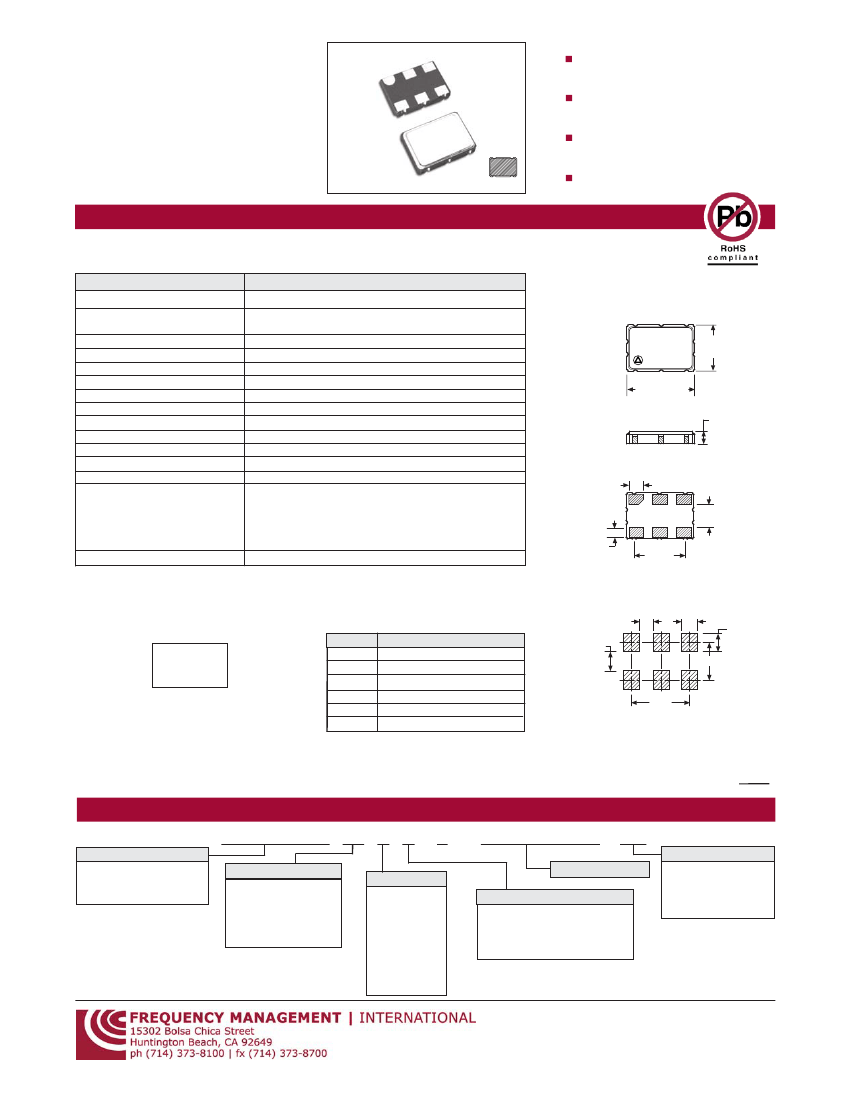

FMOLVPC3S
3.3 Vdc Clock Oscillators
SERIES
Miniature, Low Profile
3.3 Vdc Supply Voltage
LV PECL
Low Current Consumption
Actual Size
CERAMIC SMD 5x7
SPECIFICATIONS
08 - Issue 2 - 091508
Parameter
Frequency Range
Overall Frequency Tolerance
Operating Temperature Range
Storage Temperature
Supply Voltage (Vdd)
Supply Current (Icc)
Phase Jitter
Symmetry (Duty Cycle)
Output “1” Level (V
cc
)
Output “0” Level (V
cc
)
Rise and Fall Time
Start Time
Output Load
Pin 1 Options
(See Spec. Option
T
below)
Specification
10.000 to 250.000 MHz
±20 ppm to ±100 ppm
(Inclusive of Operating Temp., Supply Voltage, & Load)
0 to +70°C Std., -40 to +85°C Avail.
-55 to +125°C
+3.3 Vdc (±0.3 Vdc)
90 mA max. at 250 MHz
3 pS RMS max. | Condition: 12 kHz to 20 MHz
40/60% Std., 45/55% Avail. (See Spec. Option S)
Vcc - 1.025 V min.
Vcc - 1.620 V min.
0.55 ns max. (20 to 80%)
10 ms max. < 5 ms typical
50 ohms max. (Vcc - 2.0V)
No Connect (Std.)
Tri-State (option
T)
VIH: 2.2 V or Open Enables Output
VIL: 0.8 V Disables Output
Output Disable/Enable Time: 100 nS max.
CERAMIC 5x7 SMD
6
5
4
0.197
±0.008
(5.0
±0.2)
1
2
3
0.276
±0.008
(7.0
±0.2)
0.75
(1.90)
MAX
Side View
0.055
(1.40)
TYP
1
2
3
0.102
(2.60) TYP
5
0.200
(5.08)
TYP
4
Aging @ 25°C
±5ppm max first year
0.047
(1.10)
TYP
6
All specifications subject to change without notice.
Bottom View
PIN FUNCTION TABLE
STANDARD MARKING
XXX.XXXM
XXXXXXX
• FMI YYWW
XXX.XXXM FREQUENCY in MHz
XXXXXXX Part Number
Pin 1 Symbol, FMI, Date Code
0.94
2.40
1.60
1.50
Pin
1
2
3
4
5
6
Function
Tri-state Enable/Disable
NC or Tri-State
Ground (Case)
Output
Diff. Output
Supply Voltage (Vdd)
3.90
5.08
Soldering Position
Standard Specifications for product indicated in
color
Dimensions:
Inches
(mm)
PART DESCRIPTION SYSTEM
Product Family
LV PECL
3.3 Vdc Clock Osc.
Ceramic SMD
MARKING: See Page 52, Format A
FMOLVPC3S 00 A S / T - XX.XXXXXXM - CM
Overall
20
25
50
00
nn
Frequency Tol.
±20 ppm
±25 ppm
±50 ppm
±100 ppm
±Custom Value
Frequency (MHz)
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J
0 to 50 °C
X Custom
Specification Options
S - Tight Symmetry
(45/55%) Duty Cycle
T - Tri-State
BLANK - None Required (Std.)
Options
TR - Tape and Reel
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
1-800-800-XTAL
[9825]
www.fmi-inc.com
37
