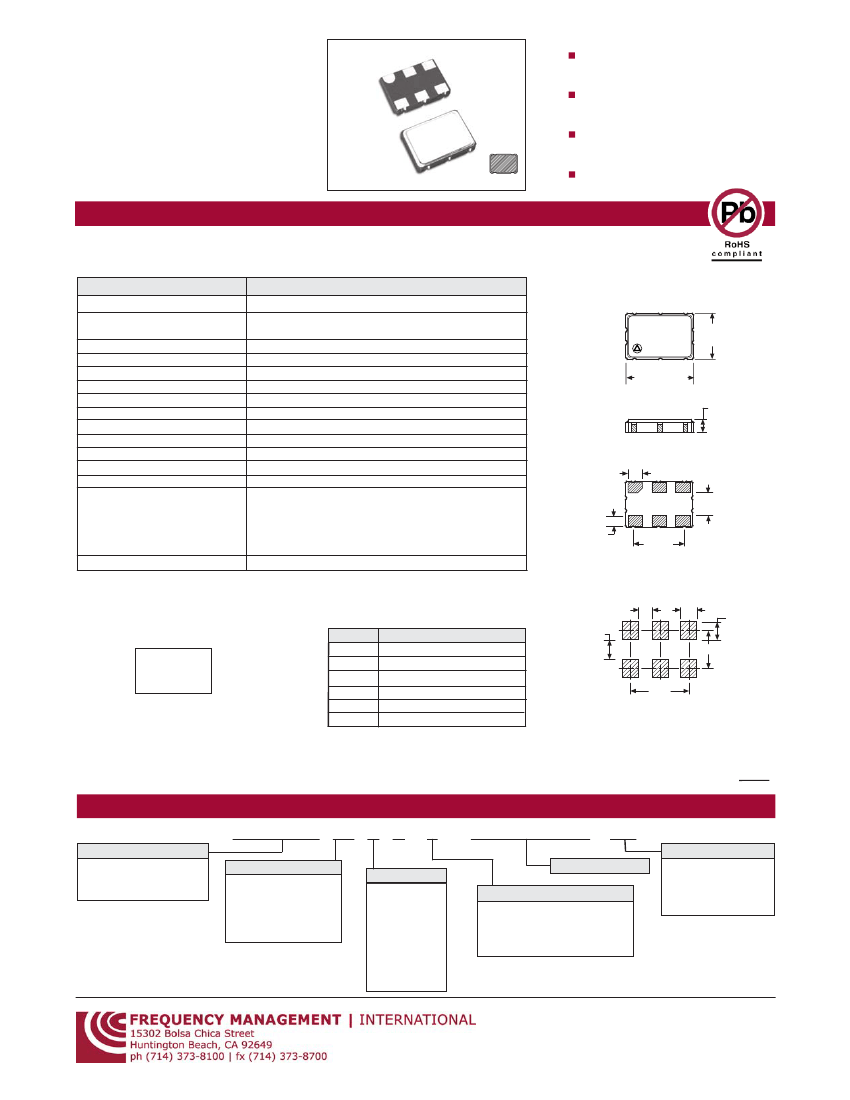

FMOPC5S
SERIES
5.0 Vdc Clock Oscillators
Miniature, Low Profile
5.0 Vdc Supply Voltage
PECL
10 to 250 MHz
Actual Size
CERAMIC SMD 5x7
SPECIFICATIONS
08 - Issue 2 - 091508
Parameter
Frequency Range
Overall Frequency Tolerance
Operating Temperature Range
Storage Temperature
Supply Voltage (Vdd)
Supply Current (Icc)
Phase Jitter
Symmetry (Duty Cycle)
Output “1” Level (Vcc)
Output “0” Level (Vcc)
Rise and Fall Time
Start Time
Output Load
Pin 1 Options
(See Spec. Option T below)
Specification
10.000 to 250.000 MHz
±20 ppm to ±100 ppm
(Inclusive of Operating Temp., Supply Voltage, & Load)
0 to +70°C Std., -40 to +85°C Avail.
-55 to +125°C
+5.0 Vdc (±0.3 Vdc)
90 mA max. at 250 MHz
3 pS RMS max. | Condition: 12 kHz to 20 MHz
40/60% Std., 45/55% Avail. (See Spec. Option S)
Vcc - 1.025 V min.
Vcc - 1.620 V min.
0.55 ns max. (20 to 80%)
10 ms max. < 5 ms typical
50 ohms max. (Vcc - 2.0V)
No Connect (Std.)
Tri-State (option T)
VIH: 2.2 V or Open Enables Output
VIL: 0.8 V Disables Output
Output Disable/Enable Time: 100 nS max.
±5ppm max first year
CERAMIC SMD
6
5
4
0.197
±0.008
(5.0
±0.2)
1
2
3
0.276
±0.008
(7.0
±0.2)
0.75
(1.90)
MAX
Side View
0.055
(1.40)
TYP
1
2
3
0.102
(2.60) TYP
5
0.200
(5.08)
TYP
4
0.047
(1.10)
TYP
6
Aging @ 25°C
All specifications subject to change without notice.
Bottom View
0.94
2.40
3.90
1.60
1.50
PIN FUNCTION TABLE
STANDARD MARKING
XXX.XXXM
XXXXXXX
• FMI YYWW
XXX.XXXM FREQUENCY in MHz
XXXXXXX Part Number
Pin 1 Symbol, FMI, Date Code
Pin
1
2
3
4
5
6
Function
Tri-state Enable/Disable
NC or Tri-State
Ground (Case)
Output
Diff. Output
Supply Voltage (Vdd)
5.08
Soldering Position
Standard Specifications for product indicated in
color
Dimensions:
Inches
(mm)
PART DESCRIPTION SYSTEM
Product Family
PECL
5.0 Vdc Clock Osc.
Ceramic SMD
MARKING: See Page 52, Format A
FMOPC5S 00 A S / T - XX.XXXXXXM - CM
Frequency (MHz)
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J
0 to 50 °C
X Custom
Specification Options
S - Tight Symmetry
(45/55%) Duty Cycle
T - Tri-State
BLANK - None Required (Std.)
Options
TR - Tape and Reel
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
Overall Frequency Tol.
20
± 20 ppm
25
± 25 ppm
50
± 50 ppm
00
± 100 ppm
nn
± Custom Value
1-800-800-XTAL
[9825]
www.fmi-inc.com
