23_N-50-0-1/133_NX

Description
RF N Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Jack, ROHS COMPLIANT
CategoryThe connector    The connector
File Size48KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

23_N-50-0-1/133_NX Overview

RF N Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Jack, ROHS COMPLIANT

23_N-50-0-1/133_NX Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresSTANDARDS: IEC 60169-16; MIL-STD-348A/304
subject depth0.657 inch
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF N CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Contact styleCOAX
Coupling typeTHREADED
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceYES
insulator materialPFA/PTFE
JESD-609 codee4
MIL complianceYES
Manufacturer's serial numberN
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typePANEL
Number of ports1
Maximum operating frequency11 GHz
Maximum operating temperature165 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
Panel mountingYES
reliabilityCOMMERCIAL
Shell surfaceGOLD OVER NICKEL
Shell materialBRASS
Terminal length0.236 inch
Termination typeSOLDER LUG
Total number of contacts1
Base Number Matches1
HUBER+SUHNER
®
DATA SHEET

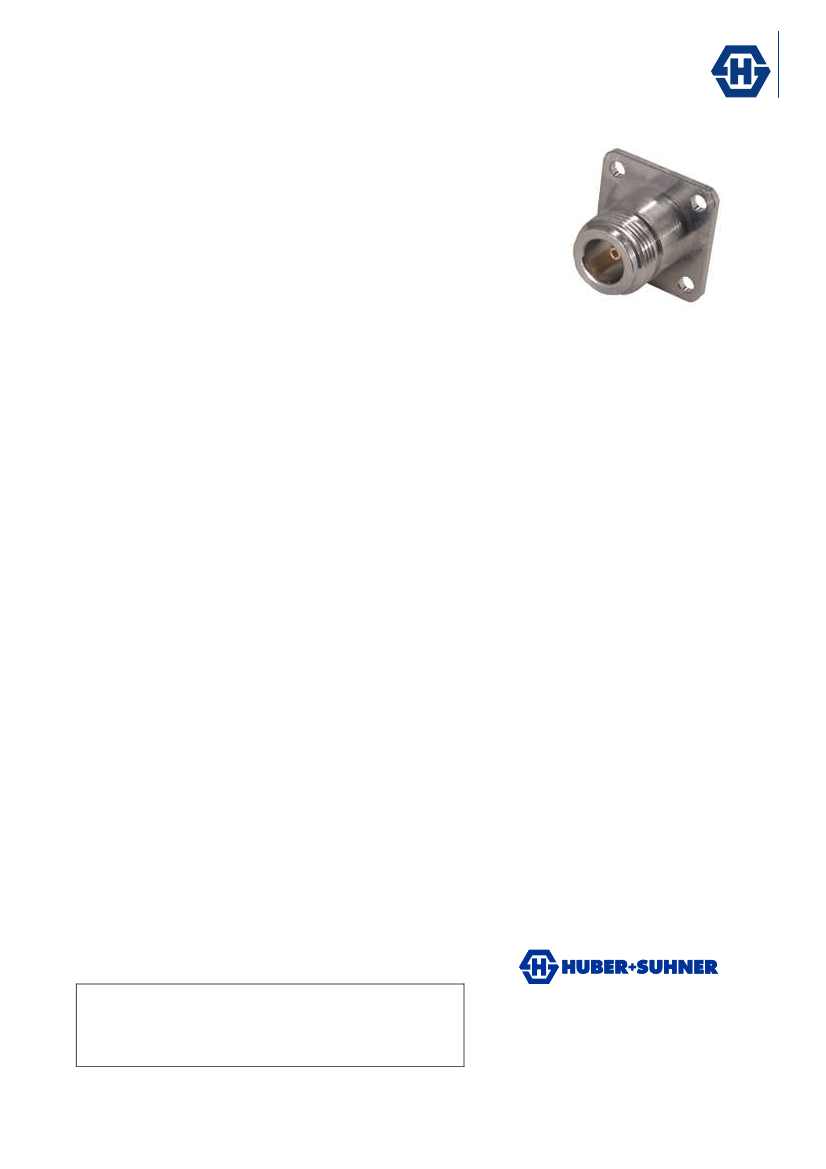

Coaxial Panel Connector: 23_N-50-0-1/133_N
Description
Rev.: B
Straight panel receptacle jack, flange mount
Interface standards
IEC 61169-16_MIL-STD-348A/304_CECC 22210
Technical Data
Electrical Data
Impedance
Interface frequency max.
50
11 GHz
0.0301 kg
-65 °C to 165 °C
compliant
Material
Bronze
Brass
Brass
PFA / PTFE
DOU-00010382
DCA-00010384
DOU-00010096
23_N-50-0-1/133_NX
23_N-50-0-1/133_NE
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Mechanical Data
Weight
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material Data
Related Documents
Outline drawing
Catalogue drawing
Mounting hole
Ordering Information
Bulk 150 pcs package
Single package
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
Uncontrolled Copy
Page 1/1
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000187686 K
Issued: 16.03.07
