CFS206-32.768KHZFB: Descriptioncrystal 32.768khz 12.5pf thru; CategoryPassive components; File Size66KB，1 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html; Environmental Compliance

Download Datasheet Parametric View All

CFS206-32.768KHZFB Overview

crystal 32.768khz 12.5pf thru

CFS206-32.768KHZFB Parametric

Parameter Name	Attribute value
Datasheets
CFS206,145, CFV206
KHz Crystal Part Number Guide
Product Photos
CFS206 Series
Catalog Drawings
CF(S,V)2O6 Series
PCN Design/Specificati
CFS206,CFV206 Series
PCN Othe
CFS-206,CFV-206 Series Sep/2013
Standard Package	1,000
Category	Crystals and Oscillators
Family	Crystals
Packaging	Bulk
Type	kHz Crystal (Tuning Fork)
Frequency	32.768kHz
Frequency Stability	-
Frequency Tolerance	±5ppm
Load Capacitance	12.5pF
ESR (Equivalent Series Resistance)	35 kOhm
Operating Mode	Fundamental
Operating Temperature	-20°C ~ 70°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Cylindrical Can, Radial
Size / Dimensi	0.075" Dia (1.90mm)
Heigh	0.244" (6.20mm)
Dynamic Catalog	CFS206 Series
Other Names	300-8763CFS206-32.768KHZF-UBCFS20632.768KHZFUB

Preview

Download Datasheet

View All

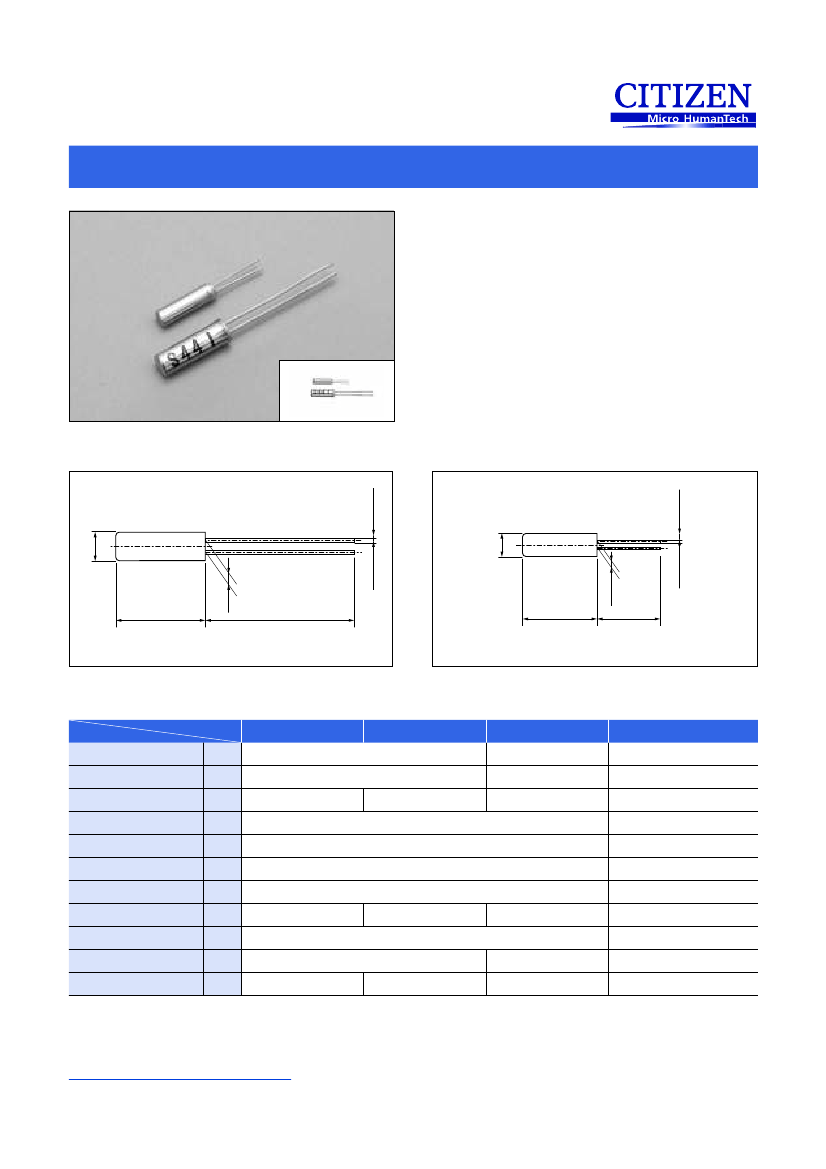

TUNING FORK CRYSTAL UNITS

(Cylinder Type)

RoHS compliant / Pb free

CFS-206

.

CFS-145

.

CFV-206

■

FEATURES

7Best

suited for portable devices with low current

consumption.

7For

a clock source in digital equipment.

Life-size

■

DIMENSION [mm]

ø0.26±0.05

ø0.2±0.05

5.0±0.1

0.45±0.08

10.0±0.2

4.3±0.3

ø2.0±0.1

6.0±0.2

CFS-206, CFV-206

0.7±0.2

ø1.4±0.1

CFS-145

■

STANDARD SPECIFICATIONS

Item

Nominal Frequency

Frequency Tolerance

Load capacitance

Operating Temperature Range

Storage Temperature Range

Turnover Temperature

Temperature Coefficient

Motional (series) resistance

Level of drive

Aging (first year)

Shunt capacitance

Model

CFS-206

32.768kHz

±20ppm

12.5pF

CFS-145

CFV-206

30kHz∼100kHz

±30ppm

Conditions

Need to contact us for

the available frequency in CFV-206

f

0

△

f/f

0

at

25˚C

Need to specify your requirement

C

L

T

OPR

T

STR

T

M

β

R

1

D

L

△

f/f

0

8.0pF

−

20℃∼

＋

70℃

−

40℃∼

＋

85℃

12.5pF

25℃±5℃

−

0.034±0.006ppm/℃

2

35KΩMax.

40KΩMax.

1μW Max.

50KΩMax.

at

25˚C

±3ppm Max.

1.35pF Typ.

1.00pF Typ.

±5ppm Max.

0.8∼1.7pF Typ.

25℃±3℃

Depend on frequency

C

0

http://cfm.citizen.co.jp/english/product/pr02.html

Recommended Resources

audio signal encoder circuit

Single phase circuit thermostat circuit

Macro YP5-4A range hood circuit diagram

Flow system and circuit diagram of a simple gas chromatograph

LA4550 power amplifier circuit

Schematic diagram of microcomputer low-frequency electrotherapy instrument
