VC30R2E153K-BS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> VC30R2E153K-BS

VC30R2E153K-BS: DescriptionCeramic Capacitor, Multilayer, Ceramic, 250V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.015uF, 1206,; CategoryPassive components capacitor; File Size50KB，1 Pages; ManufacturerMaruwa

Download Datasheet Parametric View All

VC30R2E153K-BS Overview

Ceramic Capacitor, Multilayer, Ceramic, 250V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.015uF, 1206,

VC30R2E153K-BS Parametric

Parameter Name	Attribute value
Objectid	817258055
package instruction	, 1206
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.015 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	VC40,VC70,VC80 Available for Reflow
dielectric materials	CERAMIC
high	1.25 mm
length	3.2 mm
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	Bulk, TR
positive tolerance	10%
Rated (DC) voltage (URdc)	250 V
series	VC(250 VOLT)
size code	1206
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
width	1.6 mm

Preview

Download Datasheet

View All

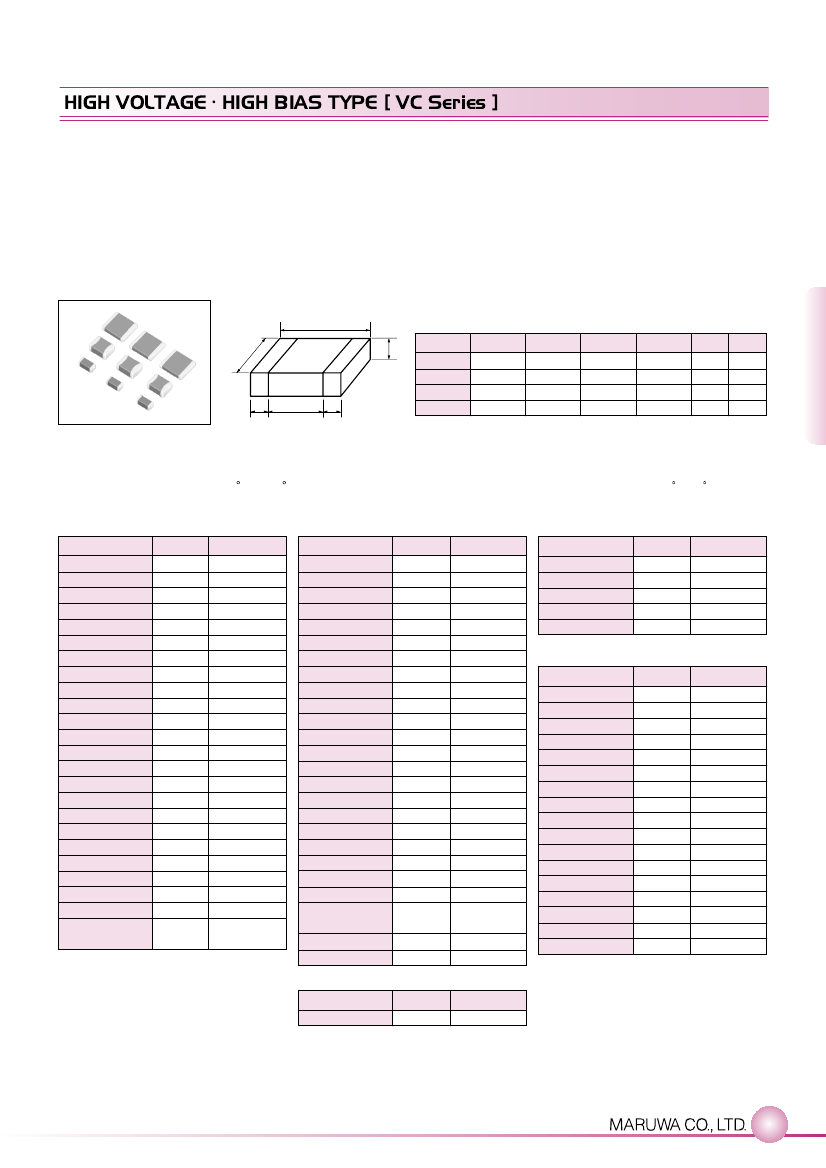

HIGH VOLTAGE ¥ HIGH BIAS TYPE [ VC Series ]

Features

• Very little drop in capacitance value when a DC voltage bias is applied.

• High capacitance in small size.

• The piezo-electric characteristics are small.

MARUWA

GENERAL CATALOG

Applications

• Snubber circuit of switching power supply and DC/DC converter, modem, PDP.

Unit : mm

Type

VC30

VC40

VC70

VC80

EIA symbol

1206

1210

1812

2220

3.2

4.5

5.7

0.2

0.3

0.4

1.6

2.5

3.2

5.0

0.2

0.3

0.4

1.80 max

2.20 max

2.50 max

L1, L2

0.2~

0.3~

0.4~

1.0~

2.0~

List of products in KC Series

Temperature characteristics : R(–55

C +125

Capacitance tolerance

: K( 10%)

Rated Voltage : 630VDC

Part Number

VC30R2J101K-

VC30R2J151K-

VC30R2J221K-

VC30R2J331K-

VC30R2J471K-

VC30R2J681K-

VC30R2J102K-

VC30R2J152K-

VC30R2J222K-

VC30R2J332K-

VC30R2J472K-

VC30R2J682K-

VC30R2J103K-

VC40R2J682K-

VC40R2J103K-

VC40R2J153K-

VC40R2J223K-

VC70R2J153K-

VC70R2J223K-

VC70R2J333K-

VC70R2J473K-

VC80R2J473K-

VC80R2J683K-

Capacitance

( F)

Product height T(mm)

100

150

220

330

470

680

1,000

1,500

2,200

3,300

4,700

6,800

10,000

6,800

10,000

15,000

22,000

15,000

22,000

33,000

47,000

68,000

100,000

(0.1 F)

1.00+0 / -0.25

1.25+0 / -0.3

1.80+0 / -0.4

1.00+0 / -0.25

1.25+0 / -0.3

1.70+0 / -0.4

1.00+0 / -0.25

1.25+0 / -0.3

1.70+0 / -0.4

1.25+0 / -0.3

1.70+0 / -0.4

2.20+0 / -0.5

15%)

Temperature Characteristics : E(–25

C +85

C, +20% –55%)

Tolerance for capacitance : M( 20%)

Rated Voltage : 250VDC

Part Number

VC30R2E101K-

VC30R2E151K-

VC30R2E221K-

VC30R2E331K-

VC30R2E471K-

VC30R2E681K-

VC30R2E102K-

VC30R2E152K-

VC30R2E222K-

VC30R2E332K-

VC30R2E472K-

VC30R2E682K-

VC30R2E103K-

VC30R2E153K-

VC30R2E223K-

VC30R2E273K-

VC30R2E333K-

VC40R2E223K-

VC40R2E333K-

VC40R2E473K-

VC70R2E473K-

VC70R2E683K-

Capacitance

( F)

Product height T(mm)

100

150

220

330

470

680

1,000

1,500

2,200

3,300

4,700

6,800

10,000

15,000

22,000

27,000

33,000

22,000

33,000

47,000

68,000

100,000

(0.1 F)

150,000

220,000

1.00+0 / -0.25

1.25+0 / -0.3

1.80+0 / -0.4

1.25+0 / -0.3

1.70+0 / -0.4

1.25+0 / -0.3

1.70+0 / -0.4

Rated Voltage : 250VDC

Part Number

VC70E2E224M-

VC70E2E334M-

VC70E2E474M-

VC80E2E474M-

VC80E2E684M-

Capacitance

( F)

Product height T(mm)

0.22

0.33

0.47

0.68

1.70+0 / -0.4

2.20+0 / -0.5

2.50+0 / -0.6

1.70+0 / -0.4

2.20+0 / -0.5

Rated Voltage : 100VDC

Part Number

VC30E2A104M-

VC30E2A154M-

VC30E2A224M-

VC30E2A334M-

VC40E2A224M-

VC40E2A334M-

VC40E2A474M-

VC40E2A684M-

VC40E2A105M-

VC70E2A474M-

VC70E2A684M-

VC70E2A105M-

VC70E2A155M-

VC70E2A225M-

VC80E2A155M-

VC80E2A225M-

VC80E2A335M-

Capacitance

( F)

Product height T(mm)

0.1

0.15

0.22

0.33

0.22

0.33

0.47

0.68

0.47

0.68

1.5

2.2

1.5

2.2

3.3

1.00+0 / -0.25

1.25+0 / -0.3

1.80+0 / -0.4

1.00+0 / -0.25

1.25+0 / -0.3

1.70+0 / -0.4

2.20+0 / -0.5

1.00+0 / -0.25

1.25+0 / -0.3

1.70+0 / -0.4

2.20+0 / -0.5

2.50+0 / -0.6

1.25+0 / -0.3

1.70+0 / -0.4

2.50+0 / -0.6

VC70R2E104K- R

VC80R2E154K- R

VC80R2E224K- R

VC80R2J104K- S

Rated Voltage : 100VDC

Part Number

VC70R2A474K- R

Capacitance

( F)

Product height T(mm)

470,000

1.70+0 / -0.4

Specify the taped product (T) or bulk product (B) for .

Highly reliable Ni-barrier terminations show excellent flexion and temperature cycling.

Please consult us regarding Ag/Pd terminations, conventional barrier for high temperature reflow soldering.

VC40, VC70, VC80 types are available for reflow soldering only.

Please consult us regarding non-surface discharge parts.

Specify the taped product (T) or bulk product (B) for .

Highly reliable Ni-barrier terminations show excellent

flexion and temperature cycling.

Please consult us regarding Ag/Pd terminations,

conventional barrier.

VC40, VC70, VC80 types are available for reflow

soldering. Please consult us when flow soldering is used.

CERAMIC CAPACITORS

Dimensions
