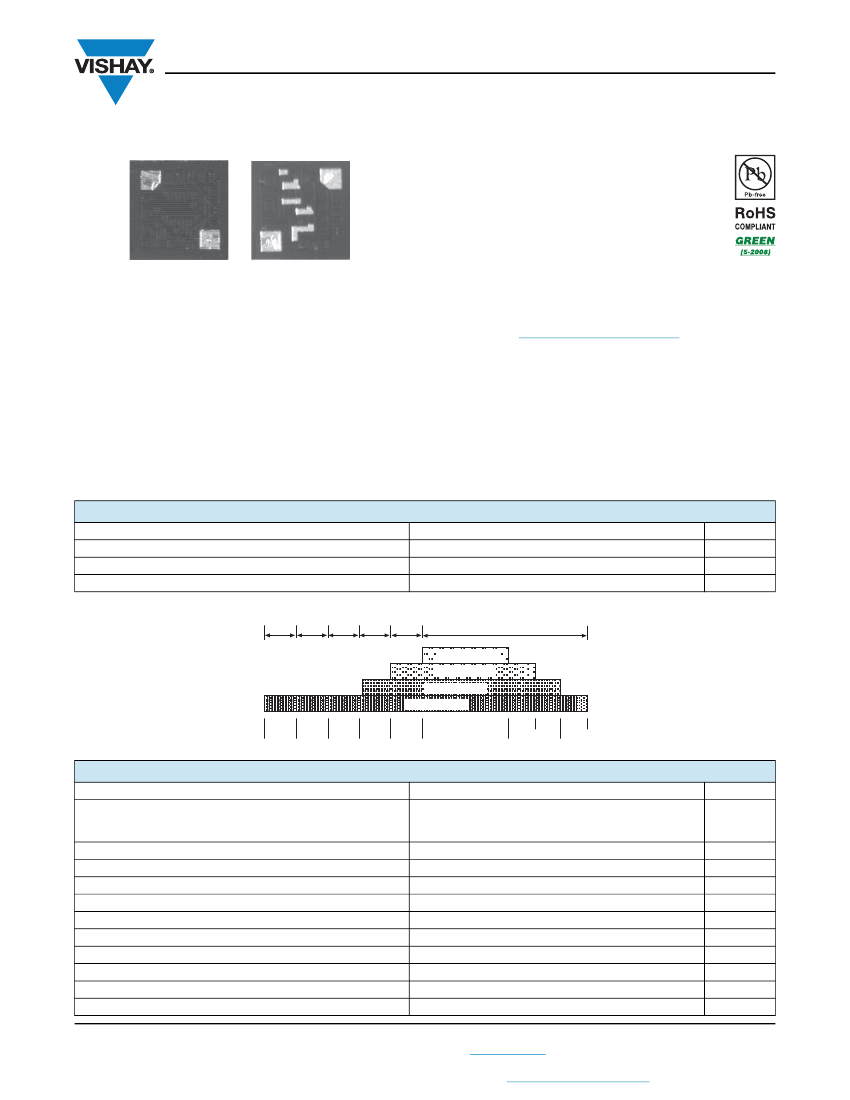

BCR
www.vishay.com
Vishay Electro-Films
Thin Film, Back-Contact Resistor
FEATURES
•
•
•
•
•
Product may not be to scale
The Back Contact Resistor (BCR) series single-value
back-contact resistor chip is one of the smallest chips
available.
The BCR requires only one wire bond thus saving hybrid
space.
The BCRs are manufactured using Vishay Electro-Films
(EFI) sophisticated thin film equipment and manufacturing
technology. The BCRs are 100 % electrically tested and
visually inspected to MIL-STD-883, method 2032 class H
or K.
•
•
•
•
Wire bondable
Only one wire bond required
Small size: 0.020 inches square
Resistance range: 10
to 1 M
Oxidized silicon substrate for good power
dissipation
Resistor material: Tantalum nitride, self-passivating
Moisture resistant
Case size: 0202
Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
Vishay EFI BCR resistor chips are widely used in hybrid
packages where space is limited. The bottom connection is
made by attaching the back of the chip to the substrate
either eutectically or with conductive epoxy. The single wire
bond is made to the notched pad on the top of the chip. (The
other rectangular pad on the top of the chip is a via hole, a
low-ohmic contact connecting the resistor to the bottom of
the chip.)
TEMPERATURE COEFFICIENT OF RESISTANCE, VALUES, AND TOLERANCES
PARAMETER
Total Resistance Range
Standard Tolerances
TCR
VALUE
10 to 1M
± 0.1, ± 0.2, ± 0.5, ± 1, ± 2, ± 5
± 25, ± 50, ± 100, ± 250
UNIT
%
ppm/°C
Tightest Standard Tolerance Available
5%
2%
1%
0.5 % 0.2 %
0.1 %
± 25 ppm/°C
± 50 ppm/°C
± 100 ppm/°C
± 250 ppm/°C
360 kΩ
1 MΩ
200 kΩ
620 kΩ
10
Ω
20
Ω
50
Ω
100
Ω
200
Ω
1 kΩ
STANDARD ELECTRICAL SPECIFICATIONS
PARAMETER
Noise, MIL-STD-202, Method 308
100
to 250 k
< 100
or > 251 k
Moisture resistance, MIL-STD-202, Method 106
Stability, 1000 h, + 125 °C, 125 mW
Operating Temperature Range
Thermal Shock, MIL-STD-202, Method 107, Test Condition F
High Temperature Exposure, + 150 °C, 100 h
Dielectric Voltage Breakdown
Insulation Resistance
Operating Voltage
DC Power Rating at + 70 °C (Derated to zero at + 175 °C)
5 x Rated Power Short-Time Overload, + 25 °C, 5 s
Revision: 25-Feb-13
VALUE
- 35 typ.
- 20 typ.
± 0.5 max.
R/R
± 1.0 max.
R/R
- 55 to + 125
± 0.25 max.
R/R
± 0.5 max.
R/R
200
10
12
min.
75 max.
0.250
± 0.25 max.
R/R
UNIT
dB
%
%
°C
%
%
V
V
W
%
Document Number: 61023
1
For technical questions, contact:
efi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BCR
www.vishay.com
DIMENSIONS
in inches
0.020
Vishay Electro-Films
0.020
0.016
TYPICAL RANGE
10
Ω
to 29
Ω
TYPICAL RANGE
30
Ω
to 81
Ω
TYPICAL RANGE
82
Ω
to 819
Ω
TYPICAL RANGE
820
Ω
to 1 MΩ
Note
• Notched shaded area represents top bonding pad. The backside of the chip constitutes the second resistor connection.
SCHEMATIC
Bond Pad
Back of Chip
MECHANICAL SPECIFICATIONS
PARAMETER
Chip Size
Chip Thickness
Chip Substrate Material
Resistor Material
Bonding Pad Size
Number of Pads
Pad Material
Backing
Recommended Attachment Method
VALUE
0.020" x 0.020" ± 0.002" (0.50 mm x 0.50 mm ± 0.05 mm)
0.010" ± 0.003" (0.253 mm ± 0.05 mm)
Oxidized silicon, 10 kÅ minimum SiO
2
Tantalum nitride, self-passivating
0.004" x 0.004" (0.100 mm x 0.100 mm)
1
10 kÅ minimum aluminum (15 kÅ minimum gold optional)
3 kÅ minimum gold
Eutectic or conductive epoxy
GLOBAL PART NUMBER INFORMATION
Global Part Number: BCR50000FKAHWS
Global Part Number Description: BCR 5K 1 %, 100 ppm/°C, Al term., Class H, WS
B
C
R
5
0
0
0
0
F
K
A
H
W
S
MODEL
BCR
20 x 20 size
back contact
resitor
RESISTANCE
First 4 digits are
significant figures
of resistance
RESISTANCE
MULTILPLIER
CODE
B
= 0.01
A
= 0.1
0
=1
1
= 10
2
= 100
3
= 1000
TOLERANCE
CODE
B
= 0.1 %
C
= 0.25 %
D
= 0.5 %
F
= 1.0 %
G
= 2.0 %
J
= 5.0 %
K
= 10 %
TCR
(ppm/°C)
E
= ± 25
C
= ± 50
K
= ± 100
M
= ± 250
R
= 0/- 250
VISUAL CLASS
TERMINATION (per MIL-STD-883,
Method 2032
G
= Gold
A
= Aluminum
H
= Class H
K
= Class K
PACKAGING
WS
= Waffle pack
100 min./mult.
Historical Part Number: WBCR02750000F (will continue to be accepted)
Revision: 25-Feb-13
Document Number: 61023
2
For technical questions, contact:
efi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
