CC24_ _020N
CN24_ _020N
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
Super Fast Recovery
Dual Diode Modules
20 Amperes/300-600 Volts
H
A
B
J
J
G
H
N - DIA.
R - M4 THD
(3 TYP.)
Q
J
(3 TYP.)
M
L
(2 TYP.)
C
D
Q
K
E
P
F
CN24_ _020N, CC24_ _020N
Super Fast Recovery
Dual Diode Modules
20 Amperes/300-600 Volts
Description:
Powerex Super Fast Recovery
Dual Diode Modules are designed
for use in applications requiring
high speed rectification or voltage
clamping in isolated packaging.
The modules are insulated for
easy mounting onto a common
heatsink with other components.
They consist of two diodes
connected in either a common
cathode (CC) or a common
anode (CN) configuration.
Features:
Isolated Mounting
Metal Baseplate
Low Thermal Impendance
CN—Common Anode Diode Module
CC—Common Cathode Diode Module
trr = 200ns, Maximum

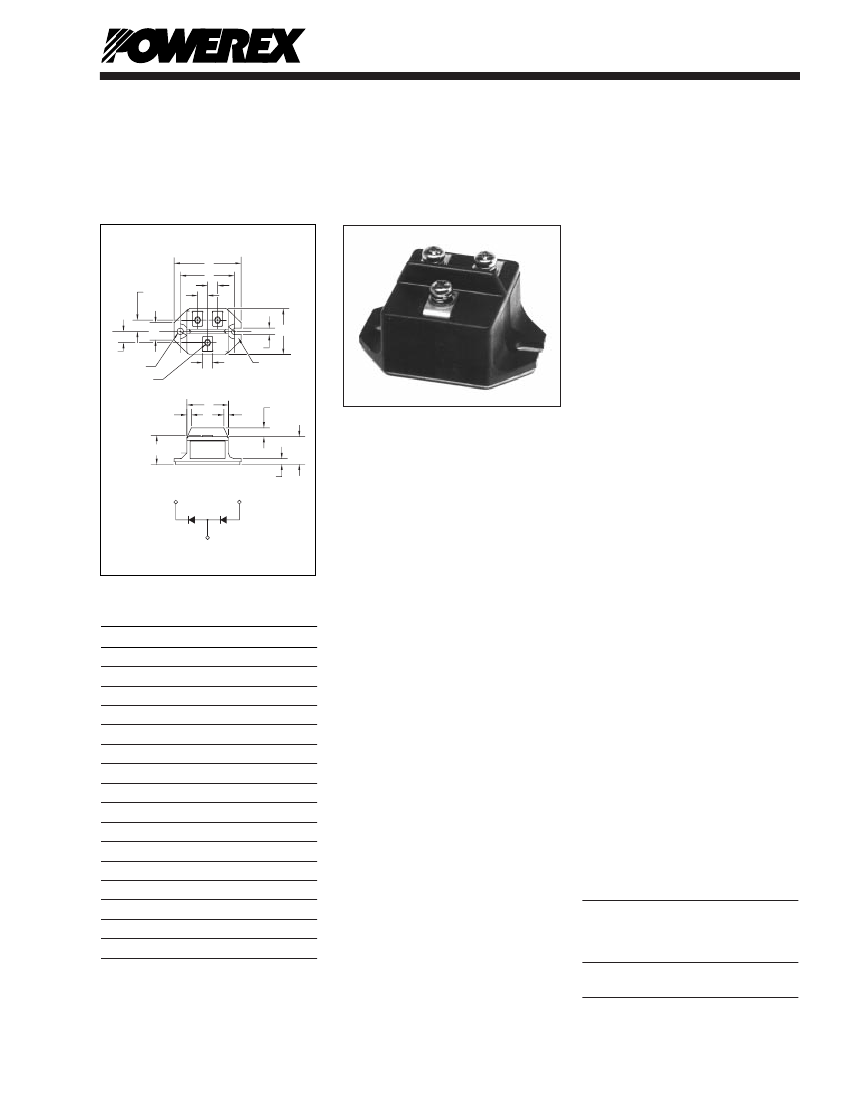

Outline Drawing
Dimension
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
Inches
2.106
1.705±0.008
1.437
1.299
0.925
0.866
0.551
0.354
0.315
0.276
0.236 R
0.209
0.209 Dia.
0.177
0.138
M4 Metric
Millimeters
53.5
43.3±0.2
36.5
33
23.5
22
14
9
8
7
R6
5.3
Dia. 5.3
4.5
3.5
M4
Applications:
Battery Supplies
Free Wheeling Diodes
Motor Control Inventers
UPS Inventers
Ordering Information:
Select the complete ten digit
module part number you desire
from the table below.
Example: CC2406020N is a
600 Volt, 20 Ampere, trr = 200ns
Common Cathode Super Fast
Recovery Diode Module.
Voltage
Volts
(x100)
03
06
Current
Rating
Amperes
(x10)
02
Current
Recovery
Time
(200ns)
ON
Type
CC24
CN24
D-41
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
CC24_ _020N, CN24_ _020N
Super Fast Recovery Dual Diode Modules
20 Amperes/300-600 Volts
Absolute Maximum Ratings
Characteristics
Peak Reverse Blocking Voltage
Transient Peak Reverse Blocking Voltage (Non-Repetitive), t < 5ms
DC Reverse Blocking Voltage
DC Current, TC = 90°C
Peak One-Cycle Surge (Non-Repetitive) On-State Current (60Hz)
Peak One-Cycle Surge (Non-Repetitive) On-State Current (50Hz)
I2t (for Fusing), 8.3 milliseconds
Storage Temperature
Operating Temperature
Maximum Mounting Torque M4 Mounting Screw
Maximum Mounting Torque M5 Terminal Screw
Module Weight (Typical)
V Isolation
Symbol
VRRM
VRSM
VR(DC)
IF(DC)
IFSM
IFSM
I2t
TSTG
Tj
—
—
—
VRMS
CC2403020N
CN2403020N
300
360
240
20
400
365
667
-40 to 125
-40 to 150
12
17
90
2500
CC2406020N
CN2406020N
600
720
480
20
400
365
667
-40 to 125
-40 to 150
12
17
90
2500
Units
Volts
Volts
Volts
Amperes
Amperes
Amperes
A2sec
°C
°C
in.-lb.
in.-lb.
Grams
Volts
Electrical and Thermal Characteristics,
Tj = 25°C unless otherwise specified
Characteristics
Blocking State Maximums
Reverse Leakage Current, Peak
Conducting State Maximums
Peak On-State Voltage
Switching Maximums
Reverse Recovery Time
Symbol
IRRM
VFM
trr
Test Conditions
Tj = 125°C, VRRM = Rated
IFM = 20A
IFM = 20A
di/dt = -50 A/ s, VR = 1/2 VRRM
Per Module
Per Module
CC24_ _020N/CN24_ _020N
10
2.5
200
Units
mA
Volts
ns
Thermal Maximums
Thermal Resistance, Junction-to-Case
Thermal Resistance, Case-to-Sink (Lubricated)
R (J-C)
R (C-S)
1.2
0.3
°C/Watt
°C/Watt
MAXIMUM
ON-STATE CHARACTERISTICS
MAXIMUM ALLOWABLE CASE TEMPERATURE, T
C
, (
o
C)
INSTANTANEOUS ON-STATE VOLTAGE, V
FM
, (VOLTS)
MAXIMUM
ALLOWABLE CASE TEMPERATURE
MAXIMUM POWER DISSIPATION, P
AV(MAX)
, (WATTS)
MAXIMUM
ON-STATE POWER DISSIPATION
4.2
T
j
= 25
o
C
150
140
130
120
110
100
90
80
70
60
50
40
0
4
8
12
16
20
24
28
32
AVERAGE ON-STATE CURRENT, I
F(AV)
,
(AMPERES)
250
OPERATION
DC
SINGLE-PHASE
THREE-PHASE
3.4
OPERATION
DC
SINGLE-PHASE
THREE-PHASE
200
150
2.6
100
1.8
RESISTIVE
INDUCTIVE
LOAD
50
RESISTIVE
INDUCTIVE
LOAD
1.0
10
0
10
1
10
2
10
3
INSTANTANEOUS ON-STATE CURRENT, I
FM
,
(AMPERES)
0
0
10
20
30
40
50
60
70
80
AVERAGE ON-STATE CURRENT, I
F(AV)
,
(AMPERES)
D-42
