ARS-02-LPG-42-GD30-SM datasheet, PDF

Datasheet> All Categories > The connector> The connector> ARS-02-LPG-42-GD30-SM

ARS-02-LPG-42-GD30-SM: DescriptionBoard Connector, 42 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

ARS-02-LPG-42-GD30-SM Overview

Board Connector, 42 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug

ARS-02-LPG-42-GD30-SM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166973702
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
YTEOL	9.1
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.2 inch
subject depth	0.14 inch
body length	2.1 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYETHYLENE
Manufacturer's serial number	ARS-02-LPG
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.7912 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	42

Preview

Download Datasheet

View All

Pos.

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.58

38.10

40.64

43.18

45.72

48.26

50.80

53.34

Dimensions

B Pos.

10.16 46

12.70 48

15.24 50

17.78 52

20.32 54

22.86 56

25.40 58

27.94 60

30.48 62

33.02 64

35.58 66

38.10 68

40.64 70

43.18 72

45.72 74

48.26 76

50.80 78

53.34 80

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

101.6

SPECIFICATIONS

Current rating:

Contact material:

Contact resistance:

Insulator material:

Insulator resistance:

Withstanding:

Operating temperature:

3 amps

Phosphor bronze

20 milliohms max.

High temp. thermoplastic, UL94V-0

5,000 megohms min.

500VAC for 1 min.

-40°C to +105°C

RoHS compliant

Rev.

Description

Date

Approved

Series

Rows

Height

Positions

Plating

Options

ARS

LPG

Receptacle strip 02=dual row LPG=3.71mm 8 to 80

GD=Gold flash

GD30=30µ” gold SM=Surface mount

GD10=10µ” gold SG=Duplex (10µ”) CP=Centering peg

GD15=15µ” gold TN=Tin

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

ARS-02-LPG-XX-XX-SM

0.00 ± 0.20 Angles ± 3’

UNIT: mm

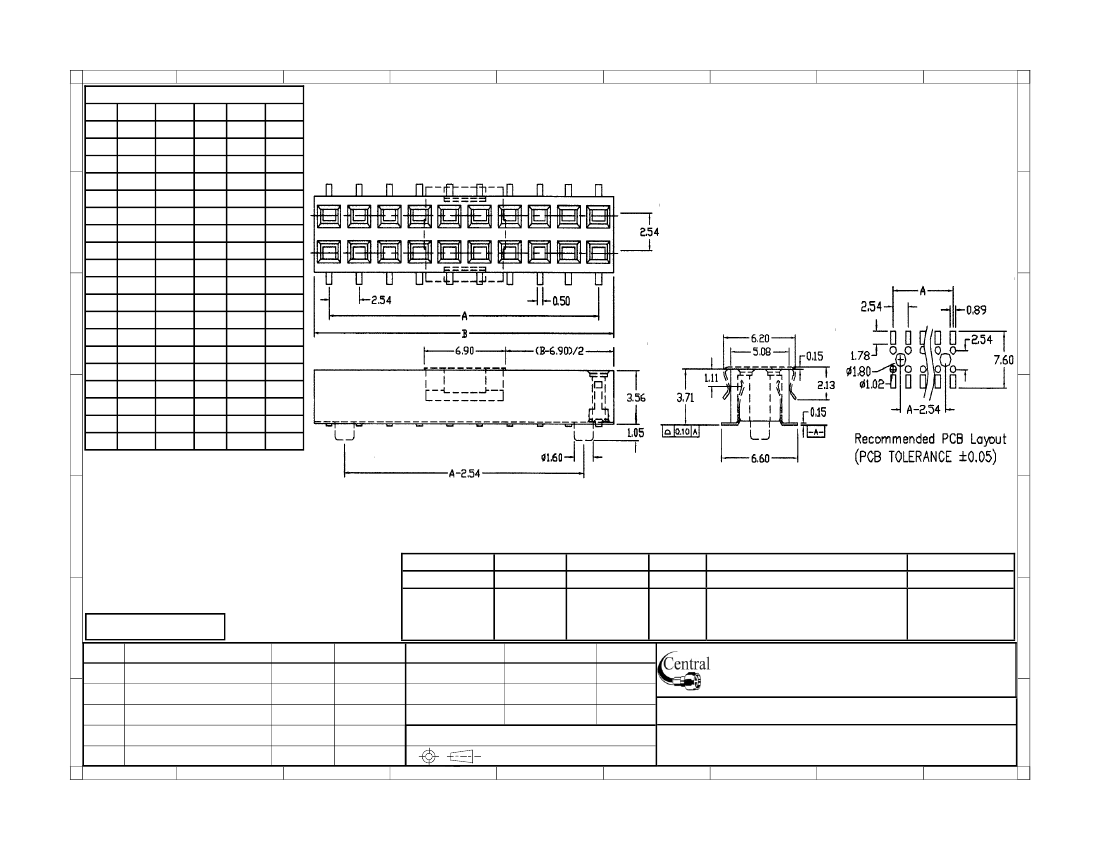

Description: Receptacle strip, surface mount, .100” pitch, 3.71mm

profile, centering peg
