2283B: Descriptionboard level heat sink; CategoryThermal management products; File Size237KB，3 Pages; ManufacturerAavid Thermalloy

Download Datasheet Parametric Compare View All

2283B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2283B	-	-	View	Buy Now

2283B Overview

board level heat sink

2283B Parametric

Parameter Name	Attribute value
Datasheets
Radial Fin Heatsinks
Product Training Modules
How to Select a Heat Sink
Standard Package	250
Category	Fans, Thermal Manageme
Family	Thermal - Heat Sinks
Type	Board Level
Package Cooled	BGA
Attachment Method	Thermal Tape, Adhesive (Not Included)
Shape	Square
Length	0.655" (16.64mm)
Width	0.655" (16.64mm)
Diamete	-
Height Off Base (Height of Fin)	0.265" (6.73mm)
Power Dissipation @ Temperature Rise	1W @ 40°C
Thermal Resistance @ Forced Air Flow	17.5°C/W @ 300 LFM
Thermal Resistance @ Natural	-
Material	Aluminum
Material Finish	Black Anodized
Other Names	034100

Preview

Download Datasheet

View All

Heat Sinks by Product - radial fin

Page 1 of 3

---Useful Links---

Products

BGA

Radial Fins

Search by part #

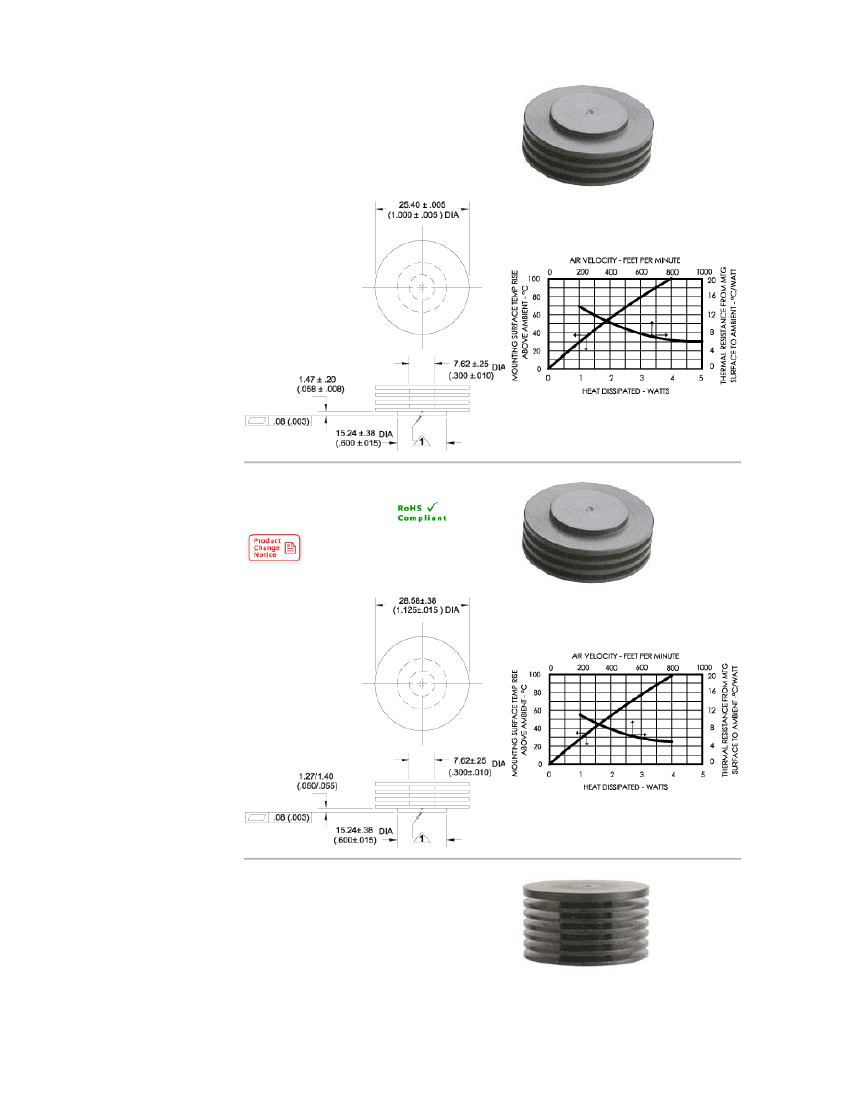

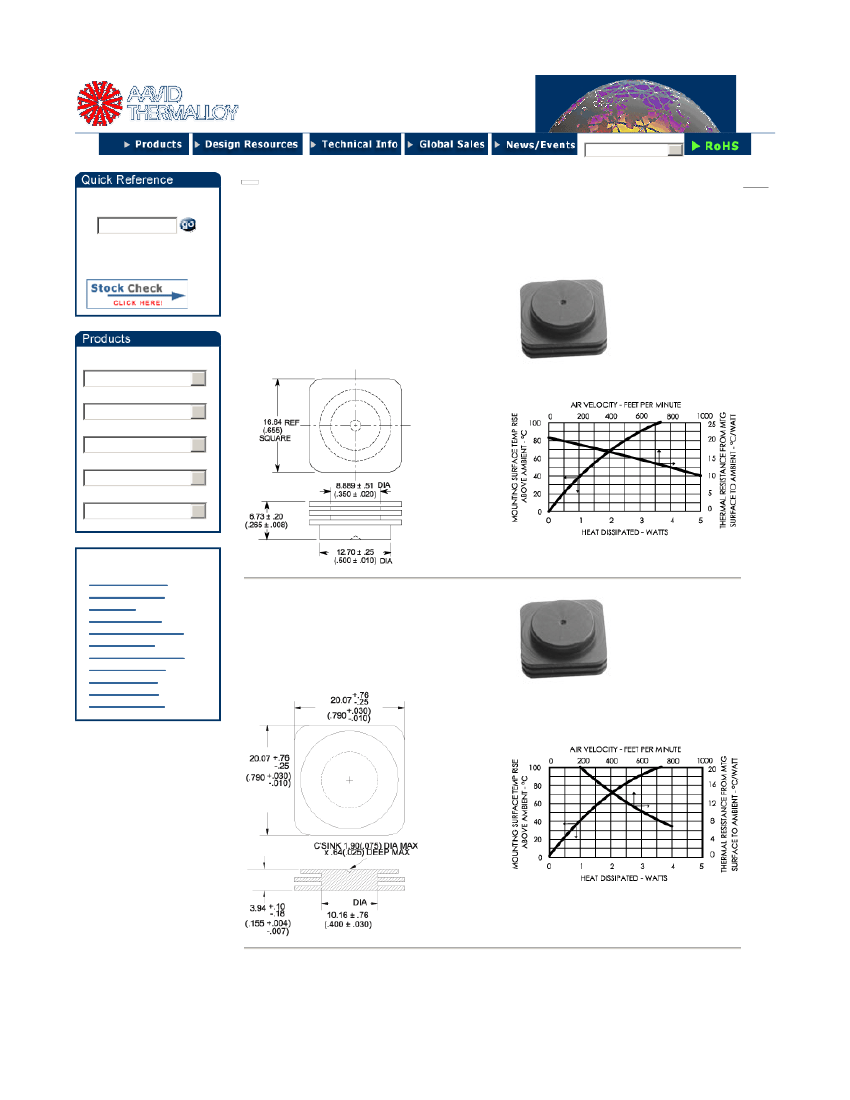

Radial Fin Heat Sinks for Microprocessors

Bond-on heat sinks for leadless chip carriers and flat packs.

Primarily designed for 68-position devices.

The 2283 is ideally suited to limited board space applications with high air flow.

Check distributor

part inventory

Part Number: 2283BG

Browse Heat sinks

- By Device -

- By Product Line -

-Attachment Methods

- Interface Materials -

- Accessories -

Useful Links

•

Building a part #

•

Catalog Request

•

Directions

•

Find Distributor

•

Find Sales Associate

•

How to order?

•

MSDS Safety Sheets

•

Part # Cross Ref

•

Quote Request

•

RoHS Initiative

•

Sample Request

Part Number: 2286BG<

4/19/2010

2283B Related Products

	2283B	2288B	2286B
Description	board level heat sink	board level heat sink	board level heat sink
Standard Package	250	500	500
Category	Fans, Thermal Manageme	Fans, Thermal Manageme	Fans, Thermal Manageme
Family	Thermal - Heat Sinks	Thermal - Heat Sinks	Thermal - Heat Sinks
Type	Board Level	Board Level	Board Level
Package Cooled	BGA	BGA	BGA
Attachment Method	Thermal Tape, Adhesive (Not Included)	Thermal Tape, Adhesive (Not Included)	Thermal Tape, Adhesive (Not Included)
Shape	Square	Cylindrical	Square
Length	0.655" (16.64mm)	-	0.790" (20.07mm)
Width	0.655" (16.64mm)	-	0.790" (20.07mm)
Height Off Base (Height of Fin)	0.265" (6.73mm)	-	0.155" (3.94mm)
Power Dissipation @ Temperature Rise	1W @ 40°C	1.5W @ 40°C	1W @ 40°C
Thermal Resistance @ Forced Air Flow	17.5°C/W @ 300 LFM	14.0°C/W @ 200 LFM	20.0°C/W @ 200 LFM
Material	Aluminum	Aluminum	Aluminum
Material Finish	Black Anodized	Black Anodized	Black Anodized
Other Names	034100	037128	034164
