822812B00000: Descriptionheatsink stamp 17.8x44.5x12.7mm; CategoryThermal management products; File Size374KB，1 Pages; ManufacturerComair Rotron; Environmental Compliance

Download Datasheet Parametric View All

822812B00000 Overview

heatsink stamp 17.8x44.5x12.7mm

822812B00000 Parametric

Parameter Name	Attribute value
Datasheets
822812B00000
Fans, Blowers, Impellers Catalog
Catalog Drawings
822812B00000
Standard Package	50
Category	Fans, Thermal Manageme
Family	Thermal - Heat Sinks
Type	Board Level
Package Cooled	TO-220
Attachment Method	Bolt O
Shape	Rectangular, Fins
Length	0.700" (17.78mm)
Width	1.750" (44.45mm)
Diamete	-
Height Off Base (Height of Fin)	0.500" (12.70mm)
Power Dissipation @ Temperature Rise	10W @ 70°C
Thermal Resistance @ Forced Air Flow	4°C/W @ 300 LFM
Thermal Resistance @ Natural	-
Material	Aluminum
Material Finish	Black Anodized
Other Names	822812B00000-NDCR502

Preview

Download Datasheet

View All

Board Level

Heat Sinks

P/N: 822812B00000

-

220

TO-

220

-

220

-

220

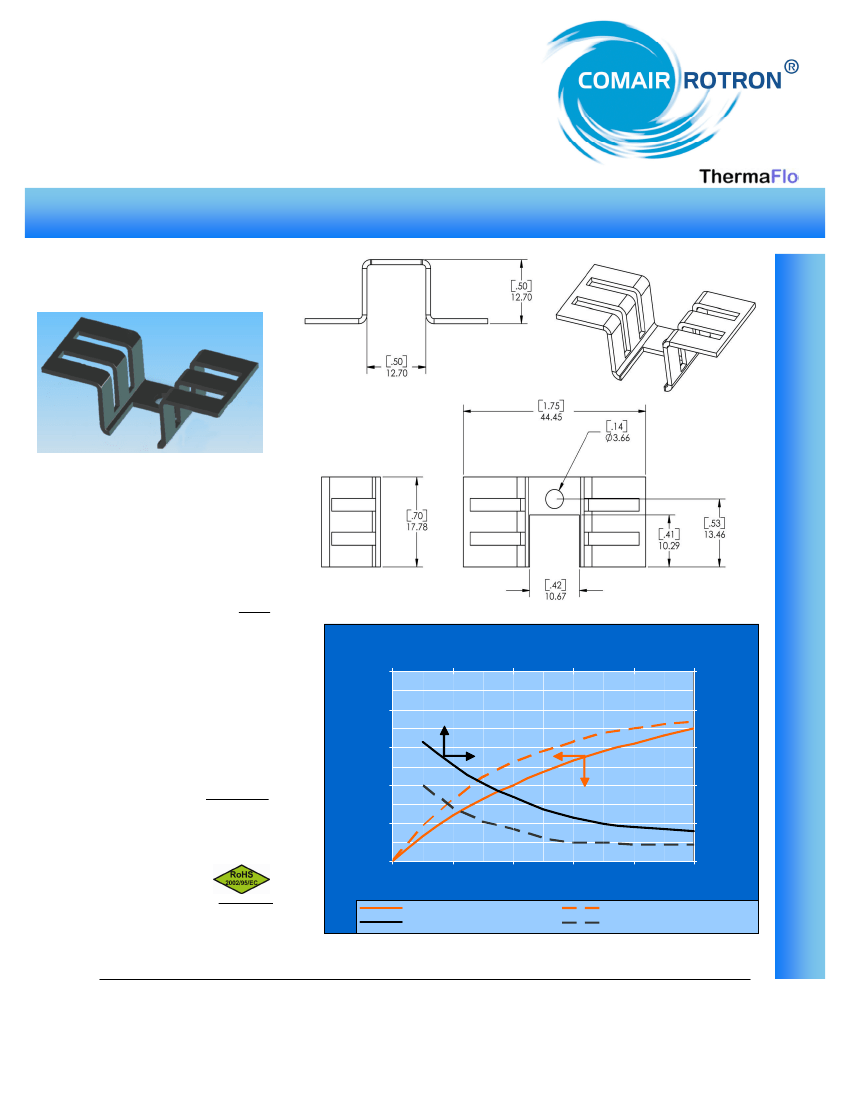

PRODUCT SPECIFICATIONS

• Devices: TO-220

• Size: 17.8 x 44.5 x 12.7mm

• Material: Aluminum 1.0mm

• Type: Stamped

• Finish: Black Anodized

• Mounting: Device Leads

• Package: Bulk

• Accessories: Hardware & Thermal Interface

Material

Air Velocity - LFM

0

100

C

Temp Rise Above Ambient -

(Mounting Surface)

o

200

400

600

800

1000

10

8

6

4

2

0

Thermal Resistance -

o

C / Watt

(Mounting Surface to Ambient)

80

60

40

20

0

2

824302

FEATURES & BENEFITS

• Hole for Device Attachment

• Mates with PN 824302B00000

• RoHS Compliant

CUSTOMIZED HEATSINKS

• Specialized Body Configurations

• Contact Applications Engineering

4

6

8

10

Heat Dissipated - Watts

824302 w ith 822812 attached

COMAIR ROTRON, INC

8929 Terman Court, San Diego, CA 92121

Ph (858) 348-6200 Fax (858) 566-4577

E-mail: sales@comairrotron.com,

Web: www.comairrotron.com
