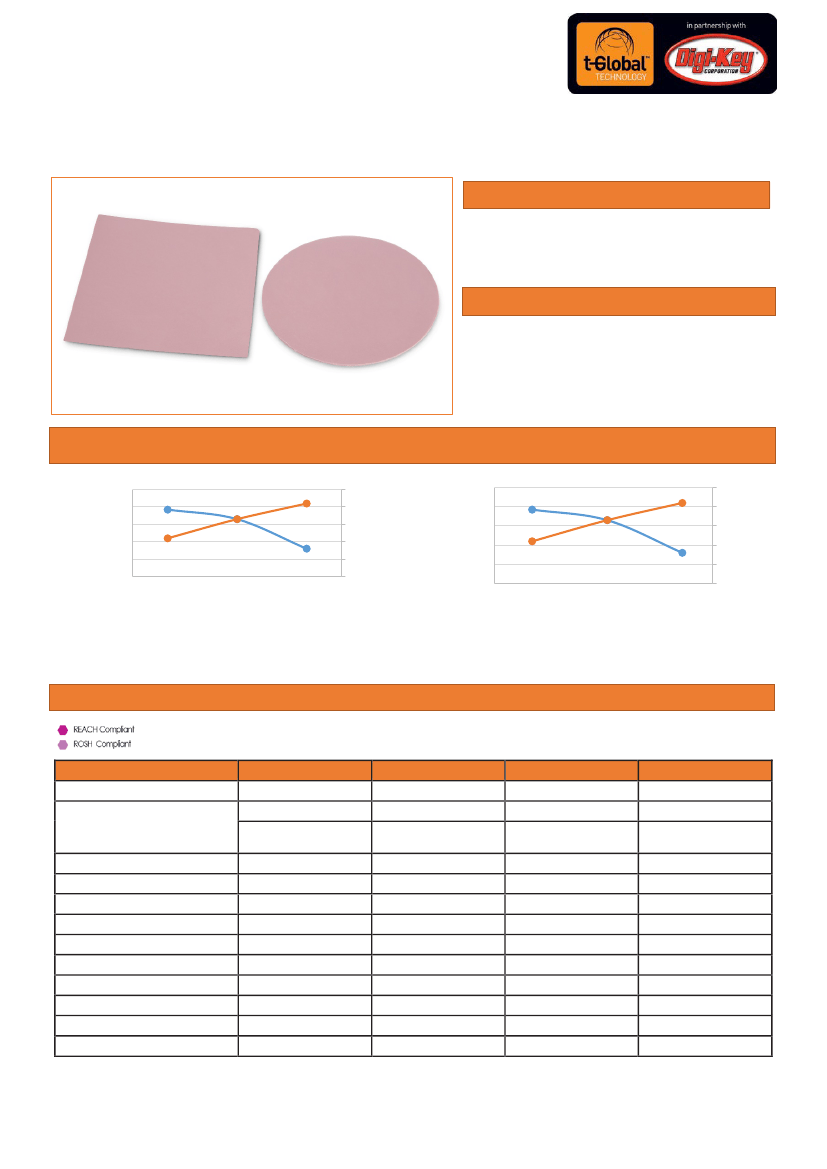

Thermal Resistance Vs Pressure Vs Deflect
Thermal Impedance Vs Pressure Vs Deflection
Thermal Impedance
(⁰C-in²/W)
Thermal Impedance
(⁰C-in²/W)
1
0.8
0.6
0.4
0.2
0
50
40
30
20
10
0
Deflection (%)
1
0.8
0.6
0.4
0.2
0
0
100
200
300
400
50
40
30
20
10
0
0
20
40
60
Pressure (psi)
Pressure (kPa)
Properties
Property
Colour
Thickness (Available thickness
range)
Thermal Conductivity
Flammability Rating
Dielectric Breakdown Voltage
Weight Loss
Specific Gravity
Working Temperature
Volume Resistance
Elongation
Tensile Strength
Hardness
PC94
Red
0.50 / 5.0
0.0098 / 0.1969
4
V-1
10
‹1
2.5
-30 to 125
›10¹⁰
100
2
60
Unit
-
mm
inch
W/mK
-
kV/mm
%
g/cm³
˚C
Ohm-cm
%
Kgf/cm²
Shore 00
Tolerance
-
-
-
± 0.4
-
-
-
± 0.2
-
-
-
±2
± 10
Test Method
Visual
ASTM D374
ASTM D374
ASTM D5470
UL 94
ASTM D149
ASTM E595
ASTM D792
-
ASTM D257
ASTM D412
ASTM D412
ASTM D2240
Tel:
+44 (0) 1455 553 510
Email:
sales@tglobaltechnology.com
Web:
www.tglobaltechnology.com
Skype:
tglobal.technology
Deflection (%)
Part Number
PC94-100-100-1
Product
PC94
PC94 product
Length
100
Length of 100 mm
Width
100
Width of 100 mm
Thickness
1
Thickness of 1 mm
Adhesive
-
No adhesive
Common Weights
Thickness
0.50
100x100
12.50
150x150
28.13
Size
300x300 112.50
320x320 128.00
* All weights are in gr
** All sizes are in mm
0.80
20.00
45.00
180.00
204.80
1.00
25.00
56.25
225.00
256.00
1.50
37.50
84.38
337.50
384.00
2.00
50.00
112.50
450.00
512.00
2.50
62.50
140.63
562.50
640.00
3.00
75.00
168.75
675.00
768.00
3.50
87.50
196.88
787.50
896.00
4.00
100.00
225.00
900.00
1024.00
4.50
112.50
253.13
1012.50
1152.00
5.00
125.00
281.25
1125.00
1280.00

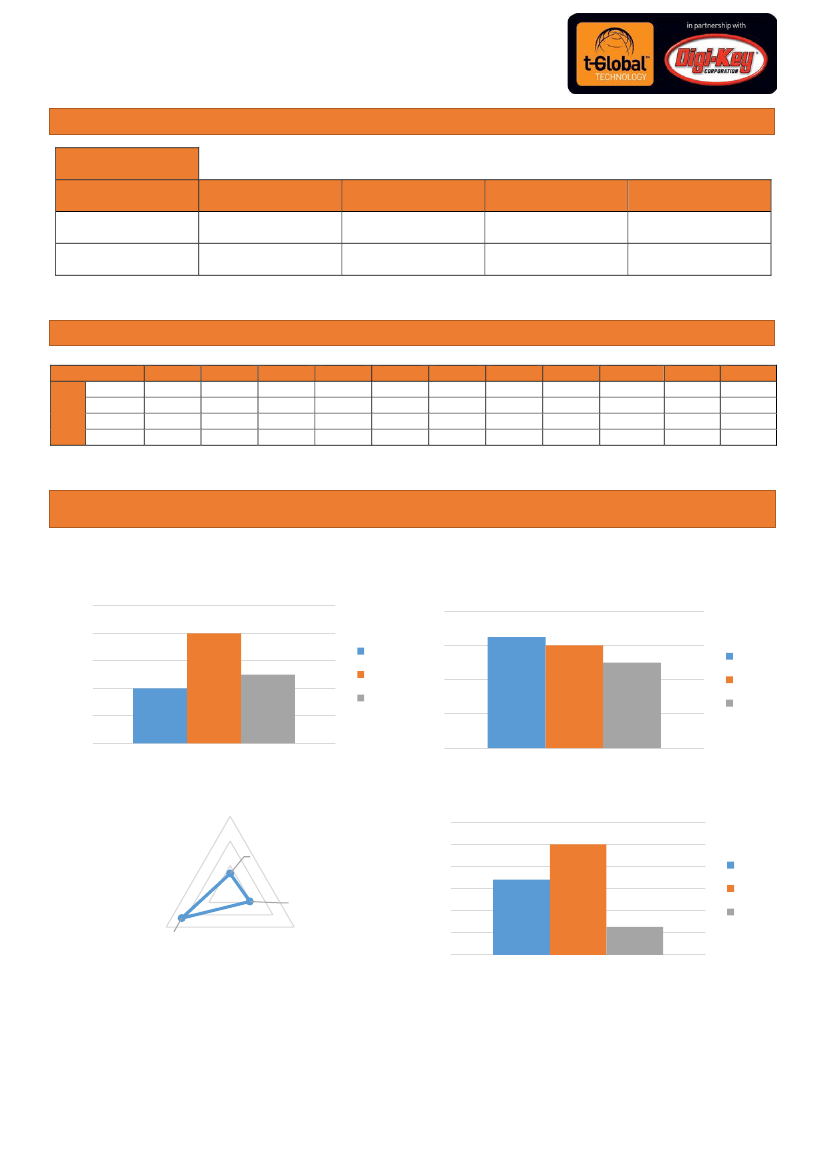

Data
Thermal Conductivity (W / mK)
5.00
4.00
3.00
2.00
1.00
0.00
PC93
PC94
PC96
80
60
40
20
0
PC93
PC94
PC96
Hardness (Shore 00)
Thermal Conductivity / Pricing
0.15
0.10
0.05
0.00
PC93
PC94
1.20
1.00
0.80
0.60
0.40
0.20
0.00
Pricing / Pricing PC94
PC93
PC94
PC96
PC96
*Data for design engineer guidance only.
Observed performance varies in application. Engineers are reminded to test the material in application.
Tel:
+44 (0) 1455 553 510
Email:
sales@tglobaltechnology.com
Web:
www.tglobaltechnology.com
Skype:
tglobal.technology
Application Guide
Digi-Key Part Number
1168-1434-ND
1168-1438-ND
1168-1435-ND
1168-1442-ND
1168-1437-ND
1168-1439-ND
1168-1441-ND
1168-1436-ND
1168-1440-ND
1168-1443-ND
PC94-100-100-0.25-0-ND
PC94-100-100-1.0-0-ND
PC94-100-100-2.0-0-ND
PC94-100-100-3.0-0-ND
PC94-100-100-5.0-0-ND
PC94-300-300-0.25-0-ND
PC94-300-300-1.0-0-ND
PC94-300-300-2.0-0-ND
PC94-300-300-3.0-0-ND
PC94-300-300-5.0-0-ND
T-Global Part Number
PC94-150-150-0.25-0
PC94-150-150-2.0-0
PC94-320-320-0.25-0
PC94-150-150-5.0-0
PC94-320-320-1.0-0
PC94-320-320-2.0-0
PC94-320-320-3.0-0
PC94-150-150-1.0-0
PC94-150-150-3.0-0
PC94-320-320-5.0-0
PC94-100-100-0.25-0
PC94-100-100-1.0-0
PC94-100-100-2.0-0
PC94-100-100-3.0-0
PC94-100-100-5.0-0
PC94-300-300-0.25-0
PC94-300-300-1.0-0
PC94-300-300-2.0-0
PC94-300-300-3.0-0
PC94-300-300-5.0-0
Thickness
0.010" (0.254mm)
0.079" (2.00mm)
0.010" (0.254mm)
0.197" (5.00mm)
0.040" (1.02mm)
0.079" (2.00mm)
0.118" (3.00mm)
0.040" (1.02mm)
0.118" (3.00mm)
0.197" (5.00mm)
0.010" (0.254mm)
0.040" (1.02mm)
0.079" (2.00mm)
0.118" (3.00mm)
0.197" (5.00mm)
0.010" (0.254mm)
0.040" (1.02mm)
0.079" (2.00mm)
0.118" (3.00mm)
0.197" (5.00mm)
Material
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Non-Silicone
Adhesive
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Backing, Carrier
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Color
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Thermal Resistivity
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Thermal Conductivity
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
4.0 W/m-K
NOTICE:
The information contained herein is to the best of our knowledge true and accurate. However, since the varied conditions of potential use are beyond
our control, all recommendations or suggestions are presented without guarantee or responsibility on our part and users should make their own test to determine
the suitability of our products in any specific situation. This product is sold without warranty either expressed or implied, of fitness for a particular purpose or
otherwise, except that this product shall be of standard quality, and except to the extent otherwise stated T-Global Technology Europe and North America’s
invoice, quotation, or order acknowledgment. We disclaim any and liability incurred in connection with the use of information contained herein, or otherwise. All
risks of such are assumed by the user. Furthermore, nothing contained herein shall be construed as a recommendation to use any process or to manufacture or
to use any product in conflict with existing future patents covering any product or material or its use.
