160-1-054-S-KS0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 160-1-054-S-KS0

Preview

160-1-054-S-KS0: DescriptionBoard Connector, 54 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking; CategoryThe connector The connector; File Size274KB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric View All

160-1-054-S-KS0 Overview

Board Connector, 54 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking

160-1-054-S-KS0 Parametric

Parameter Name	Attribute value
Objectid	308961409
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.165 inch
body length	2.331 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
insulator material	THERMOPLASTIC
Manufacturer's serial number	160
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	54
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

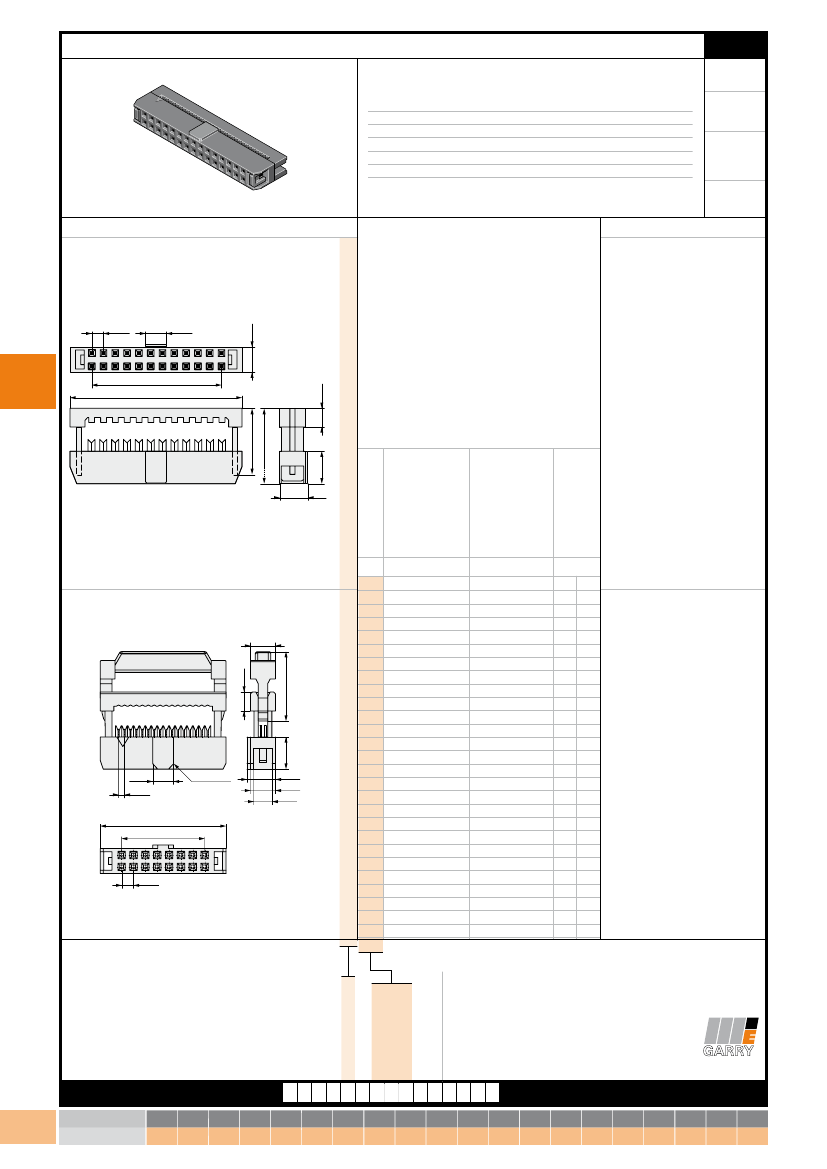

IDC-Connector 2,00 mm

Rated current

Rated voltage

Withstand voltage

Material contact

Material insulator

Operating temperature

All dimensions in mm.

1,5 A

150 V

RMS

/ V

DC

500 V

RMS

for 1 minute

Phosphor bronze

Thermoplast UL94V-0

-40°C to +105°C

Series

160

pitch

2,00

max.

pincount

⸋

0,50

068

Variation

Recommended cable: AWG 28 flat

ribbon cable with 1,00 mm centerline.

Product

group

6

A

8,80

after assembly

3,30

B

4,20

2,00

3,50

1

available in variation

4,80

4,20

3,50

1,00

A ±0,20

Nose

4,80

4,20

3,10

2

B ±0,20

2,00

006

008

010

012

014

016

018

020

022

024

026

028

030

032

034

036

038

040

044

048

050

054

056

060

062

064

068

n

11,20

13,20

15,20

17,20

19,20

21,20

23,20

25,20

27,20

29,20

31,20

33,20

35,20

37,20

39,20

41,20

43,20

45,20

49,20

53,20

55,20

59,20

61,20

65,20

67,20

69,20

73,20

A

4,00

6,00

8,00

10,00

12,00

14,00

16,00

18,00

20,00

22,00

24,00

26,00

28,00

30,00

32,00

34,00

36,00

38,00

42,00

46,00

48,00

52,00

54,00

58,00

60,00

62,00

66,00

B

1

2

Plating:

S = Selective Au

No. of contacts

Plating contact

www.mpe-connector.de

Order code:

160-1-???-S-KS0

3-33 3-34

6-12

Mating series

see page

155 588

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

mating pin

size

8,70

5,45

no. of contacts

see figure left

3,50

5,40

11,70

Variation (1,2)

see figure left

Recommended Resources

Single pulse signal generating circuit c

Thermal element type overvoltage protection circuit

5V, 12V dual power supply circuit diagram

Amplifier product circuit diagram

LT1101 precision micro-power single power supply instrument amplifier circuit

Simple home walkie-talkie circuit diagram
