EURO
QUARTZ
Features
Frequency Range 1.0 to 150MHz
Frequency Stability ±25 or ±50ppm
Operating Voltage: 1.65V to 1.95V
Operating Temperature Range
Commercial: 0° to +70°C
Ext. Commercial: -20 to +70°C
Industrial: -40° to +85°C
Low Operating and Standby Current
3mA operating (40MHz)
1µA Standby
Ultra-Miniature Footprint Packages
2.5 x 2.0 x 0.85mm
3.2 x 2.5 x 0.85mm
5.0 x 3.2 x 0.85mm
7.0 x 5.0 x 0.85mm
MIL-STD 883 Shock & Vibration Resistant
Pb free, RoHS, REACH SVHC Compliant
EMEM1018- MEMS OSCILLATOR
Freq: 1.0MHz to 150.0MHz
Page 1 of 5
1.8 Volt Low Power CMOS Oscillator
Description
The Euroquartz EMEM1018 oscillator range are 1.8 Volt supply MEMS
(Micro Electro-Mechanical System) devices offering excellent jitter and
stability performance over a wide range of supply voltages and
temperature ranges. EMEM1018 parts incorporate an all-silicon
resonator that is robust and perfoms well in high shock and vibration
environments.
EMEM1018 oscillators are available in four, industry-standard SMD
packages: 7 x 5mm, 5 x 3.2mm, 3.2 x 2.5mm and 2.5 x 2.0mm. The
part may be 'dropped in' to most PCB footprints as standard crystal
oscillators.
Absolute Maximum Ratings
1
Item
Input Voltage
Junction Temp.
Storage Temp.
Soldering
Temp.
ESD
HBM
MM
CDM
Min.
-0.3
-
-55
-
Max.
VDD+0.3
+150
+150
+260
4000
200
500
Unit
V
°C
°C
°C
40 sec. max.
Condition
Recommended Operating Conditions
Parameter
Supply Voltage
Output Load
Operating Temperature
Option 1
Option 2
Option 3
Symbol
VDD
ZL
Range
1.65 ~1.95V
R>10kΩ,
C≤15pF
-40 to +85°C
-20 to +70°C
0 to + 60°C
T
-
V
Electrical Specifications
Parameter
Frequency
Frequency Tolerance
Option 1
Option 2
Option 3
Supply Current, no load
Symbol
f
0
∆f
Condition
Single frequency
-40° to +85°C
-20° to +70°C
0° to +70°C
1 ~ 40MHz
C
L
= 0p
40 ~ 80MHz
R
L
=
∞
80 ~ 125MHz
T = 25°C 125 ~ 150MHz
T=25°C
C
L
= 15p
T=25°C
45
0.75*V
DD
F = 100MHz
3
95
0.8*V
DD
1.5
20
Min.
1
Typ.
Max.
150
±25, ±50
±25, ±50
±25, ±50
3
4
5
6
10
1
-
0.2*V
DD
3
100
55
Unit
MHz
ppm
I
DD
Supply Current, Standby
Output Logic Levels
Output Logic High
Output Logic Low
Output Startup Time
2
Output Disable Time
Output Duty Cycle
Input Logic Levels
Input Logic High
Input Logic Low
Jitter, Cycle to Cycle
I
DD
V
OH
V
OL
T
SU
T
DA
SYM
V
IH
V
IL
J
CC
mA
µA
Volts
ms
ns
%
Volts
0.25*V
DD
ps
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
EURO
QUARTZ
Standby Function
Standby#
(Pin 1)
High Level
Open
(not connected)
Low Level
Output
(Pin 3)
Output ON
Output ON
High Impedance
EMEM1018- MEMS OSCILLATOR
Freq: 1.0MHz to 150.0MHz
Page 2 of 5
Board Layout (Recommended)
1.8 Volt Low Power CMOS Oscillator

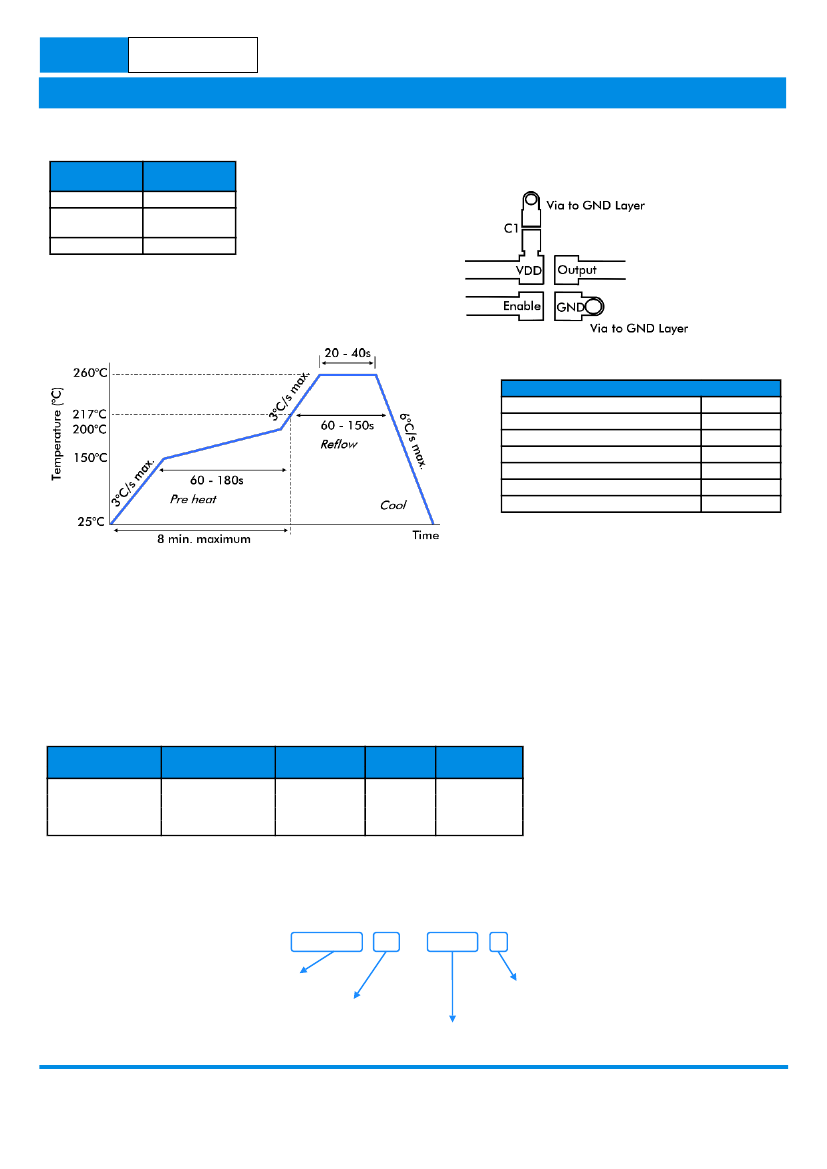

Solder Reflow Profile
MSL1 @ 260°C refer to JSTD-020C
Ramp-up Rate (200°C to Peak Temp.) 3°C/s max.
Preheat Time 150°C to 200°C
60-180s
Time maintained above 217°C
60-150s
Peak Temperature
255-260°C
Time within 5°C of actual peak
20-40s
Ramp-Down Rate
6°C/s max.
Time 25°C to Peak Temperature
8 min max.
Notes:
1. Absolute maximum ratings are those
values beyond which the safety of the
device cannot be guaranteed. The
device should not be operated beyond
these limits.
2. t
SU
is time to stable frequency output
after VDD is applied. t
SU
and t
EN
(after
EN is asserted) are identical values.
3. See Typical Cycle to Cycle Jitter graph for
frequency dependence.
Ordering Information
Package
(Plastic QFN)
P=A: 7.0 x 5.0mm
P=B: 5.0 x 3.2mm
P=C: 3.2 x 2.5mm
P=D: 2.5 x 2.0mm
Temperature
Range
T=C: 0° ~ +70°C
T=E:-20° ~ +70°C
T=I:-40° ~ +85°C
Stability
S=1: ±50ppm
S=2: ±25ppm
Frequency
Packing
Option
Blank: Tubes
T: Tape & Reel
XXX.XXX
Order in the form:
EMEM1018PTS-FREQUENCY-SUPPLY FORMAT
Example:
EMEM1018CE1-123.000T
Example:
EMEM1018
Family
Package, Temp.,
& Stability
CE1
-
This is an 123.000MHz Oscillator in a plastic 3.2 x 2.5mm package;
stability ±50ppm over -20° to +70°C, supplied on tape and reel.
123.000
T
Blank = tubes
T = Tape & Reel
Output Frequency
1.0 to 150MHz
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
EURO
QUARTZ
EMEM1018- MEMS OSCILLATOR
Freq: 1.0MHz to 150.0MHz
Page 3 of 5
1.8 Volt Low Power CMOS Oscillator

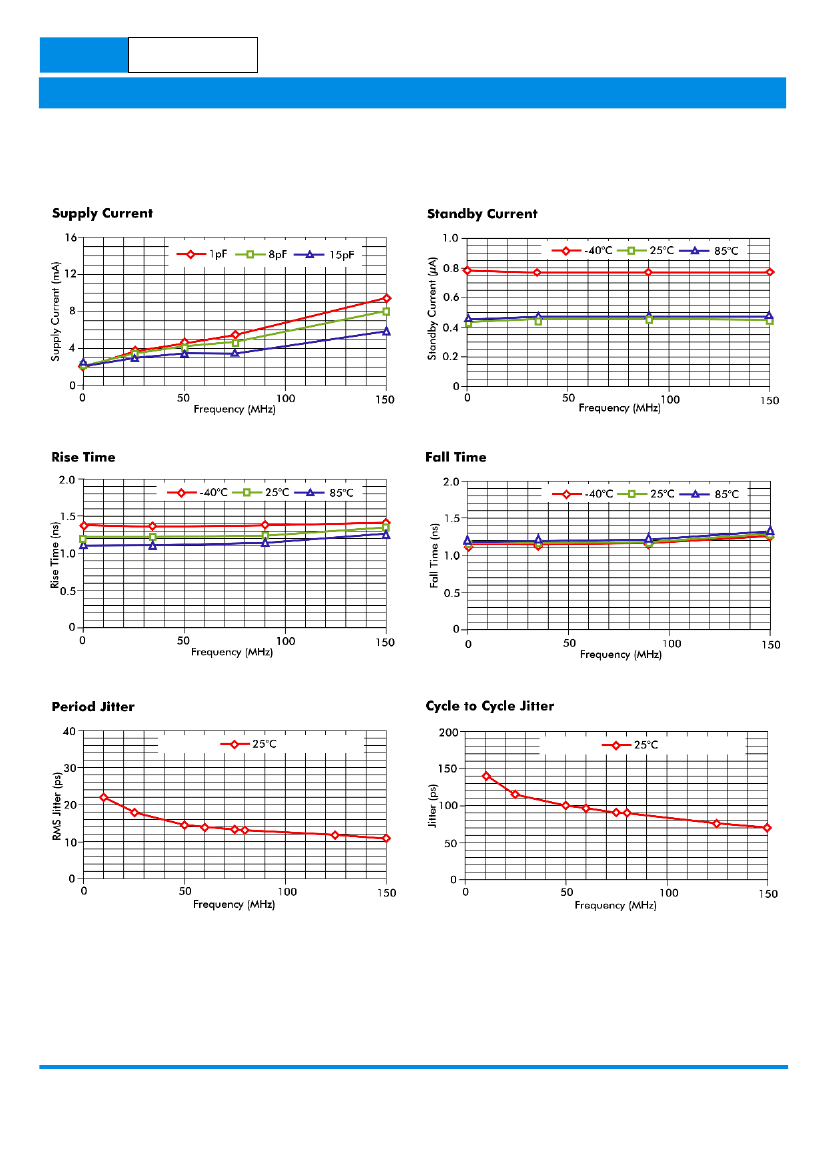

Nominal Performance Characteristics - 1.8V Supply
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
EURO
QUARTZ

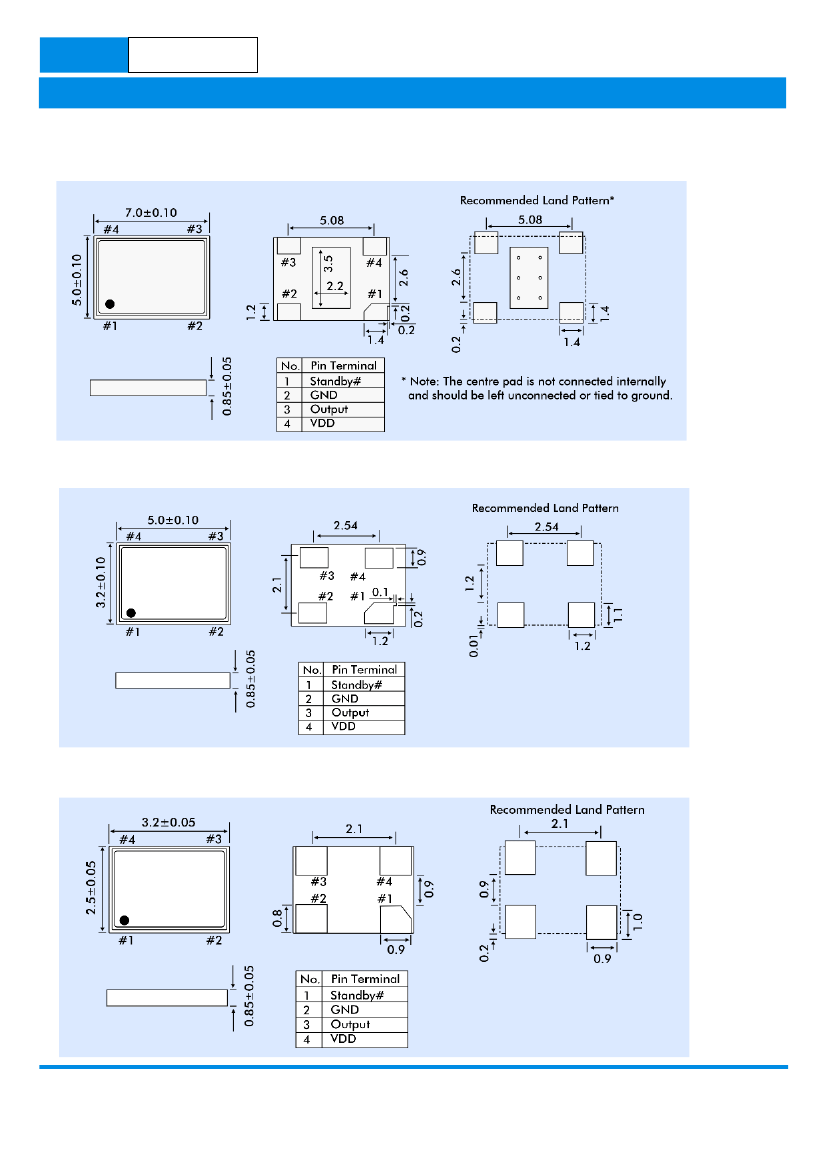

PACKAGE DIMENSIONS
7.0 x 5.0mm Plastic Package
EMEM1018- MEMS OSCILLATOR
Freq: 1.0MHz to 150.0MHz
Page 4 of 5
1.8 Volt Low Power CMOS Oscillator
5.0 x 3.2mm Plastic Package
3.2 x 2.5mm Plastic Package
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
EURO
QUARTZ
2.5 x 2.0mm Plastic Package
EMEM1018- MEMS OSCILLATOR
Freq: 1.0MHz to 150.0MHz
Page 5 of 5
1.8 Volt Low Power CMOS Oscillator
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
