C1206X472KARAL7411 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> C1206X472KARAL7411

C1206X472KARAL7411: DescriptionCeramic Capacitor, Ceramic, 250V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0047uF, 1306,; CategoryPassive components capacitor; File Size1MB，18 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C1206X472KARAL7411 Overview

Ceramic Capacitor, Ceramic, 250V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0047uF, 1306,

C1206X472KARAL7411 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	760975760
package instruction	, 1306
Reach Compliance Code	not_compliant
ECCN code	EAR99
YTEOL	8
capacitance	0.0047 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.78 mm
length	3.3 mm
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Paper, 13 Inch
positive tolerance	10%
Rated (DC) voltage (URdc)	250 V
size code	1206
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
width	1.6 mm

Preview

Download Datasheet

View All

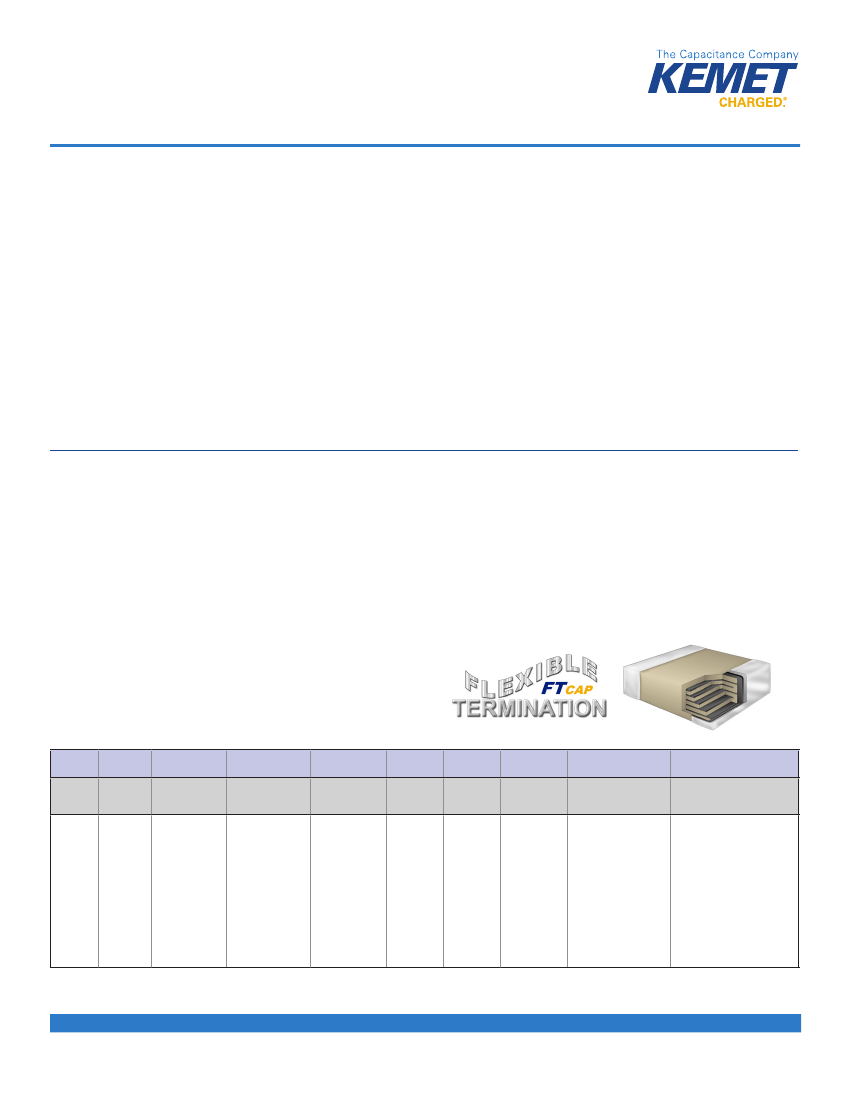

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Flexible Termination System (FT-CAP) X7R Dielectric,

6.3VDC-250VDC (Commercial Grade & Automotive Grade)

Overview

KEMET’s Flexible Termination (FT-CAP) multilayer ceramic

capacitor in X7R dielectric incorporates a unique, flexible

termination system that is integrated with KEMET’s standard

termination materials. A conductive silver epoxy is utilized

between the base metal and nickel barrier layers of KEMET’s

standard termination system in order to establish pliability

while maintaining terminal strength, solderability and electrical

performance. This technology was developed in order to address

the primary failure mode of MLCCs—flex cracks, which are

typically the result of excessive shear stresses produced during

board flexure or thermal cycling. Flexible termination technology

directs board flex stress away from the ceramic body and into the

termination area, therefore mitigating flex cracks which can result

in low IR or short circuit failures.

Although this technology does not eliminate the potential

for mechanical damage that may propagate during extreme

environmental and handling conditions, it does provide superior

flex performance over standard termination systems. The FT-

CAP complements KEMET’s Open Mode, Floating Electrode

(FE-CAP), Floating Electrode with Flexible Termination (FF-CAP)

and KEMET Power Solutions (KPS) product lines by providing a

complete portfolio of flex mitigation solutions.

Combined with the stability of an X7R dielectric and designed to

accommodate all capacitance requirements, these flex-robust

devices are RoHS-compliant, offer up to 5mm of flex-bend

capability and exhibit a predictable change in capacitance with

respect to time and voltage. Capacitance change with reference

to ambient temperature is limited to ±15% from -55°C to +125°C.

• 100% pure matte tin-plated end metallization allowing for

excellent solderability

• SnPb end metallization option available upon request (5% min)

• Commercial and Automotive (AEC-Q200) grades available

Benefits

•

-55°C to +125°C operating temperature range

Superior flex performance (up to 5mm)

High capacitance flex mitigation

Pb-Free and RoHS compliant

EIA 0603, 0805, 1206, 1210, 1808, 1812, 2220 and 2225 case sizes

DC voltage ratings of 6.3V, 10V, 16V, 25V, 50V, 100V, 200V and 250V

Capacitance offerings ranging from 180pF to 22μF

Available capacitance tolerances of ±5%, ±10% and ±20%

Non-polar device, minimizing installation concerns

Ordering Information

Ceramic

1206

106

Capacitance

Code (pF)

2 Sig. Digits +

Number of Zeros

Capacitance

Tolerance

J = ±5%

K = ±10%

M = ±20%

Voltage

9 = 6.3V

8 = 10V

4 = 16V

3 = 25V

5 = 50V

1 = 100V

2 = 200V

A = 250V

Dielectric

R = X7R

Failure Rate/

Design

A = N/A

AUTO

Case Size Specification/

(L" x W")

Series

0603

0805

1206

1210

1808

1812

1825

2220

2225

X = Flexible

Termination

End Metallization

Packaging/Grade (C-Spec)

(Plated)

C = 100% Matte Sn Blank = Bulk

L = SnPb (5% min) TU = 7" Reel Unmarked

TM = 7" Reel Marked

AUTO = Automotive Grade

7" Reel Unmarked

Additional termination options may be available. Contact KEMET for details.

Additional reeling or packaging options may be available. Contact KEMET for details.

One WORLD

One Brand

One Strategy

One Focus

One Team

One KEMET

C1013-1 • 9/14/2010
