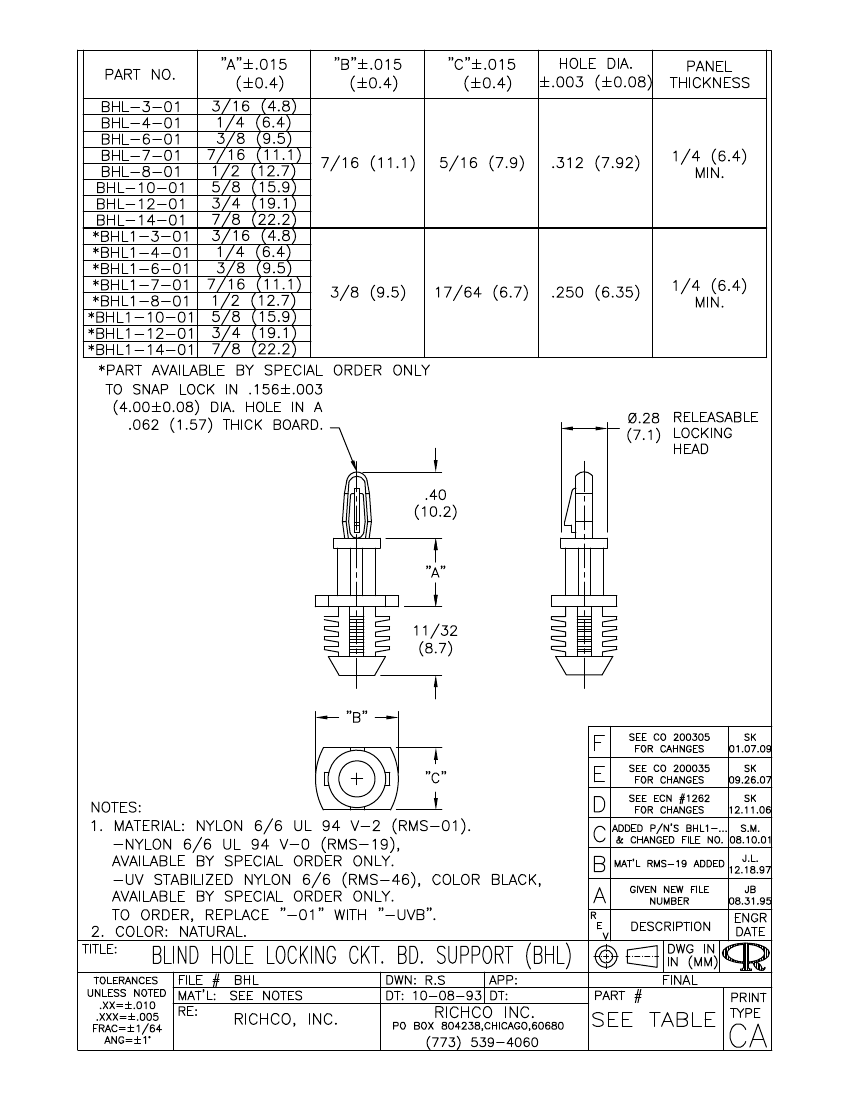

lcbs blind hole 5/8"
| Parameter Name | Attribute value |
| Datasheets | |
| BHL-x-01 | |
| BHL, DLMSP,CBLSP,CBDLS,DLCBSX | |
| Product Training Modules | |
| Engineering Technology | |
| Injection Molding and Plastics | |
| Plastic Materials | |
| Standard Package | 1,000 |
| Category | Hardware, Fasteners, Accessories |
| Family | Board Supports |
| Holding Type | Snap Lock |
| Mounting Type | Barbed Fastene |
| Between Board Heigh | 0.625" (15.88mm) 5/8" |
| Length - Overall | 1.370" (34.80mm) |
| Support Hole Diamete | 0.156" (3.96mm) 5/32" |
| Support Panel Thickness | 0.062" (1.57mm) 1/16" |
| Mounting Hole Diamete | 0.312" (7.92mm) |
| Mounting Panel Thickness | 0.250" (6.35mm) 1/4" |
| Features | Blind Hole Mating |
| Material | Nyl |
| Other Names | 21181030BHL1001 |
| BHL-10-01 | BHL-7-01 | BHL-3-01 | BHL-4-01 | BHL-6-01 | BHL-8-01 | BHL-12-01 | BHL-14-01 | |
|---|---|---|---|---|---|---|---|---|
| Description | lcbs blind hole 5/8" | lcbs blind hole 7/16" | lcbs blind hole 3/16" | lcbs blind hole 1/4" | stand off nylon 3/8" | lcbs blind hole 1/2" | lcbs blind hole 3/4" | lcbs blind hole 7/8" |
| Standard Package | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| Category | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories | Hardware, Fasteners, Accessories |
| Family | Board Supports | Board Supports | Board Supports | Board Supports | Board Supports | Board Supports | Board Supports | Board Supports |
| Holding Type | Snap Lock | Snap Lock | Snap Lock | Snap Lock | Snap Lock | Snap Lock | Snap Lock | Snap Lock |
| Mounting Type | Barbed Fastene | Barbed Fastene | Barbed Fastene | Barbed Fastene | Barbed Fastene | Barbed Fastene | Barbed Fastene | Barbed Fastene |
| Between Board Heigh | 0.625" (15.88mm) 5/8" | 0.437" (11.10mm) 7/16" | 0.187" (4.75mm) 3/16" | 0.250" (6.35mm) 1/4" | 0.375" (9.53mm) 3/8" | 0.500" (12.70mm) 1/2" | 0.750" (19.05mm) 3/4" | 0.875" (22.23mm) 7/8" |
| Length - Overall | 1.370" (34.80mm) | 1.181" (30.00mm) | 0.933" (23.71mm) | 0.996" (25.30mm) | 1.118" (28.40mm) | 1.244" (31.60mm) | 1.496" (38.00mm) | 1.618" (41.10mm) |
| Support Hole Diamete | 0.156" (3.96mm) 5/32" | 0.156" (3.96mm) 5/32" | 0.156" (3.96mm) 5/32" | 0.156" (3.96mm) 5/32" | 0.156" (3.96mm) 5/32" | 0.156" (3.96mm) 5/32" | 0.156" (3.96mm) 5/32" | 0.156" (3.96mm) 5/32" |
| Support Panel Thickness | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" | 0.062" (1.57mm) 1/16" |
| Mounting Hole Diamete | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) |
| Mounting Panel Thickness | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" | 0.250" (6.35mm) 1/4" |
| Features | Blind Hole Mating | Blind Hole Mating | Blind Hole Mating | Blind Hole Mating | Blind Hole Mating | Blind Hole Mating | Blind Hole Mating | Blind Hole Mating |
| Material | Nyl | Nyl | Nyl | Nyl | Nyl | Nyl | Nyl | Nyl |
| Other Names | 21181030BHL1001 | 21181028BHL- 7-01BHL- 7-01-NDBHL701 | 21181025BHL- 3-01BHL- 3-01-NDBHL301 | 21181026BHL- 4-01BHL- 4-01-NDBHL401 | Q764166 | 21181029BHL- 8-01BHL- 8-01-NDBHL801 | 21181031BHL1201 | 21181032BHL1401 |
