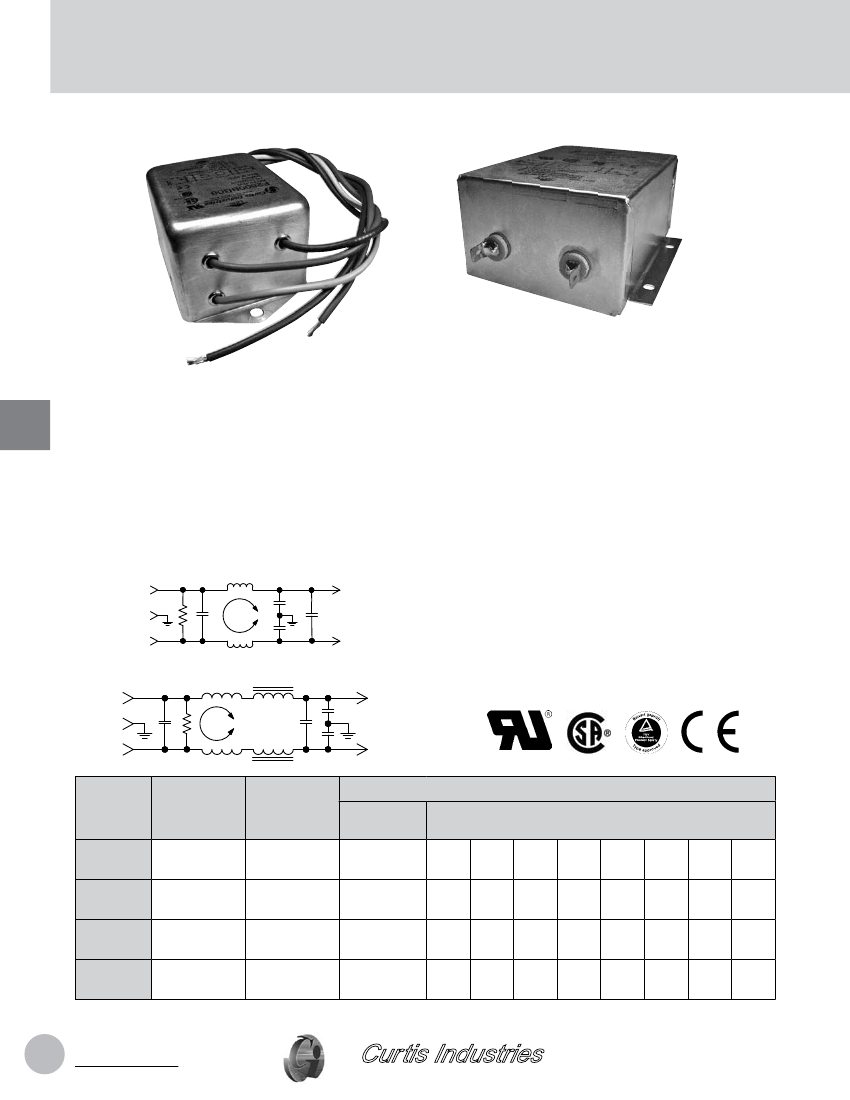

F2800 RFI Filters
High Performance
Specifications
:
Rated Voltage:
250VAC Maximum - 50/60 Hz
Rated Current:
115VAC
250VAC
3A
1.5A
6A
4A
10A
6A
15A
12A
Current Overload:
6X for 8 seconds
Hi-Pot Test (1 min):
Line to Ground
1500VAC
Line to Line
1768VDC
Insulation Resistance:
9 x 10
9
Ω
at 100VDC
Ambient Temperature:
40°C Max. at rated current
Humidity Range:
0% to 95% R.H.
Termination:
A: QC – Quick Connect
B: Wire
Maximum Leakage Current:
Each Line to Ground
F2800
115VAC, 60Hz:
0.25mA
250VAC, 50Hz:
0.40mA
Agency Approvals:
Features:
SINGLE PHASE FILTERS
• Designed for VDE “A” and FCC “B” Switching Power
Supply Applications
• Low-Leakage Current
• Compact Case Sizes in Current Ratings up to 15A
• Effective Reduction of Common Mode and
Differential Mode Noise from 100KHz to 30MHz
F2800 Simplified Schematic 3 & 6Amp
L
LINE
G
N
N
L
LO A D
L
L O AD
N
F2800 Simplified Schematic 10 & 15Amp
L
LINE
G
N
Nominal
Current
Rating
MINIMUM INSERTION LOSS - dB (50 ohm Circuit)
Part
Number
Termination
Line/Load
QC/QC
Wire/Wire
QC/QC
Wire/Wire
QC/QC
Wire/Wire
QC/QC
Wire/Wire
MODE
Common
Differential
Common
Differential
Common
Differential
Common
Differential
Frequency - MHz
.50
1.0
5.0
35
60
35
60
30
60
33
70
35
65
40
60
35
60
36
70
40
50
40
50
40
60
38
70
.01
10
5
5
5
5
7
8
10
.05
30
25
20
10
15
20
21
30
.15
35
50
30
40
25
50
29
70
10
45
45
40
50
45
60
45
70
30
50
45
50
45
50
55
50
60
3A
6A
10A
15A
26
F2800AA03
F2800BB03
F2800AA06
F2800BB06
F2800AA10
F2800BB10
F2800AA15
F2800BB15
www.curtisind.com
Curtis Industries
A Division of Powers Holdings, Inc.
Specifications subject to change.
Dimensions are shown for
reference purposes only.

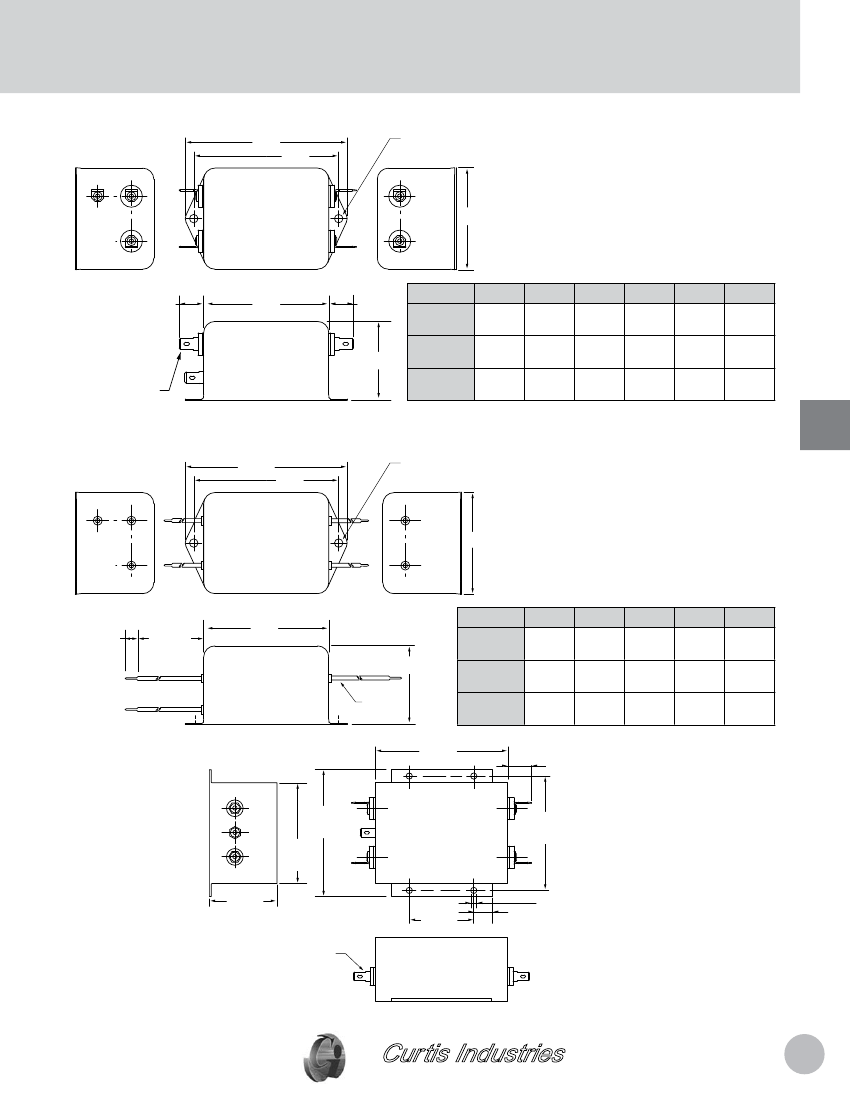

F2800AA
(3, 6 and 10Amp) Dimensions
A
D
.188 Dia.
(4,77)
2 Holes
L
I
N
E
L
O
A
D
B
High Performance
F
E
F
Amps
A
3.310
(84,1)
3.310
(84,1)
4.44
(113)
B
2.000
(50,8)
2.000
(50,8)
2.250
(57,1)
C
1.500
(38,2)
1.500
(38,2)
1.750
(44,4)
D
2.940
(74,7)
2.940
(74,7)
4.063
(103,2)
E
2.500
(63,5)
2.500
(63,5)
3.630
(92,2)
F
.550
(14,0)
.550
(14,0)
.650
(16,5)
3A
C
.250 QC
6A
10A
(6,4)
F2800BB
(3, 6 and 10Amp) Dimensions
A
D
.188 Dia.
(4,77)
2 Holes
SINGLE PHASE FILTERS
L
I
N
E
L
O
A
D
B
.250±.062
(6,35) Typ.
4.00
(101,6)
Min.)
E
C
Amps
A
3.310
(84,1)
3.310
(84,1)
4.690
(119)
B
2.000
(50,8)
2.000
(50,8)
2.250
(57,1)
C
1.500
(38,1)
1.500
(38,1)
1.750
(44,4)
D
2.940
(74,7)
2.940
(74,7)
4.063
(103,2)
E
2.500
(63,5)
2.500
(63,5)
3.630
(92,2)
3A
No. 18
Gauge
Wire
4.10
(104,1)
6A
10A
.65 Max.
(16,51)
F2800AA
F2800BB
(15Amp)
Dimensions
2.00
(50,8)
3.96
(100,5)
3.12
(79,25)
L
I
N
E
L
O
A
D
3.54±.015
(89,9)
2.00
(50,03)
.156
.56 (3,96)
(14,22)
.250 x .031 QC
(6,35) x (,78)
Dimensions are in inches and millimeters
unless otherwise specified.
Values in parentheses are metric equivalents.
Curtis Industries
A Division of Powers Holdings, Inc.
1-800-657-0853
27
