56740-502 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Thermal management products> 56740-502

56740-502: Descriptionpeltier cp14,71,06,L1,RT,W4.5; CategoryThermal management products; File Size462KB，2 Pages; ManufacturerLSR; Environmental Compliance

Download Datasheet Parametric Compare View All

56740-502 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	56740-502	-	-	View	Buy Now

56740-502 Overview

peltier cp14,71,06,L1,RT,W4.5

56740-502 Parametric

Parameter Name	Attribute value
Datasheets
CP14,71,06
Product Photos
56740-502
Product Training Modules
Thermoelectric Module Product Line
Standard Package	1
Category	Fans, Thermal Manageme
Family	Thermal - Thermoelectric, Peltier Modules
Outline L x W x H	29.72mm x 29.72mm x 3.81mm
Qmax @ Th	28.7W @ 25°C
Delta Tmax @ Th	68°C @ 25°C
Current - Max	6A
Voltage - Max	8.1V
Resistance (Ohms)	1.26
Operating Temperature	80°C
Features	Sealed - Silicone RTV
Dynamic Catalog	CP Series
Other Names	56740502926-1262

Preview

Download Datasheet

View All

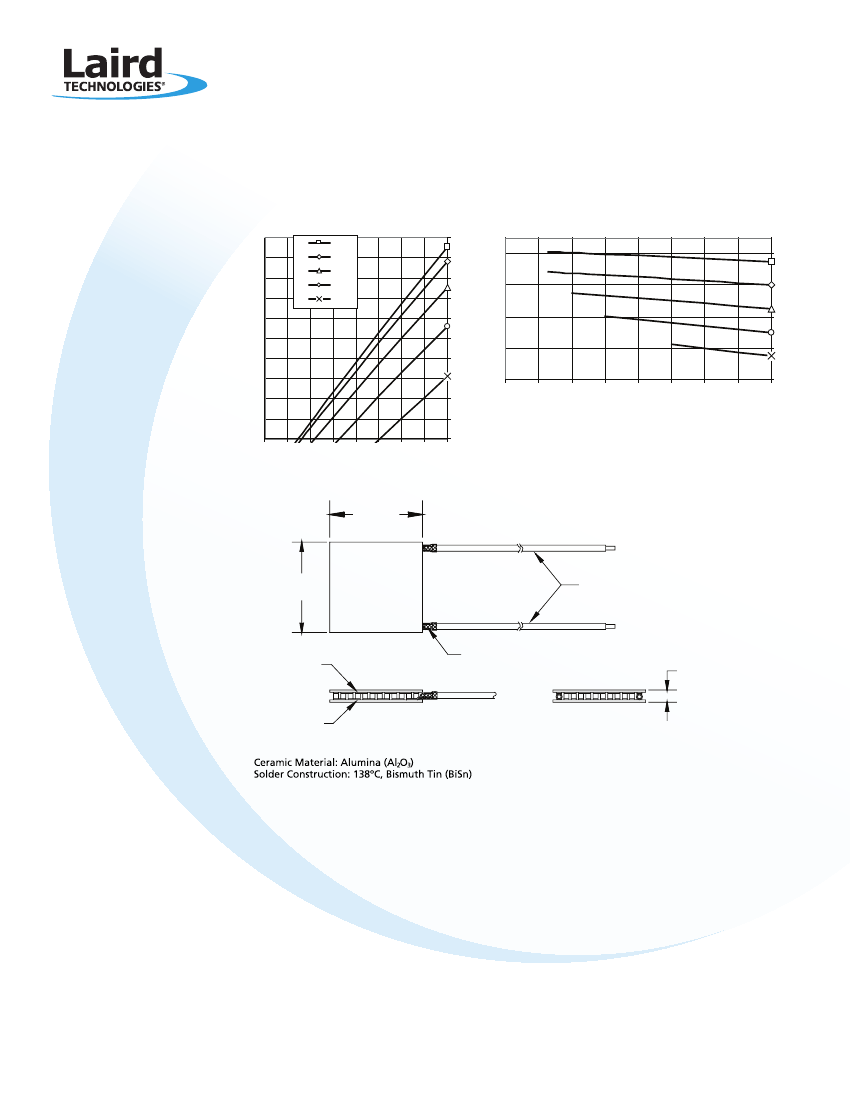

Ceramic Plate Series CP14,71,06

Innovative

Technology

for a

Connected

World

Thermoelectric Modules

The Ceramic Plate (CP) Series of Thermoelectric Modules (TEMs) is considered

‘the standard’ in the thermoelectric industry.

This broad product line of high-performance and highly reliable TEMs is available

in numerous heat pumping capacities, geometric shapes, and input power ranges.

Assembled with Bismuth Telluride semiconductor material and thermally conductive

Aluminum Oxide ceramics, the CP Series is designed for higher current and large

heat-pumping applications.

FeatureS

• Precise Temperature Control

• Compact Geometric Sizes

• Reliable Solid State Operation

• No Sound or Vibration

• Environmentally Friendly

• DC Operation

• RoHS Compliant

perforMance SpecificaTionS

hot Side Temperature (°c)

Qmax (Watts)

delta Tmax (°c)

imax (amps)

Vmax (Volts)

Module resistance (ohms)

Suffix ThickneSS

(prior To Tinning)

Suffix

0.150”± 0.010”

0.150”± 0.001”

0.150”± 0.0005”

0.154”± 0.010”

0.158”± 0.010”

SealanT color

RTV

Epoxy

White

Black

25°C

28.7

6.0

8.1

1.26

flaTneSS &

paralleliSM

aPPliCationS

• Medical Lasers

• Lab Science Instrumentation

• Clinical Diagnostic Systems

• Photonics Laser Systems

• Electronic Enclosure Cooling

• Food & Beverage Cooling

• Chillers (Liquid Cooling)

50°C

31.4

6.0

9.2

1.42

hoT

face

Lapped

Metallized

Lapped

Metallized

deScripTion

Non-corrosive, silicone adhesive sealant

Low density syntactic foam epoxy encapsulant

cold

face

Lapped

Metallized

lead

length

4.5”

0.0015” / 0.0015”

0.001” / 0.001”

0.0005” / 0.0005”

0.002” / 0.002”

TeMp range

-60 to 204 °C

-55 to 150 °C

Sealing oPtion

global

solutions:

local

support

Americas: +1 888.246.9050

Europe: +46.31.420530

Asia: +86.755.2714.1166

clv.customerpos@lairdtech.com

www.lairdtech.com

56740-502 Related Products

	56740-502	430705-503
Description	peltier cp14,71,06,L1,RT,W4.5	peltier mod cp14,71,06,L1,W4.5
Standard Package	1	1
Category	Fans, Thermal Manageme	Fans, Thermal Manageme
Family	Thermal - Thermoelectric, Peltier Modules	Thermal - Thermoelectric, Peltier Modules
Outline L x W x H	29.72mm x 29.72mm x 3.81mm	29.72mm x 29.72mm x 3.81mm
Qmax @ Th	28.7W @ 25°C	28.7W @ 25°C
Delta Tmax @ Th	68°C @ 25°C	68°C @ 25°C
Current - Max	6A	6A
Voltage - Max	8.1V	8.1V
Resistance (Ohms)	1.26	1.26
Operating Temperature	80°C	80°C
Features	Sealed - Silicone RTV	Non-Sealed
Dynamic Catalog	CP Series	CP Series
Other Names	56740502926-1262	430705503926-1037
