5246ADKB-16

Description
Toggle Switch, DPDT, On-on, Latched, 4A, 30VDC, Solder Terminal, Lever Actuator, Through Hole-straight
CategoryMechanical and electronic products    switch
File Size857KB,30 Pages
ManufacturerAPEM
Environmental Compliance
Download Datasheet Parametric View All

5246ADKB-16 Overview

Toggle Switch, DPDT, On-on, Latched, 4A, 30VDC, Solder Terminal, Lever Actuator, Through Hole-straight

5246ADKB-16 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1972609502
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL9.1
Actuator angle24 deg
Executor completedCHROME
Actuator length0.413 inch
Actuator typeLEVER
Other featuresPANEL MOUNTABLE
body width12 mm
body height13.3 mm
Body length or diameter13.2 mm
Nozzle length0.314 inch
center contact materialSILVER
Center contact platingGOLD
Maximum contact current (DC)4 A
Contact (DC) maximum rated R load4A@30VDC
Contact functionON-ON
Contact resistance0.01 mΩ
Maximum contact voltage (DC)30 V
Dielectric withstand voltage2100VAC V
Electrical life50000 Cycle(s)
End contact materialSILVER
End contact platingGOLD
Shell materialSTEEL
Insulation resistance1000000000 Ω
Installation featuresTHROUGH HOLE-STRAIGHT
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
method of packingBULK
sealEPOXY TERMINAL SEALED; FRONT PANEL SEALED
surface mountNO
Switch actionLATCHED
switch functionDPDT
Switch typeTOGGLE SWITCH
Terminal length0.157 inch
Termination typeSOLDER

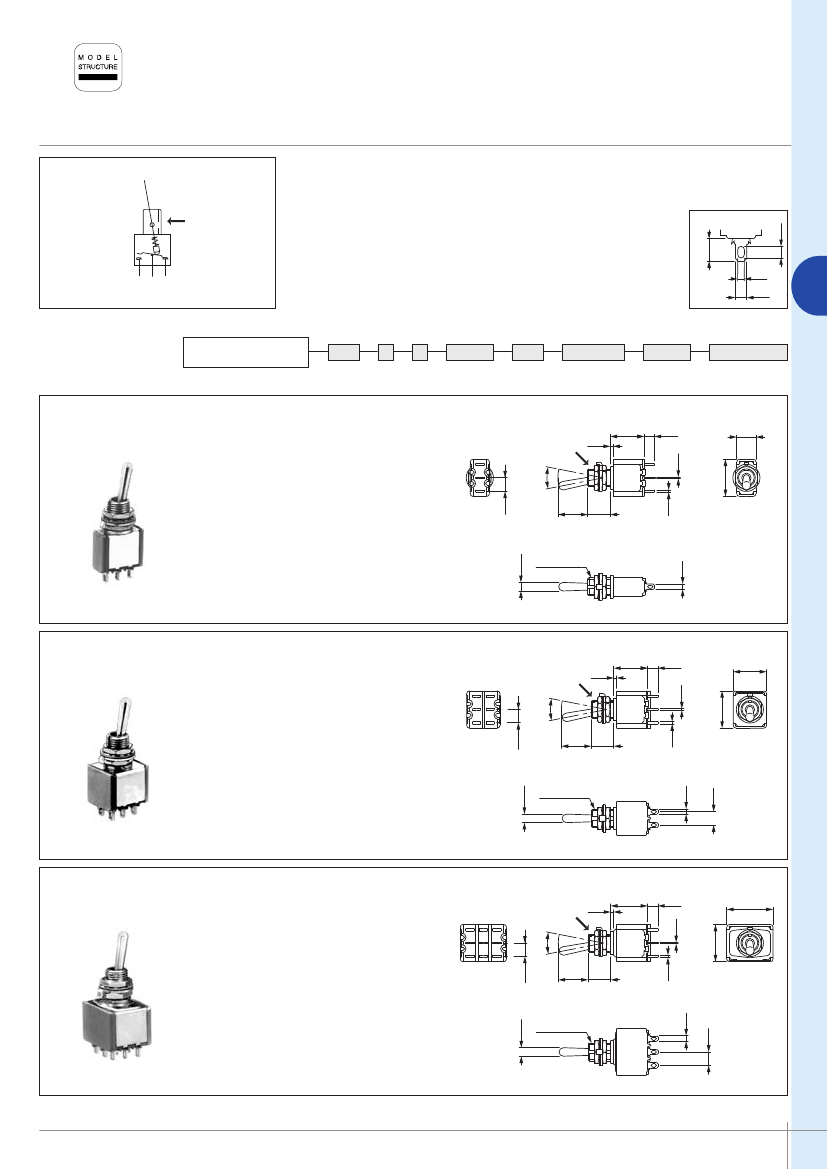

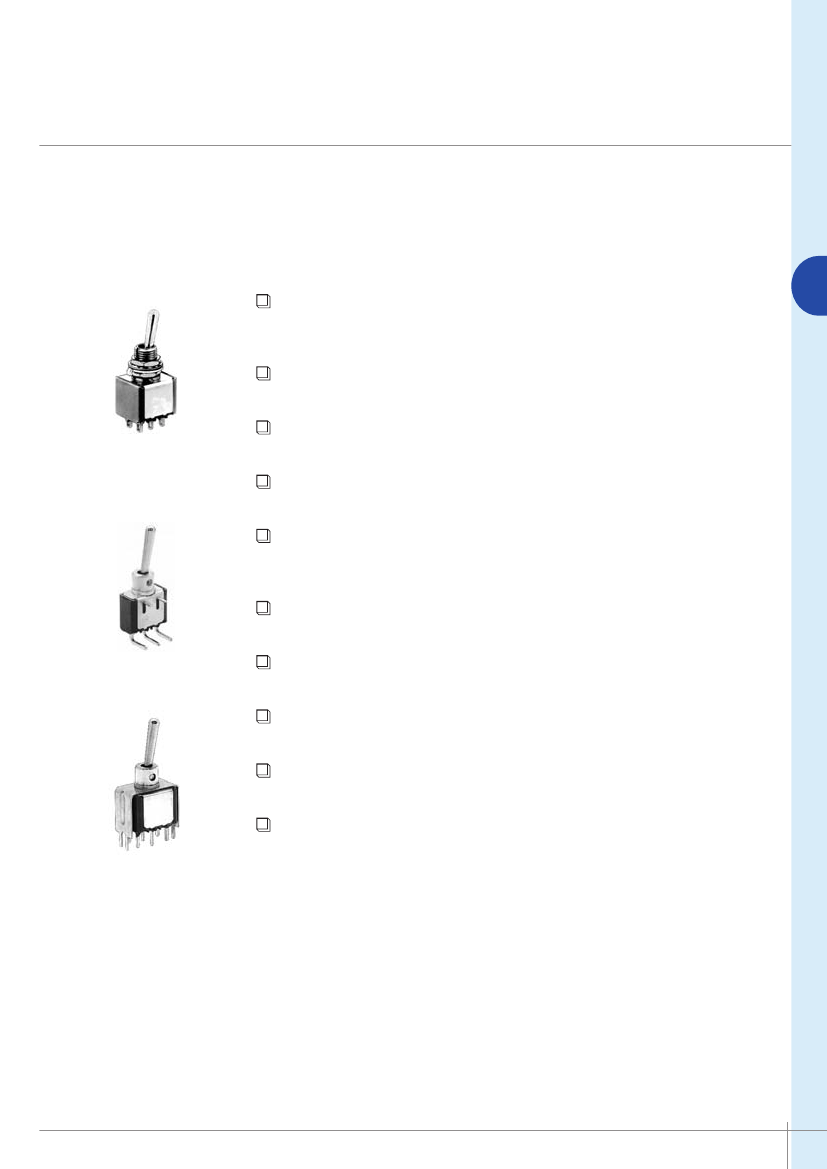

5000 series
Toggle switches
Distinctive features
THE WIDEST RANGE IN MINIATURE SWITCHES
17 actuators including toggles, paddle levers and locking levers
in different lengths.
A
Various contact materials for low and high currents.
8 functions including maintained and momentary versions.
1 to 4 pole configurations.
12 terminal types including 9 for PC board mounting.
Other types include quick-connect and wire-wrap.
6 bushing styles from 6 (.236) plain to 11,9 (15/32) threaded.
3 types of finish including military black.
3 approvals (UL - CSA - CECC).
4 types of sealing for terminal or front panel requirements.
Numerous accessories available for actuator and bushing
options.
APEM
www.apem.com
A-21
