LCBS-TF-16-01: Descriptioncbs lock thread female 1"; Categoryaccessories; File Size130KB，1 Pages; ManufacturerEssentra Components; Environmental Compliance

Download Datasheet Parametric Compare View All

LCBS-TF-16-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LCBS-TF-16-01	-	-	View	Buy Now

LCBS-TF-16-01 Overview

cbs lock thread female 1"

LCBS-TF-16-01 Parametric

Parameter Name	Attribute value
Datasheets
LCBS-TF Series
TCBS, TCBN, LCBS-TF, LCCBS-TF
Product Training Modules
Engineering Technology
Injection Molding and Plastics
Plastic Materials
Standard Package	1,000
Category	Hardware, Fasteners, Accessories
Family	Board Supports
Holding Type	Snap Lock
Mounting Type	Screw Mou
Between Board Heigh	1.000" (25.40mm) 1"
Length - Overall	1.402" (35.60mm)
Support Hole Diamete	0.157" (4.00mm)
Support Panel Thickness	0.062" (1.57mm) 1/16"
Mounting Hole Diamete	-
Mounting Panel Thickness	-
Features	6-32 Thread
Material	Nyl
Other Names	21069057LCBSTF1601

Preview

Download Datasheet

View All

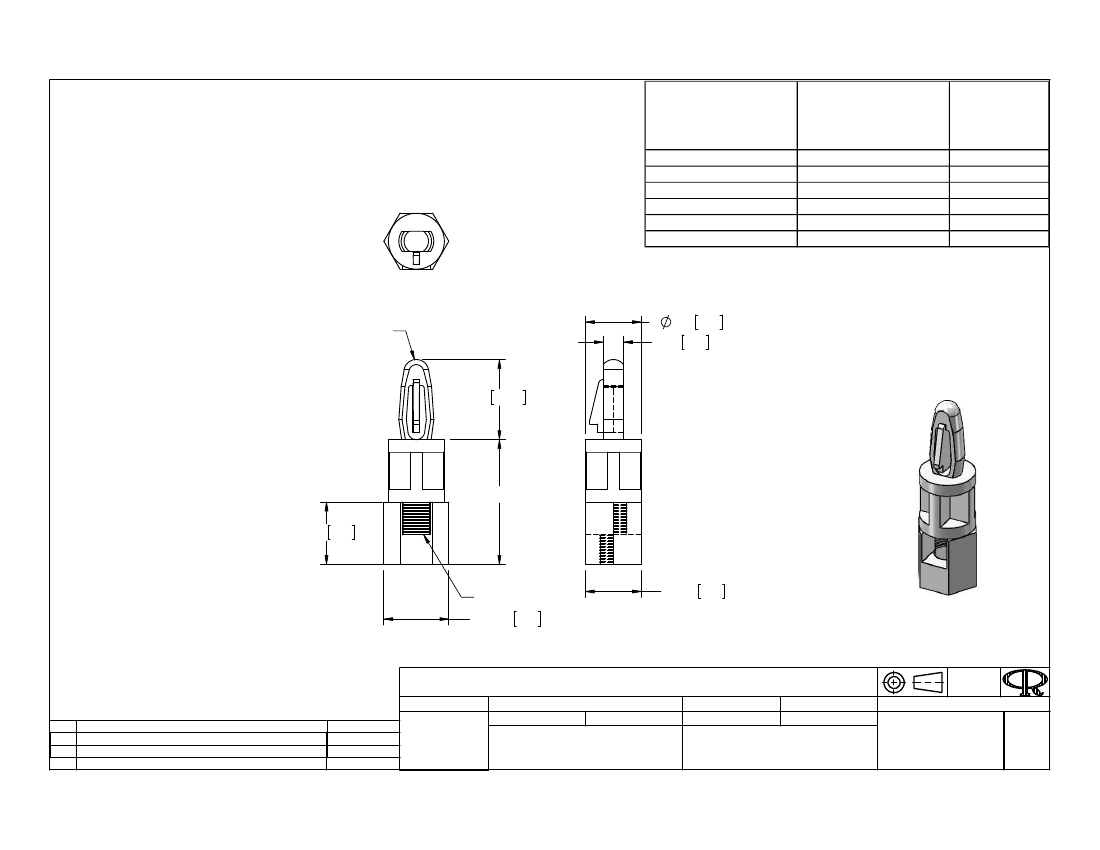

MATERIAL: NYLON 6/6 MATERIAL: NYLON 6/6

DIM.

UL 94 V-2 (RMS-19)

UL 94 V-2 (RMS-01)

"A"±.015 [0.4]

COLOR: NATURAL

PART NO.

LCBS-TF-6-01

LCBS-TF-6-19

3/8 [9.5]

LCBS-TF-8-01

LCBS-TF-8-19

1/2 [12.7]

LCBS-TF-10-01

LCBS-TF-10-19

5/8 [15.9]

LCBS-TF-12-01

LCBS-TF-12-19

3/4 [19.1]

LCBS-TF-14-01

LCBS-TF-14-19

7/8 [22.2]

LCBS-TF-16-01

LCBS-TF-16-19

1 [25.4]

TO SNAP-LOCK IN A .156.003

[4±0.08] DIA. HOLE, IN A

.062 [1.57] PANEL THICKNESS

.28 7.1

.10 2.5

.40 10.2

"A"

5/16" 7.9

#6-32 THREAD

21/64 8.3

NOTES:

1. M4 THREAD AVAILABLE BY SPECIAL ORDER ONLY

TO ORDER, ADD "-M4" TO PART NO.

EXAMPLE: LCBSTF-M4-X-XX

2. ALTERNATE UNITS FOR REFERENCE ONLY.

E

D

-

REV.

SEE CO 200773 FOR CHANGES

REDRAWN, SEE ECN #1208 FOR CHANGES

SEE ENGINEERING FOR REV A-C

DESCRIPTION

SK

04.30.12

SK

11/29/06

--

------

ENGR. DATE

9/32 7.1

TITLE:

CREATED USING

SOLIDWORKS

LCBS, THREADED FEMALE

FILE #: LCBS-TF

SHEET: 1 OF 1

RE:

SHEET SIZE: A

DWN: SK

DT: 11/20/06

TOLERANCES

UNLESS NOTED

.XX=±.010

.XXX=±.005

FRAC.=±1/64

ANG.=±1°

RICHCO, INC.

ENG@RICHCO-INC.COM

APP: RT

CHKD: SJ

PART #

DWG IN

IN [MM]

FINAL

PRINT

TYPE

(773) 539-4060

SEE TABLE

CA

LCBS-TF-16-01 Related Products

	LCBS-TF-16-01	LCBS-TF-6-01	LCBS-TF-10-01	LCBS-TF-12-01	LCBS-TF-8-01	LCBS-TF-14-01	LCBSTF-M4-16-01	LCBSTF-M4-14-01
Description	cbs lock thread female 1"	cbs lock thread female 3/8"	cbs lock thread female 5/8"	cbs lock thread female 3/4"	cbs lock thread female 1/2"	cbs lock thread female 7/8"	CB spt thrd fem natural 1"	CB spt thrd fem natural 7/8"
Standard Package	1,000	1,000	1,000	1,000	1,000	1,000	5,000	5,000
Category	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories	Hardware, Fasteners, Accessories
Family	Board Supports	Board Supports	Board Supports	Board Supports	Board Supports	Board Supports	Board Supports	Board Supports
Holding Type	Snap Lock	Snap Lock	Snap Lock	Snap Lock	Snap Lock	Snap Lock	Snap Lock	Snap Lock
Mounting Type	Screw Mou	Screw Mou	Screw Mou	Screw Mou	Screw Mou	Screw Mou	Screw Mou	Screw Mou
Between Board Heigh	1.000" (25.40mm) 1"	0.375" (9.53mm) 3/8"	0.625" (15.88mm) 5/8"	0.750" (19.05mm) 3/4"	0.500" (12.70mm) 1/2"	0.875" (22.23mm) 7/8"	1.000" (25.40mm) 1"	0.875" (22.23mm) 7/8"
Length - Overall	1.402" (35.60mm)	0.776" (19.70mm)	1.028" (26.10mm)	1.154" (29.30mm)	0.902" (22.90mm)	1.276" (32.40mm)	1.402" (35.60mm)	1.276" (32.40mm)
Support Hole Diamete	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)
Support Panel Thickness	0.062" (1.57mm) 1/16"	0.062" (1.57mm) 1/16"	0.062" (1.57mm) 1/16"	0.062" (1.57mm) 1/16"	0.062" (1.57mm) 1/16"	0.062" (1.57mm) 1/16"	0.062" (1.57mm) 1/16"	0.062" (1.57mm) 1/16"
Features	6-32 Thread	6-32 Thread	6-32 Thread	6-32 Thread	6-32 Thread	6-32 Thread	M4 Thread	M4 Thread
Material	Nyl	Nyl	Nyl	Nyl	Nyl	Nyl	Nyl	Nyl
Other Names	21069057LCBSTF1601	21069052LCBS-TF- 6-01LCBS-TF- 6-01-NDLCBSTF601	21069054LCBSTF1001	21069055LCBSTF1201	21069053LCBS-TF- 8-01LCBS-TF- 8-01-NDLCBSTF801	21069056LCBSTF1401	-	-
