3312190371: DescriptionDry Reed Relay, SPST, Momentary, 0.001A (Coil), 12VDC (Coil), 144mW (Coil), 0.5A (Contact), 175VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size134KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric View All

3312190371 Overview

Dry Reed Relay, SPST, Momentary, 0.001A (Coil), 12VDC (Coil), 144mW (Coil), 0.5A (Contact), 175VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

3312190371 Parametric

Parameter Name	Attribute value
Maker	Standex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	5.8 mm
body height	8 mm
Body length or diameter	20.5 mm
Maximum coil current (DC)	0.001 A
Coil operating voltage (DC)	8.4 V
Coil power	144 mW
Coil release voltage (DC)	1.8 V
Coil resistance	1100 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.5A@175VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@175VDC
Maximum contact voltage (AC)	175 V
Maximum contact voltage (DC)	175 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	3312190371
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.7 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	BULK
physical size	20.5mm x 5.8mm x 8mm
Guideline	UL
Relay action	MOMENTARY
Relay function	SPST
Relay type	DRY REED RELAY
release time	1.5 ms
seal	WATER PROOF
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
Base Number Matches	1

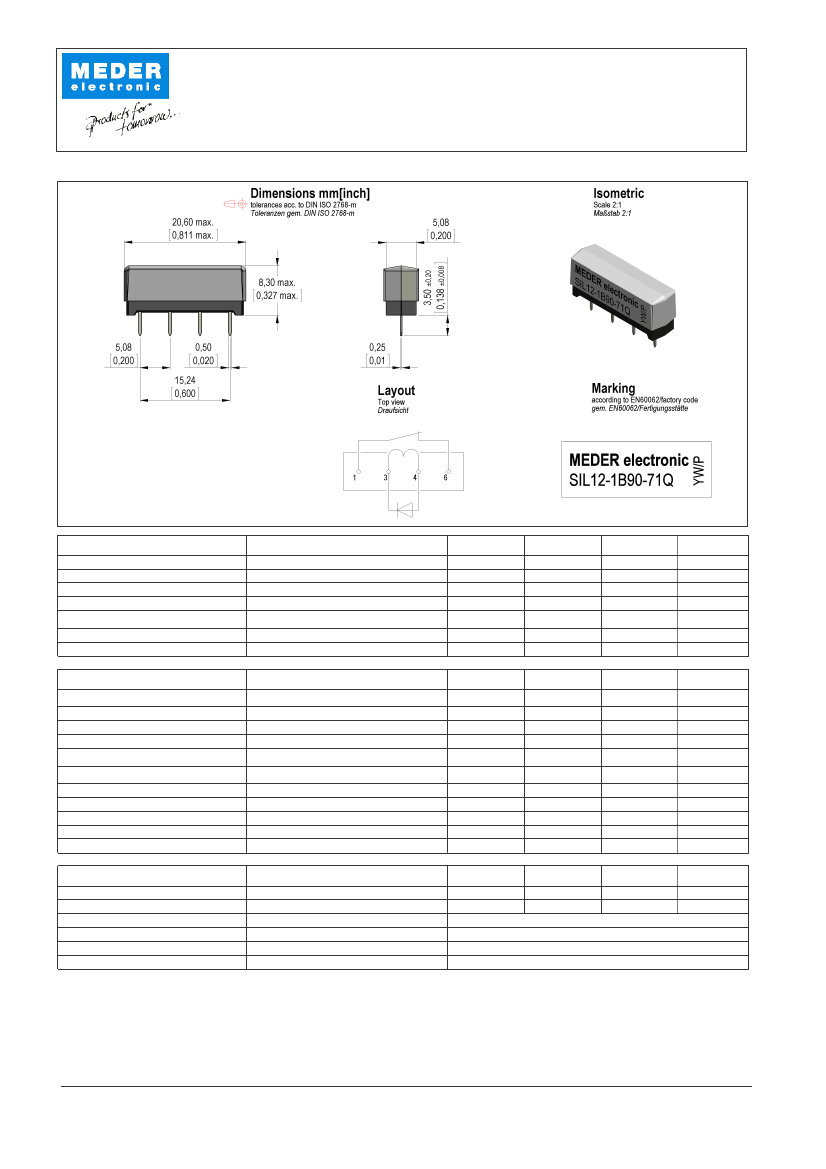

Preview
