353621570: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size272KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

353621570 Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE

353621570 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TUBE PACKAGE & ROHS COMPLIANT
body width	0.217 inch
subject depth	0.335 inch
body length	1.272 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON CU
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	8.0064 N
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	35362
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

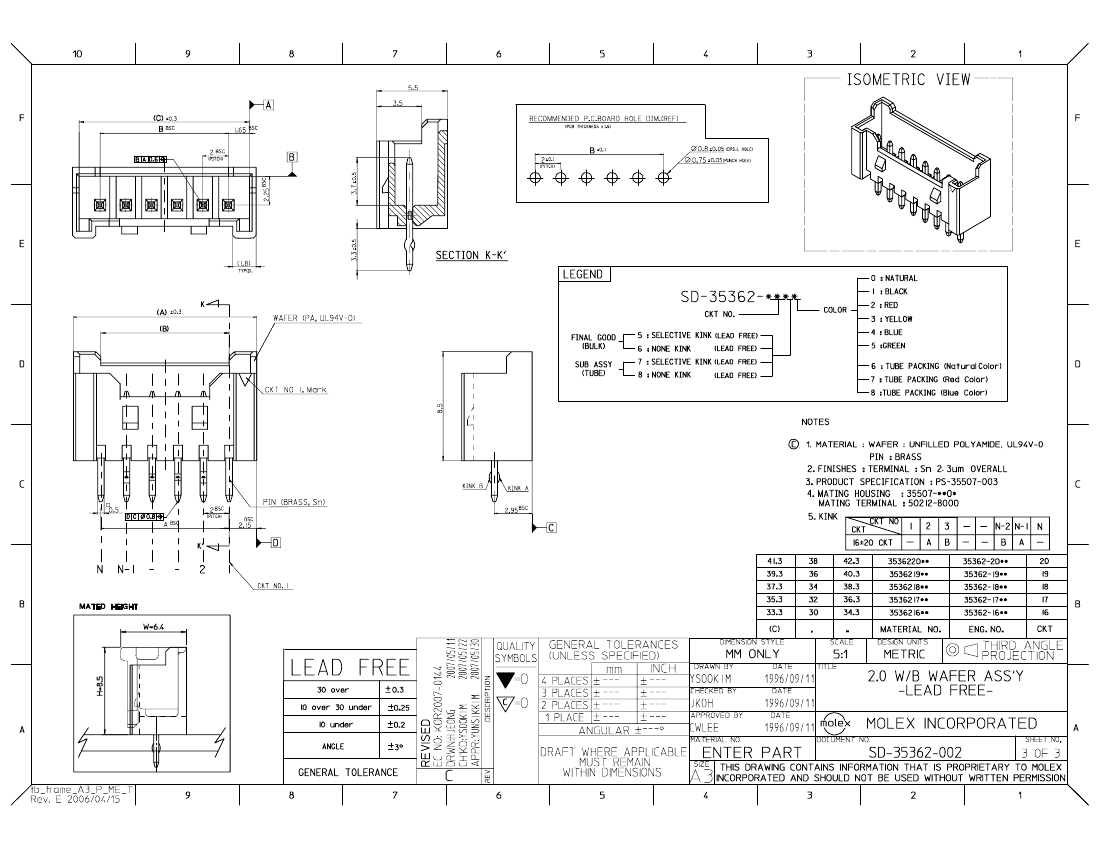

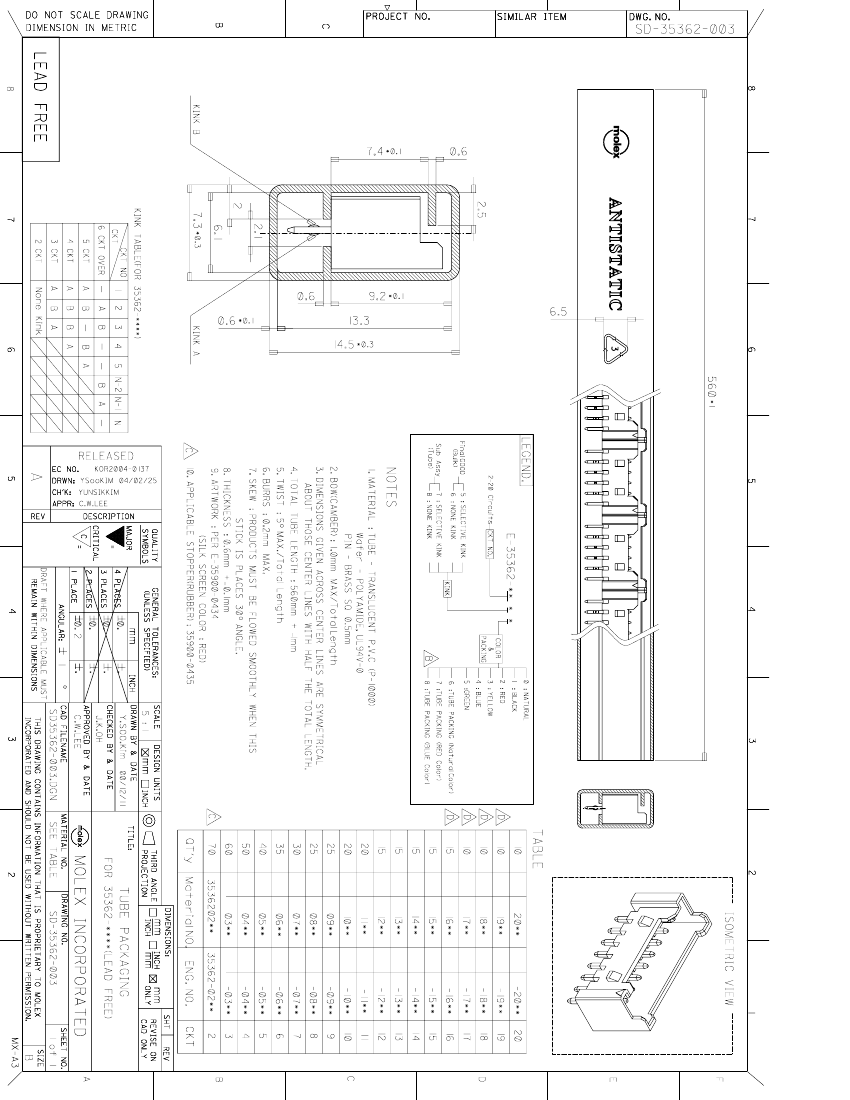

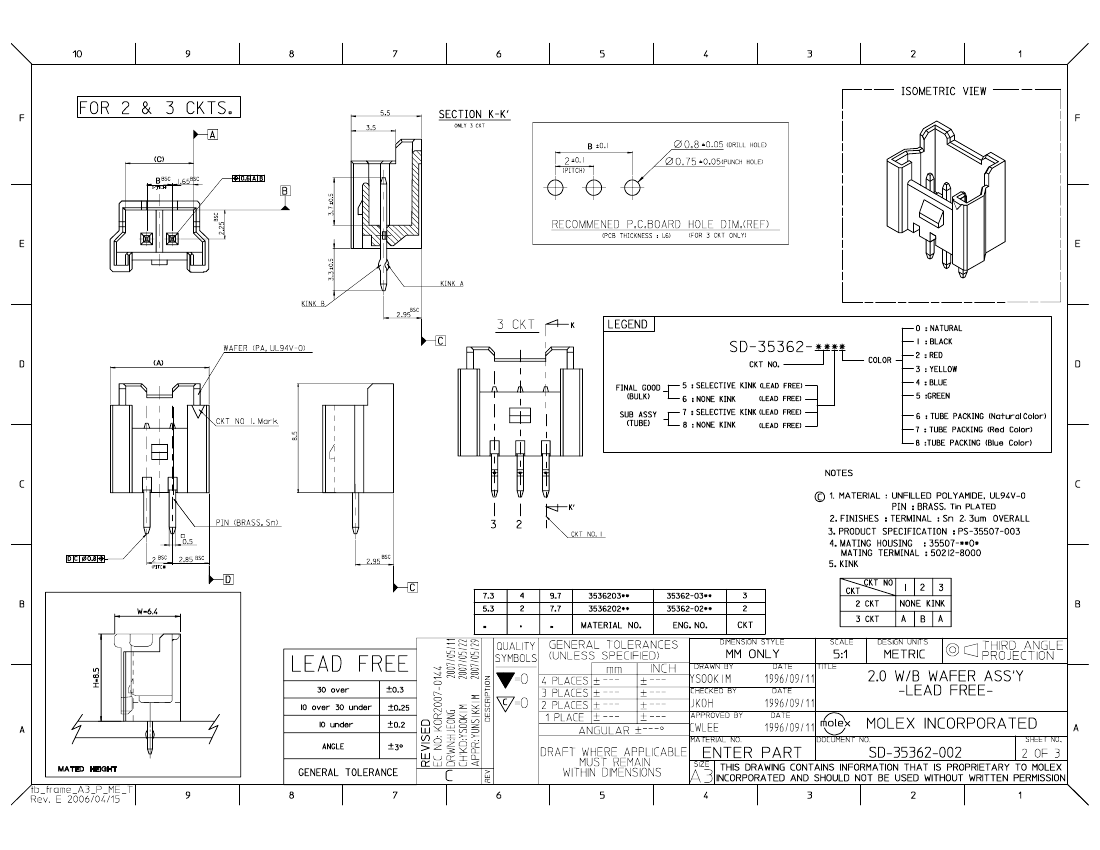

Preview

Download Datasheet

View All

353621570 Related Products

	353621570	353620470	353620570	353620970	353621070	353620870	353621170	353621470	353620770
Description	Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, LEAD FREE	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, LEAD FREE	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, LEAD FREE	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, LEAD FREE	Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, LEAD FREE
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	unknown	unknown	unknown	compliant
body width	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch
subject depth	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch
body length	1.272 inch	0.406 inch	0.484 inch	0.799 inch	0.878 inch	0.72 inch	0.957 inch	1.193 inch	0.642 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON CU	SN	NOT SPECIFIED	SN	SN ON CU	SN	SN ON CU	SN ON CU	SN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	NOT SPECIFIED	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	NYLON	POLYAMIDE	POLYAMIDE	POLYAMIDE	NYLON	POLYAMIDE	NYLON	NYLON	POLYAMIDE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	4	5	9	10	8	11	14	7
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	-	conform to	conform to	conform to
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Manufacturer's serial number	35362	35362	-	35362	35362	35362	35362	35362	35362
Base Number Matches	1	1	1	1	1	1	1	1	-
