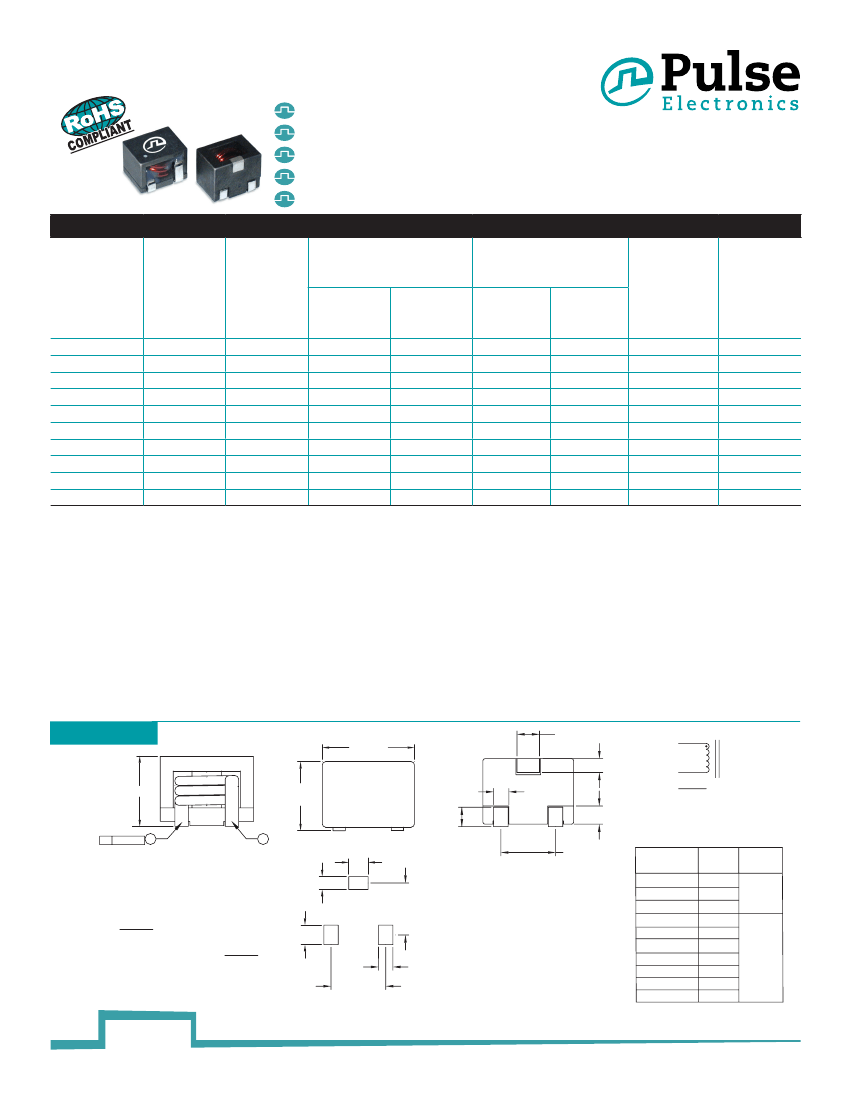

SMT Power Inductors
Round wire Coils– PG0936NL series
Inductance Range:
0.47uH to 25.0uH
Current Rating:
up to 40Apk
Footprint:
17.5mm x 16.7mm Max
Height:
10.0mm Max
No Thermal Aging
Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C
1
Inductance
2
@ Irated
(µH Typical)
0.47
0.60
0.74
1.4
2.5
3.6
5.4
8.8
15.4
23.5
Controlled Electrical Specs.
Irated
(A)
3
Part Number
Saturation
5
Current Isat
(A TYP)
25°C
80
62
50
36
28
22
18
14
11
9.2
100°C
65
48
40
30
23
18
15
11.5
9
8
PG0936.471NL
PG0936.681NL
PG0936.851NL
PG0936.162NL
PG0936.282NL
PG0936.452NL
PG0936.682NL
PG0936.113NL
PG0936.183NL
PG0936.253NL
40
40
40
31
24
22
18
14
9.8
7.0
DCR
4
(mΩ)
MAX
0.87
0.87
0.87
1.5
2.2
2.9
3.5
7.0
13.8
19.4
Inductance
@ 0Adc
(µH
±
20%)
0.47
0.68
0.85
1.6
2.8
4.5
6.8
11.0
18.0
25.0
Heating Current
6
Idc
(A TYP)
40
40
40
31
24
22
21
14
9.8
7.0
Core Loss Factor
7
(K2)
20.0
29.0
36.3
45.5
59.8
76.9
96.8
117.5
153.8
178.0
Notes:
1. Actual temperature of the component during system operation (ambient plus temperature rise) must be
within the standard operating range.
2. Inductance at Irated is a typical inductance value for the component taken at rated current.
3. The rated current as listed is either the saturation current (@ 25°C) or the heating current depending on
which value is lower.
4. The DCR of the part is measured at an ambient temperature of 20°C±3°C from point a to b as shown below on
the mechanical drawing.
5. The saturation current, Isat, is the current at which the component inductance drop by 20% (typical) at an
ambient temperature. This current is determined by placing the component in the specified ambient envi-
ronment and applying a short duration pulse current (to eliminate self-heating effect) to the component.
6. The heating current, Idc, is the DC current required to raise the component temperature by approximately
40°C. The heating current is determined by mounting the component on a typical PCB and applying current
for 30 minutes. The temperature is measured by placing the thermocouple on top of the unit under test. Take
note that the components’ performance varies depending on the system condition. It is suggested that the com-
ponent be tested at the system level, to verify the temperature rise of the component during system operation.
7. Core loss approximation is based on published core data:
Core Loss = K1 * (f)
1.72
* (K2ΔI)
2.41
in mW
K1 = 8.68E-10
f = switching frequency in KHz
K1 & K2 = core loss factors
ΔI=
delta I across the component in Ampere
K2ΔI=one half of the peak to peak flux density across the component in Gauss
8. Unless otherwise specified, all testing is made at 100kHz, 0.1Vac
9. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (i.e. PG0936.682NL
becomes PG0936.682NLT). Pulse complies with industry standard tape and reel specification EIA481. The tape
and reel for this product has a width (W=32.0mm), pitch (Po=24.0mm) and depth (Ko=10.8mm).
PG0936.XXXNL
H MAX
Mechanicals
.689MAX
[17.50]
.098
[2.50]
3
.098
[2.50]
Schematics
1
2
3
.657MAX
[16.70]
PULSE
PG0936.XXXNL
DATE CODE
CTRY MFG
TOP VIEW
.197
[5.00]
.118±0.012
[3.00±0.30]
(X)
CORE SLOT
1
BOTTOM VIEW
2
.449±.020
[11.40±0.50]
PIN3 IS MECHANICAL SUPPORT ONLY
HAS NO INTERNAL ELECTRICAL CONNECTION
d
.005[.13]
a
FRONT VIEW
b
3 SURFACES
PART NUMBER
PG0936.471NL
PG0936.681NL
X
(±0.5)
2.5
2.5
2.5
2.5
2.5
2.5
2.5
1.4
1.4
1.4
Height
H
Weight...........................9.8
grams
Tape and Reel....................200/tray
Dimensions:
Inches
mm
.010
0,25
.177
[4.50]
.496
[12.60]
.197
[5.00]
.315[8.0]
PG0936.851NL
PG0936.162NL
PG0936.282NL
PG0936.452NL
.157
[4.00]
PG0936.682NL
PG0936.113NL
PG0936.183NL
PG0936.253NL
Unless otherwise specified, all tolerences are
±
.394[10.0]
.449
[11.40]
SUGGESTED LAND PATTERN
(REFERENCE ONLY)
1
pulseelectronics.com
P705.A (3/13)
SMT Power Inductors
Round wire Coils– PG0936NL series

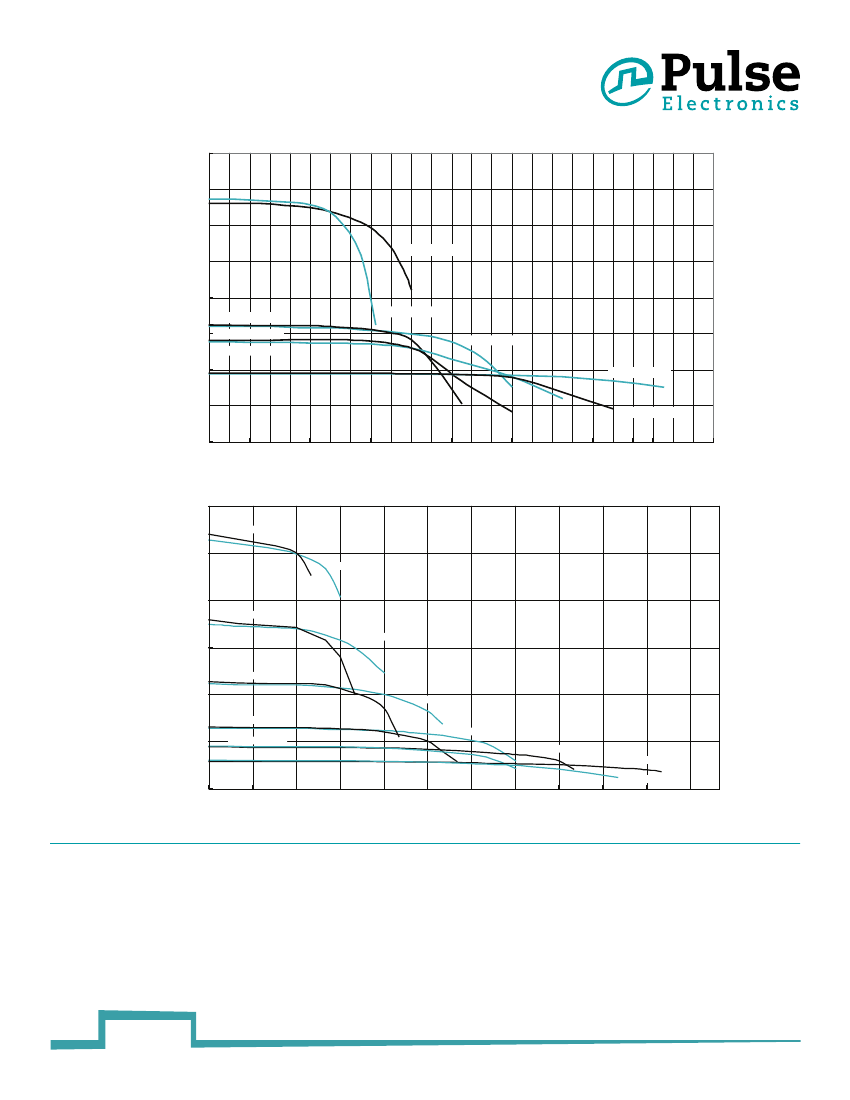

Typical Inductance vs DC Bias
2
1.5
INDUCTANCE(uH)
.162NL@25°C
1
.851NL@100°C
.681NL@100°C
.681NL@25°C
.162NL@100°C
.851NL@25°C
.471NL@25°C
0.5
.471NL@100°C
0
0
4
8
12 16 20 24 28 32 36 40 44 48 52 56 60 64 68 72 76 80 84 88 92 96 100
30
.253NL@100°C
DC Bias (A)
Typical Inductance vs DC Bias
25
20
15
.113NL@100°C
.253NL@25°C
INDUCTANCE(uH)
.183NL@100°C
.183NL@25°C
10
.682NL@100°C
.113NL@25°C
.682NL@25°C
.452NL@25°C
.282NL@25°C
.282NL@100°C
5
0
0
.452NL@100°C
3
6
9
12
15
18
21
24
27
30
33
DC Bias (A)
For More Information
Pulse Worldwide
Headquarters
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
Pulse China Headquarters
Pulse North China
Pulse South Asia
Pulse North Asia
B402, Shenzhen Academy of
Room 2704/2705
135 Joo Seng Road
3F, No. 198
Aerospace Technology Bldg.
Super Ocean Finance Ctr.
#03-02
Zhongyuan Road
10th Kejinan Road
2067 Yan An Road West
PM Industrial Bldg.
Zhongli City
High-Tech Zone
Shanghai 200336
Singapore 368363
Taoyuan County 320
Nanshan District
China
Taiwan R. O. C.
Shenzen, PR China 518057
Tel: 886 3 4356768
Tel: 858 674 8100
Tel: 49 7032 7806 0
Tel: 86 755 33966678
Tel: 86 21 62787060
Tel: 65 6287 8998
Fax: 886 3 4356823 (Pulse)
Fax: 858 674 8262
Fax: 49 7032 7806 12
Fax: 86 755 33966700
Fax: 86 2162786973
Fax: 65 6287 8998
Fax: 886 3 4356820 (FRE)
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be
trademarks or registered trademarks of their respective owners. © Copyright, 2013. Pulse Electronics, Inc. All rights reserved.
Pulse Europe
Zeppelinstrasse 15
71083 Herrenberg
Germany
2
pulseelectronics.com
P705.A (3/13)
