PAC
PAC-S400-HE20-V1-3M
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

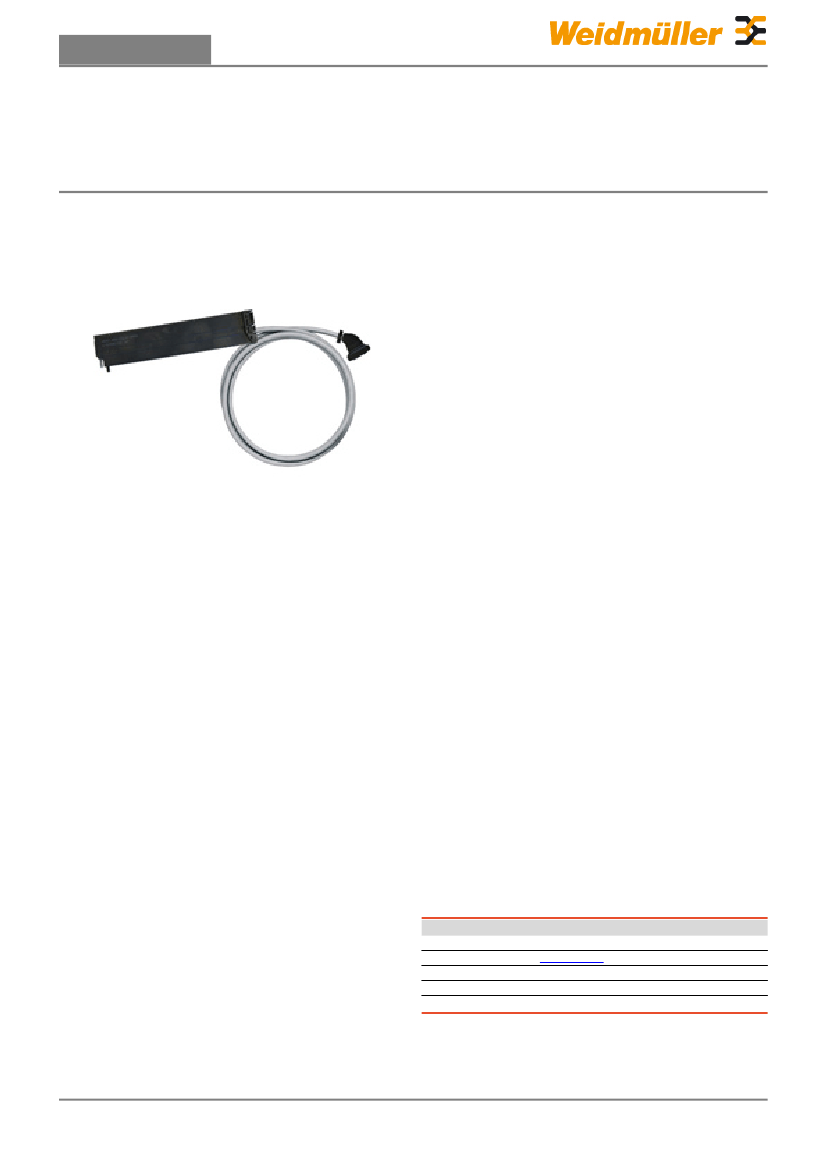

The pre-assembled PAC cable provide the electrical
and logical connection between the PLC and the
PLC interfaces. These cables consist of the following
elements:
• PLC connection from the manufacturer.
• Multi-pole LIYY or LY YCY (shielded) cable with 0.14
mm² or 0.25 mm² cross-section.
• SubD or RSV connectors for the connection to the
interface.
The cables are automatically tested for continuity and
isolation in order to guarantee their special functionality
for which they were developed.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
PAC-S400-HE20-V1-3M
7789291030
Pre-assembled cable, PAC, Cable LiYY, 0.25 mm²
8430243968362
1 pc(s).
Creation date August 13, 2013 3:50:45 PM CEST
Catalogue status 08.07.2013 / We reserve the right to make technical changes.
1
Data sheet...
PAC
PAC-S400-HE20-V1-3M
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
448 g
Dimensions and weights
Net weight
Temperatures
Operating temperature
-10...+50°C
Storage temperature
-10...+60 °C
General Data
Connector PLC side
Number of poles, min.
Cable
Material
SIEMENS S7400
6ES7492-1CL00-0AA0
48P
20-pole
Cable LiYY
PVC
Interface connector
Outer diameter
Cable length
Wire cross-section
CONECTOR CABLE PLANO
HE10 20P
8.6 ± 1 mm
3m
0.25 mm²
Electrical Data
Rated voltage (text)
Total current, max.
High voltage test
≤ 60 Vdc ≤ 25 Vac
3A
1 KV/1s
Permissible current strength per path,
max.
Resistance
1A
≤ 80 mΩ/m
Classifications
eClass 6.2
27-14-11-52
eClass 7.1
27-14-11-52
Notes
Notes
The figure shows a generic product on offer.
Approvals
Approvals
Creation date August 13, 2013 3:50:45 PM CEST
Catalogue status 08.07.2013 / We reserve the right to make technical changes.
2
