HBA Zone5 Low Voltage Wall Switches
DAYLIGHTING CONTROLS
PROJECT INFORMATION
Project Name
Catalog No.
Date
CALIFORNIA
24
TITLE
24
VDC
LOW
Z5-SW-GAV
PRODUCT FEATURES
•
•
•
•
•
•
•
•
•
Supports up to 4 zones of lighting control
Attractive, architecturally pleasing design
General – A/V lighting control with optional dimming control
Whiteboard lighting control
Master and individual row ON/OFF control
Color-coded, plug and play installation
All switches mount to standard single or multi-gang wall boxes
Multi-gang wall plates available
Five-year warranty
Fits Standard
Decorator Style
Wallplate
(sold separately)
COMPLIANT
VOLTAGE
The HBA Zone5 Low Voltage Wall Switches provide manual control of the HBA Zone5
Daylight Harvesting System. The Zone5 system consists of two types of switches –
Lighting Control Switches and Master/Row Control Switches.
The Lighting Control Switches include a General – A/V switch that enables users to
switch between General Lighting and Audio Visual Lighting, a General – A/V lighting
dimming switch that raises and lowers light levels in both modes, a whiteboard lighting
switch that can control up to two independent whiteboard lights, and a Study Time
switch that provides uninterrupted lighting during periods of low activity. The Master/
Row Control Switches include a Master ON/OFF switch that turns all lighting ON or
OFF, and individual Row (1 – 4) ON/OFF switches that control each row of lighting
individually. All Zone5 switches are color coded and provide CAT5 plug and play

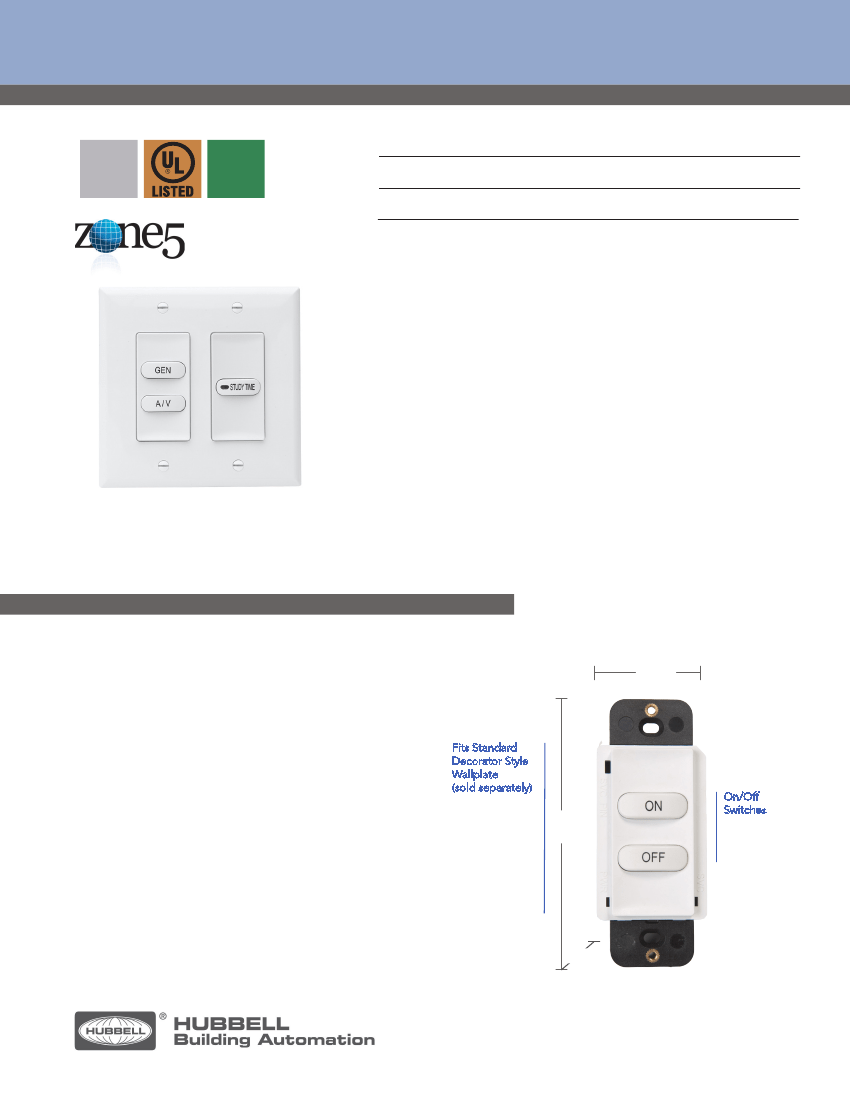

Z5-SW-ST
installation to the Zone5 Control Module
1.6”
On/Off
Switches
4.2”
1.4”
Z5-SW-MC
General Specifications
Power Requirements
Each switch: 100mA @ 30VDC Max – Provided by Zone5 low voltage color coded plug and play cable
(ordered separately)
Master/Row control switches: Use with yellow cable
Lighting Control Switches: Use with blue cable
Indoor use only
Operating temperature: 32°to 122°F (0° to 50°C)
Relative humidity (non-condensing): 10% to 90%
Housing – Rugged, high-impact, injection-molded plastic
4.2” L x 1.6” W x 1.4” D
1.6 oz
White
Switches may be mounted individually in a single gang switch box or ganged together in a
multi-gang switch box
NOTE: When ganging multiple switches make sure the switches are of the same color-coded type.
Decorator-style wall plates available separately
Five years
Operating environment
Construction
Dimensions
Weight:
Color
Mounting
Warranty
Ordering Information
CAT5-3IN-YL
LIGHTING CONTROL SWITCHES
AND CABLES
Z5-SW-GAV
Zone5 General - A/V Mode
Switch, White
Z5-SW-AVD
Zone5 General - A/V
Dimming Switch, White
Z5-SW-AVD
Zone5 Study Time Switch,
White
Z5-SW-WB
Zone5 Whiteboard Switch,
White
CAT5-50F-BL
Zone5 Cable for Lighting
Control Switches, 50ft, Blue
CAT5-100F-BL
Zone5 Cable for Lighting
Control Switches, 100ft, Blue
CAT5-3IN-BL
Zone5 Jumper Cable for
Lighting Control Switches,
3 inches, Blue
MASTER/ROW CONTROL SWITCHES
AND CABLES
Z5-SW-MC
Zone5 Master ON/OFF
Switch, White
Z5-SW-RCR1
Zone5 Row 1 Control Switch,
White
Z5-SW-RCR2
Zone5 Row 2 Control Switch,
White
Z5-SW-RCR3
Zone5 Row 3 Control Switch,
White
Z5-SW-RCR4
Zone5 Row 4 Control Switch,
White
CAT5-50F-YL
Zone5 Cable for Master/Row
Control Switches, 50ft, Yellow
CAT5-100F-YL
Zone5 Cable for Master/Row
Control Switches, 100ft, Yellow
CAT5-3IN-YL
Zone5 Cable for Master/Row
Control Switches, 3 inches,
Yellow
WALL SWITCH PLATES
Z5-WP-1G-WH
Zone5 Wall Switch
Plate, Decorator Style,
1-gang, White
Z5-WP-2G-WH
Zone5 Wall Switch
Plate, Decorator Style,
2-gang, White
Z5-WP-3G-WH
Zone5 Wall Switch
Plate, Decorator Style,
3-gang, White
Z5-WP-4G-WH
Zone5 Wall Switch
Plate, Decorator Style,
4-gang, White
Z5-WP-5G-WH
Zone5 Wall Switch
Plate, Decorator Style,
5-gang, White
