M203225TCNFREQ: DescriptionHCMOS Output Clock Oscillator, 1.5MHz Min, 80MHz Max, ROHS COMPLIANT, LEADLESS PACKAGE-4; CategoryPassive components oscillator; File Size365KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

M203225TCNFREQ Overview

HCMOS Output Clock Oscillator, 1.5MHz Min, 80MHz Max, ROHS COMPLIANT, LEADLESS PACKAGE-4

M203225TCNFREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	35%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Maximum operating frequency	80 MHz
Minimum operating frequency	1.5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.3mm
longest rise time	6 ns
Maximum supply voltage	3 V
Minimum supply voltage	2.7 V
Nominal supply voltage	2.85 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

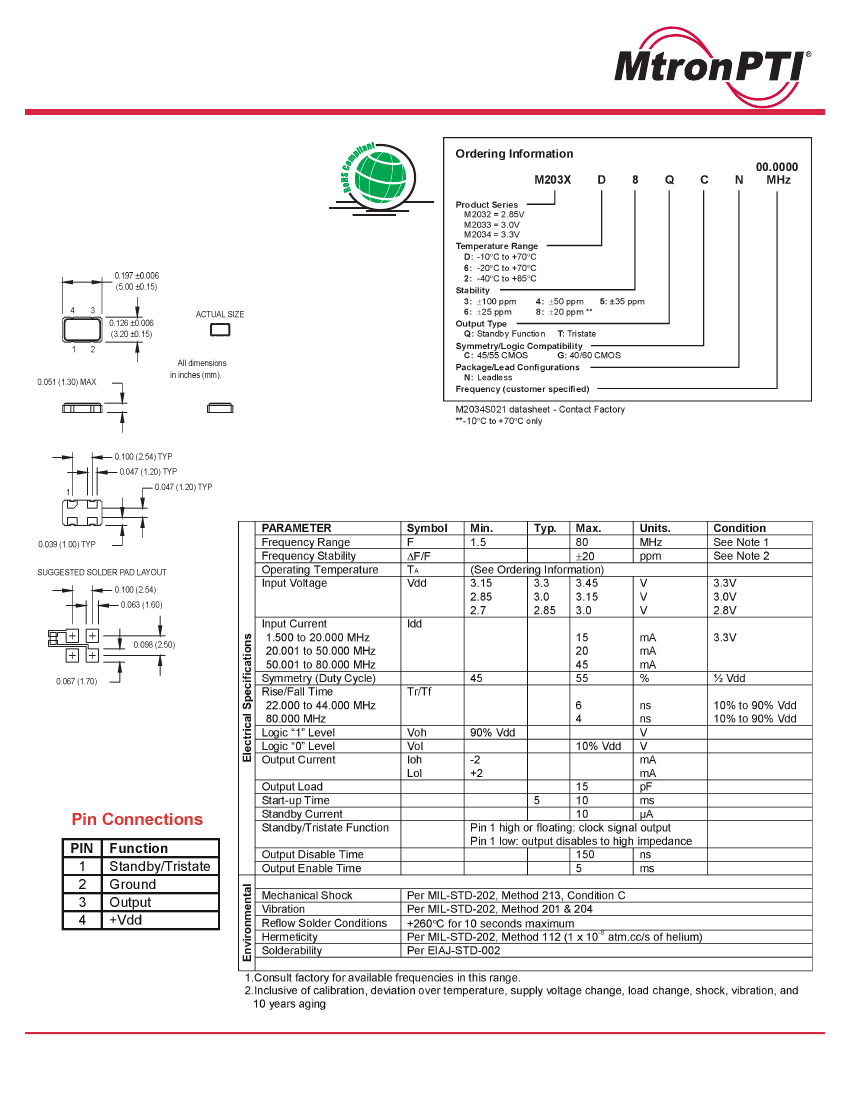

M2032, M2033, and M2034 Series

•

±

20 ppm stability

Tri-state or standby function

Ideal for WLAN and IEEE802.11

Applications

Low power applications

3.2 x 5.0 x 1.3 mm HCMOS Compatible Surface Mount Oscillators

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 7-9-08
