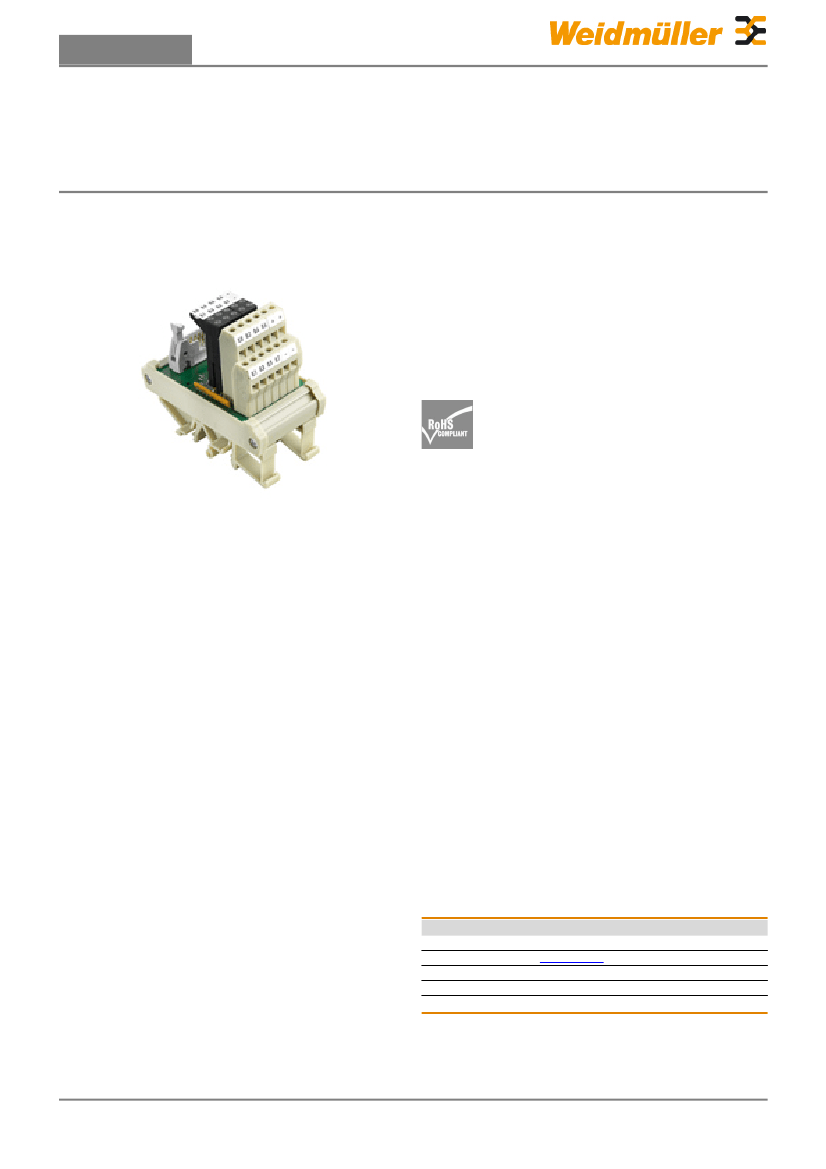

Data sheet
RS F10 I/O8 LD LPK2
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Passive RS F40 or RS F10 interface elements for 32
or 8 signals: these enable an efficient connection of
peripherals (sensors and actuators) to the input/output
modules of the PLC using pre-assembled cables.
The main characteristics are:
• Tension-clamp or screw connection system
• Signals grouped according to bytes.
• 1-, 2- or 3-wire technology.
• Extremely compact modules in RS 45 profile section for
installation on standard TS35 mounting rail.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
RS F10 I/O8 LD LPK2
8224260000
1-wire, Screw connection
4008190208127
1 pc(s).
Creation date December 18, 2013 8:37:11 PM CET
Catalogue status / We reserve the right to make technical changes.
1
Data sheet
RS F10 I/O8 LD LPK2
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
40 mm
80 mm
Width
Net weight
Dimensions and weights
Length
Height
87 mm
123 g
Temperatures
Operating temperature
0...+55°C
Storage temperature
-40...+70 °C
General data
LED status display per channel
yellow
LED status of the supply voltage
green
Connection data
Connection on control side
Connection (field side)
Wiring system
Connector according
IEC60603-13/DIN41651
LPK 2H 5.08mm
1-wire
Number of poles (control side)
Connection supply
10-pole
LPK 2H 5.08mm
Ratings data
Max. current per channel
According to
Surge voltage category
Insulation test voltage
1A
Insulation coordination (EN50178)
DIN EN 50178
III
0.35 kVAC
Rated insulation voltage
Pollution severity level
≤ 50 V DC
2
Connection field
Type of connection
Clamping range, max.
Solid, max. H05(07) V-U
Flexible, max. H05(07) V-K
Sleeve with plastic collar, max.
Max. wire cross-section, AWG [field]
Tightening torque, max.
Screw connection
1.5 mm²
6 mm²
4 mm²
2.5 mm²
AWG 12
0.6 Nm
Clamping range, min.
Solid, min. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible with sleeve, max.
Min. wire cross-section, AWG [field]
Tightening torque, min.
Stripping length
0.15 mm²
0.5 mm²
0.5 mm²
2.5 mm²
AWG 26
0.5 Nm
6 mm
Supply connection
Type of connection
Clamping range, max.
Solid, max. H05(07) V-U
Flexible, max. H05(07) V-K
Wire cross-section, min. AWG
Tightening torque, min.
Stripping length
Screw connection
1.5 mm²
6 mm²
4 mm²
AWG 26
0.5 Nm
13 mm
Clamping range, min.
Solid, min. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible with sleeve, max.
Wire cross-section, max. AWG
Tightening torque, max.
0.15 mm²
0.5 mm²
0.5 mm²
4 mm²
AWG 10
0.6 Nm
Classifications
ETIM 3.0
eClass 5.1
eClass 7.1
EC001419
27-24-22-04
27-24-22-04
UNSPSC
eClass 6.2
30-21-18-01
27-24-22-04
Creation date December 18, 2013 8:37:11 PM CET
Catalogue status / We reserve the right to make technical changes.
2
Data sheet
RS F10 I/O8 LD LPK2
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Approvals
Approvals
ROHS
Conform
Creation date December 18, 2013 8:37:11 PM CET
Catalogue status / We reserve the right to make technical changes.
3
Data sheet
RS F10 I/O8 LD LPK2
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings
Creation date December 18, 2013 8:37:11 PM CET
Catalogue status / We reserve the right to make technical changes.
4
