LQH88PN1R5N38L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LQH88PN1R5N38L

LQH88PN1R5N38L: Descriptioninductor power 1.5uh 7.1A 3131; CategoryPassive components inductor; File Size68KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LQH88PN1R5N38L Overview

inductor power 1.5uh 7.1A 3131

LQH88PN1R5N38L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
package instruction	CHIP, 3131
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	3232
structure	Magnetically Shielded
DC Resistance	7.1 Ω
Nominal inductance(L)	1.5 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LQH88P
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	3.8 mm
Package length	8 mm
Package form	SMT
Package width	8 mm
method of packing	TR, Plastic, 7 Inch
Maximum rated current	0.008 A
self resonant frequency	60 MHz
series	LQH88P
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR IS MEASURED AT 30% TOLERANCE
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

Inductors (Coils) > Chip Inductor (Chip Coil) > Power Inductor (Wire Wound Type)

Data Sheet

Chip Inductor (Chip Coil)

Dimensions

Power Inductor (Wire Wound Type)

LQH88P Series (3131 Size)

Packaging

Code

8.0±0.2

3.8±0.2

Packaging

180mm Embossed Tape

330mm Embossed Tape

Minimum Quantity

250

1000

8.0±0.2

3.0 (typ.)

1.0 (typ.)

1.9±0.2

(in mm)

Rated Value (p: packaging code)

Part Number

LQH88PN1R0N38p

LQH88PN1R5N38p

LQH88PN2R2N38p

LQH88PN3R3N38p

LQH88PN4R7N38p

LQH88PN6R8N38p

LQH88PN100M38p

LQH88PN150M38p

LQH88PN220M38p

LQH88PN330M38p

LQH88PN470M38p

LQH88PN680M38p

LQH88PN101M38p

Inductance

1.0µH±30%

1.5µH±30%

2.2µH±30%

3.3µH±30%

4.7µH±30%

6.8µH±30%

10µH±20%

15µH±20%

22µH±20%

33µH±20%

47µH±20%

68µH±20%

100µH±20%

Rated Current

(Based on Inductance Change)

11.20A

8.50A

8.00A

7.00A

6.00A

4.50A

3.60A

3.00A

2.70A

1.90A

1.50A

1.25A

1.00A

Rated Current

(Based on Temperature Rise)

8.00A

7.10A

6.40A

5.00A

4.20A

3.80A

3.15A

2.45A

2.25A

1.75A

1.45A

1.10A

1.00A

DC Resistance

0.006ohm±30%

0.008ohm±30%

0.009ohm±30%

0.013ohm±30%

0.017ohm±30%

0.022ohm±30%

0.029ohm±30%

0.041ohm±30%

0.066ohm±30%

0.095ohm±30%

0.157ohm±30%

0.190ohm±30%

0.265ohm±30%

Self Resonance

Frequency (min.)

100MHz

60MHz

50MHz

35MHz

30MHz

20MHz

18MHz

13MHz

10MHz

9MHz

7MHz

4MHz

Test Frequency: 100kHz

Class of Magnetic Shield: Magnetic shield of magnetic powder in resin

Operating Temperature Range (Self-temperature rise is included): -40°C to +125°C

Operating Temperature Range (Self-temperature rise is not included): -40°C to +85°C

Only for reflow soldering.

(0.3)

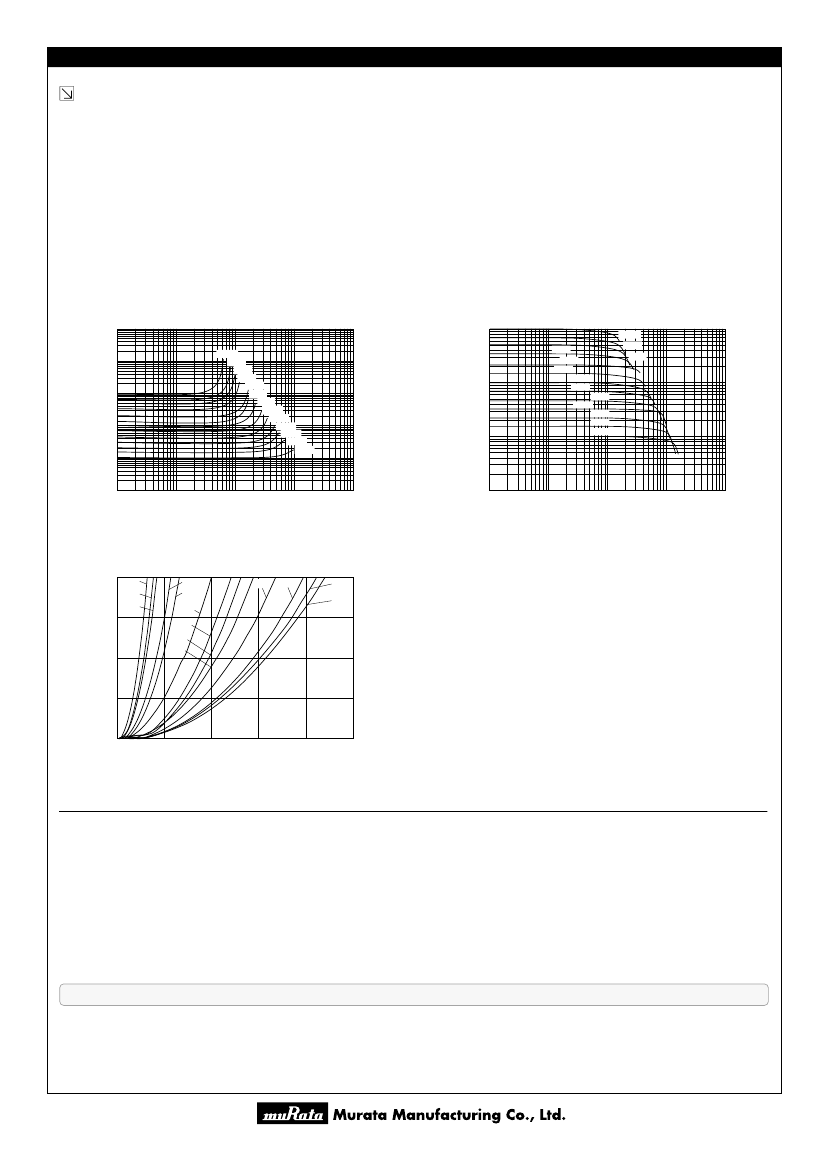

Continued on the following page.

This data sheet is applied for CHIP INDUCTORS (CHIP COILS) used for General Electronics equipment for your design.

Note:

1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our

products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.

2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product

specifications or transact the approval sheet for product specifications before ordering.

2010.9.9

http://www.murata.com/

LQH88PN1R5N38L Related Products

	LQH88PN1R5N38L	LQH88PN470M38L	LQH88PN101M38L	LQH88PN1R0N38L	LQH88PN2R2N38L	106RN136P-3C1-18.0	UPW2A010MDD1CT
Description	inductor power 1.5uh 7.1A 3131	inductor power 47uh 1.45a 3131	inductor power 100uh 1.00a 3131	inductor power 1.0uh 8.0A 3131	inductor power 2.2uh 6.40a 3131	D Type Connector, 136 Contact(s), Male, Crimp Terminal, Plug	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 1uF,
Reach Compliance Code	compli	compli	compli	compli	compli	unknown	compliant
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	conform to
Maker	Murata	Murata	Murata	Murata	Murata	-	-
package instruction	CHIP, 3131	CHIP, 3131	CHIP, 3131	CHIP, 3131	CHIP, 3131	-	,
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
uppercase and lowercase codes	3232	3232	3232	3232	3232	-	-
structure	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	-	-
DC Resistance	7.1 Ω	1.45 Ω	1 Ω	8 Ω	6.4 Ω	-	-
Nominal inductance(L)	1.5 µH	47 µH	100 µH	1 µH	2.2 µH	-	-
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	-	-
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	-
Manufacturer's serial number	LQH88P	LQH88P	LQH88P	LQH88P	LQH88P	106	-
Number of functions	1	1	1	1	1	-	-
Number of terminals	2	2	2	2	2	-	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	-	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-	-55 °C
Package height	3.8 mm	3.8 mm	3.8 mm	3.8 mm	3.8 mm	-	-
Package length	8 mm	8 mm	8 mm	8 mm	8 mm	-	-
Package form	SMT	SMT	SMT	SMT	SMT	-	Radial
Package width	8 mm	8 mm	8 mm	8 mm	8 mm	-	-
method of packing	TR, Plastic, 7 Inch	TR, Plastic, 7 Inch	TR, Plastic, 7 Inch	TR, Plastic, 7 Inch	TR, Plastic, 7 Inch	-	Bulk
Maximum rated current	0.008 A	0.157 A	0.265 A	0.006 A	0.009 A	-	-
self resonant frequency	60 MHz	7 MHz	4 MHz	100 MHz	50 MHz	-	-
series	LQH88P	LQH88P	LQH88P	LQH88P	LQH88P	-	PW
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	-
shield	YES	YES	YES	YES	YES	-	-
special characteristics	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE	DCR IS MEASURED AT 30% TOLERANCE	-	-
surface mount	YES	YES	YES	YES	YES	-	-
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	-	-
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	-	-
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	-	-
Tolerance	30%	20%	20%	30%	30%	-	-
