3G14E-120M-FREQ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 3G14E-120M-FREQ

3G14E-120M-FREQ: DescriptionCMOS/TTL Output Clock Oscillator, 0.625MHz Min, 50MHz Max, ROHS COMPLIANT, DIP-14/4; CategoryPassive components oscillator; File Size114KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

3G14E-120M-FREQ Overview

CMOS/TTL Output Clock Oscillator, 0.625MHz Min, 50MHz Max, ROHS COMPLIANT, DIP-14/4

3G14E-120M-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Euroquartz
Reach Compliance Code	compliant
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	120 ppm
frequency stability	50%
linearity	10%
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	0.625 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS/TTL
Output load	2 TTL, 15 pF
physical size	20.2mm x 12.8mm x 5.08mm
longest rise time	0.7 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

14 pin Dual-in-Line

Frequency range 0.625MHz to 50.0MHz

CMOS/TTL Output

Supply Voltage 5.0 V or 3.3 VDC

Integrated Phase Jitter 1ps typical

DESCRIPTION

G14 VCXOs, are packaged in an industry-standard, 14 pin Dual in

Line package. Typical phase jitter for G series VCXOs is <1ps, output

CMOS/TTL. G series VCXOs use fundamental mode crystal

osccillators. Applications include phase lock loop, SONET/ATM, set-

top boxes, MPEG , audio/video modulation, video game consoles and

HDTV.

SPECIFICATION

Frequency Range

Vdd = +3.3VDC:

0.625MHz to 50.0MHz

Vdd = +5.0VDC:

1.0MHz to 50.0MHz

Supply Voltage:

+3.3 VDC ±5% or +5.0VDC±5%

Output Logic:

TTL/HCMOS

Integrated Phase Jitter:

1.0ps maximum 12kHz to 20MHz

Period Jitter RMS:

2.0ps typical

Period Jitter Peak to Peak:

14ps maximum

Phase Noise:

See table below

Initial Frequency Accuracy

Tune to the nominal frequency with:

+3.3VDC:

Vc= 1.65V ±0.2V

+5.0 VDC:

Vc= 2.5V ±0.2V

Output Voltage HIGH (1):

90% Vdd minimum

Output Voltage LOW (0):

10% Vdd maximum

Control Voltage Centre

+3.3VDC:

1.65V

+5.0VDC:

2.5V

Control Voltage Range

+3.3VDC:

0.3V to 3.0V

+5.0VDC:

0.5V to 4.5V

Pulling Range

+3.3VDC

±80ppm to ±120ppm (standard)

+5.0VDC:

±80ppm to ±150ppm

(±200ppm available)

Temperature Stability:

See table

Output Load:

CMOS = 15pF, TTL = 2 gates

Start-up Time:

10ms maximum, 5ms typical

Duty Cycle:

50% ±5% measured at 50% Vdd

Rise/Fall Times:

0.7ns typical (15pF load)

Current Consumption:

10 to 45mA, frequency

dependent

Linearity:

10% maximum, 6% typical

Modulation Bandwidth:

10kHz minimum

Input Impedance:

1 MW minimum

Slope Polarity:

Monotonic and Positive. (An

(Transfer function)

increase of control voltage

always increases output

frequency.)

Storage Temperature:

-50° to +100°C

Ageing:

±5ppm per year maximum

RoHS Status:

Fully compliant

FREQUENCY STABILITY

Stability Code Stability ±ppm Temp. Range

0°~+70°C

100

0°~+70°C

-40°~+85°C

100

-40°~+85°C

If non-standard frequency stability is required

Use ‘I’ followed by stability, i.e. I20 for ±20ppm

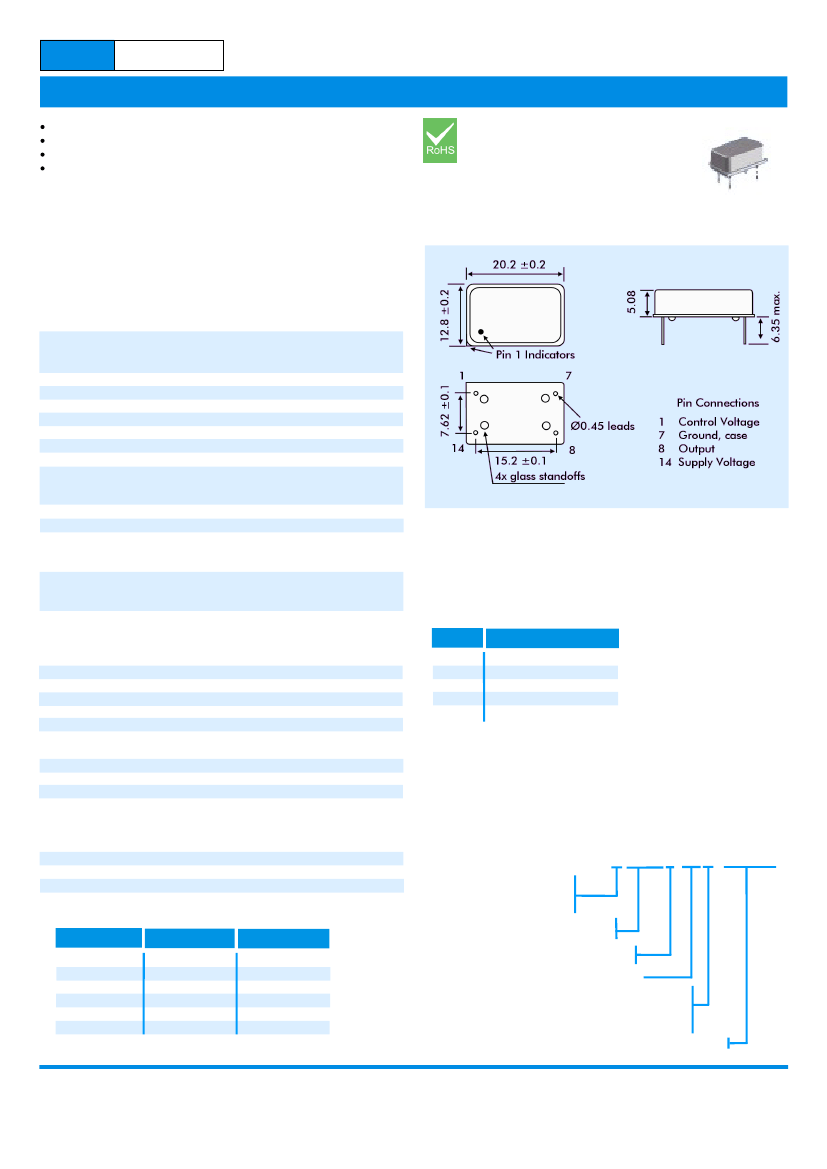

OUTLINE & DIMENSIONS

G14 VCXO

625.0kHz ~ 50.0MHz

PHASE NOISE

Offset

10Hz

100Hz

1kHz

10kHz

1MHz

Frequency 155.25MHz

-70dBc/Hz

-105dBc/Hz

-132dBc/Hz

-142dBc/Hz

-150dBc/Hz

PART NUMBERING

Example:

3 G14 B-80N-27.000

Supply Voltage

3 = +3.3V

5 = +5.0V

Series Designator

G14

Stability over temperature range

(See table)

Pullability in ±ppm

Pullability determinator

N = minimum

M = maximum

T = Typical

Frequency in MHz

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
