PH1K25-209SBB6/3-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> PH1K25-209SBB6/3-U

PH1K25-209SBB6/3-U: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size259KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PH1K25-209SBB6/3-U Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

PH1K25-209SBB6/3-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1164660688
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	EDGE MOUNT
body width	0.197 inch
subject depth	0.098 inch
body length	0.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PH1K
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	18

Preview

Download Datasheet

View All

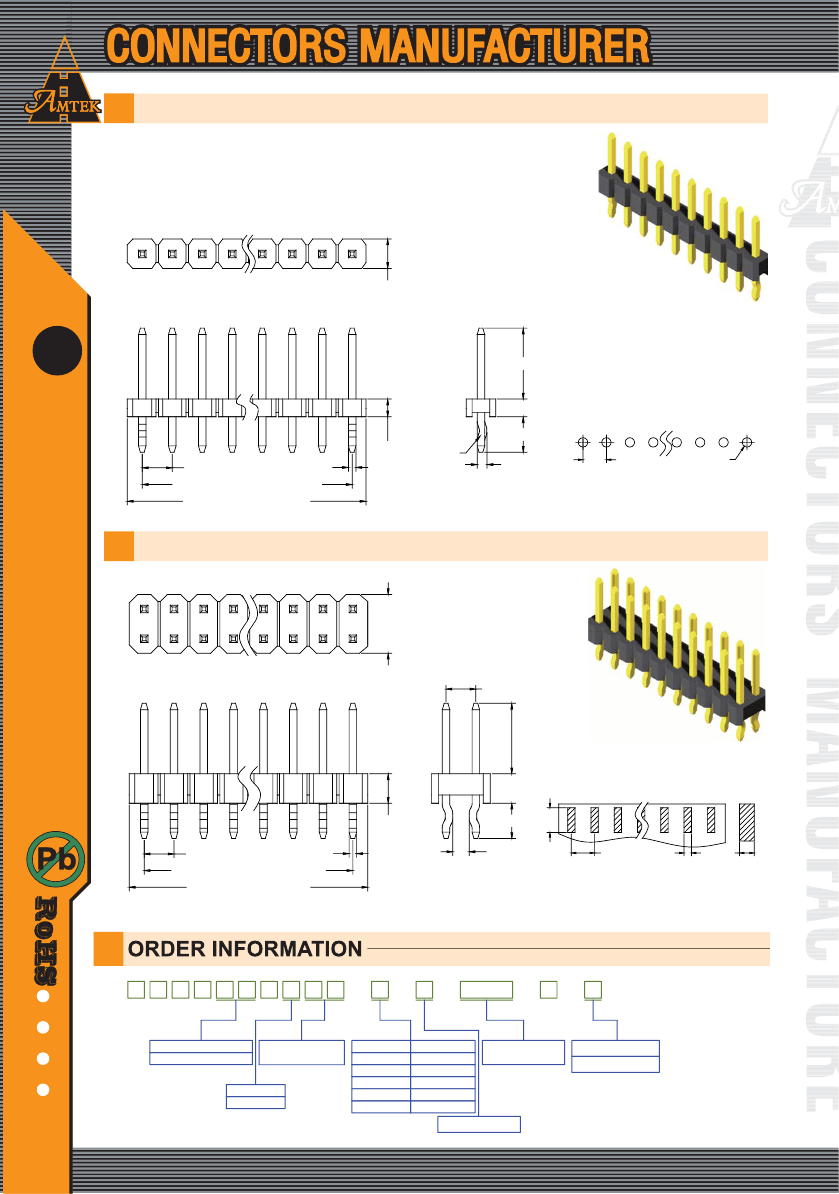

Pin Header 2.54mm 1 Row H=1.5/2.5mm Kink Type

Specifications

Current Rate:3 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:PBT or Nylon 6T

Termnal:Copper Alloy

Plating:Gold Plated

2.50±0.15

H±0.15

5.00±0.15

A(6.00)±0.20

2.50±0.15

B(3.00)±0.20

2.54±0.10

0.64 SQ

1.40±0.15

2.70

in Header 2.54mm

2-96

KINK PIN

2.54±0.10

0.64 SQ

2.54xNo. of Contacts-2.54±0.20

2.54xNo. of Positions±0.40

2.54xNo.of Contacts/2-2.54±0.20

2.54xNo.of Positions±0.30

A(6.00)±0.20

B(3.00)±0.20

0.84REF

2.54

ø1.02

Recommended P.C.B Layout(Top Side)

(PCB BOARD TOLERANCE±0.05)

Part No.:PH1K15/25-1XX-L/U

Pin Header 2.54mm 2 Row H=2.5mm Kink Type

2.54±0.10

2.54

0.80

1.60

Recommended P.C.B Layout(Top Side)

(PCB BOARD TOLERANCE±0.05)

Part No.:PH1K15/25-2XX-L/U

P H 1 K X X - X X X

A/B

15:Insulator Height H=1.5mm

25:Insulator Height H=2.5mm

No. of Contacts Per Row

(02~40)

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

S:Selective

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

Fill in Dimensions For

Special Design

L:RoHS + PBT

U:RoHS + Nylon 6T

1:Single Row

2:Dual Row

GD:Gold 30u"

T:Tin Plated

B:Black Insulator

Standard Recommended

www.amtek-co.com.tw
