MPC7457EC
Rev. 8, 04/2013
MPC7457
RISC
Microprocessor
This hardware specification is primarily concerned
with the MPC7457; however, unless otherwise
noted, all information here also applies to the
MPC7447. The MPC7457 and MPC7447 are
implementations of the PowerPC™ microprocessor
family of reduced instruction set computer (RISC)
microprocessors. This hardware specification
describes pertinent electrical and physical
characteristics of the MPC7457. For functional
characteristics of the processor, refer to the
MPC7450 RISC Microprocessor Family User’s
Manual.
To locate any published updates for this hardware
specification, refer to the website listed on the back
page of this document.
1.
2.
3.
4.
5.
6.
7.
8.
9.
11.
10.
Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Comparison with the MPC7455, MPC7445,
MPC7450, MPC7451, and MPC7441 . . . . . . . . . . . . 9
General Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Electrical and Thermal Characteristics . . . . . . . . . . . 11
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Pinout Listings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Package Description . . . . . . . . . . . . . . . . . . . . . . . . . 44
System Design Information . . . . . . . . . . . . . . . . . . . 50
Document Revision History . . . . . . . . . . . . . . . . . . . 68
Part Numbering and Marking . . . . . . . . . . . . . . . . . . 65
Freescale reserves the right to change the detail specifications as may be required
to permit improvements in the design of its products.
© 2006 Freescale Semiconductor, Inc. All rights reserved.
Overview
1
Overview
The MPC7457 is the fourth implementation of the fourth generation (G4) microprocessors from Freescale.
The MPC7457 implements the full PowerPC 32-bit architecture and is targeted at networking and
computing systems applications. The MPC7457 consists of a processor core, a 512-Kbyte L2, and an
internal L3 tag and controller that support a glueless backside L3 cache through a dedicated
high-bandwidth interface. The MPC7447 is identical to the MPC7457 except that it does not support the
L3 cache interface.
Figure 1
shows a block diagram of the MPC7457. The core is a high-performance superscalar design
supporting a double-precision floating-point unit and a SIMD multimedia unit.
The memory storage subsystem supports the MPX bus protocol and a subset of the 60x bus protocol to
main memory and other system resources. The L3 interface supports 1, 2, or 4 Mbytes of external SRAM
for L3 cache and/or private memory data. For systems implementing 4 Mbytes of SRAM, a maximum of
2 Mbytes may be used as cache; the remaining 2 Mbytes must be private memory.
Note that the MPC7457 is a footprint-compatible, drop-in replacement in a MPC7455 application if the
core power supply is 1.3 V.
2
Features
This section summarizes features of the MPC7457 implementation of the PowerPC architecture.
Major features of the MPC7457 are as follows:
• High-performance, superscalar microprocessor
— As many as four instructions can be fetched from the instruction cache at a time.
— As many as three instructions can be dispatched to the issue queues at a time.
— As many as 12 instructions can be in the instruction queue (IQ).
— As many as 16 instructions can be at some stage of execution simultaneously.
— Single-cycle execution for most instructions
— One instruction per clock cycle throughput for most instructions
— Seven-stage pipeline control
• Eleven independent execution units and three register files
— Branch processing unit (BPU) features static and dynamic branch prediction
– 128-entry (32-set, four-way set associative) branch target instruction cache (BTIC), a cache
of branch instructions that have been encountered in branch/loop code sequences. If a target
instruction is in the BTIC, it is fetched into the instruction queue a cycle sooner than it can
be made available from the instruction cache. Typically, a fetch that hits the BTIC provides
the first four instructions in the target stream.
– 2048-entry branch history (BHT) with 2 bits per entry for 4 levels of prediction—not-taken,
strongly not-taken, taken, and strongly taken
– Up to three outstanding speculative branches
MPC7457 RISC Microprocessor Hardware Specifications, Rev. 8
2
Freescale Semiconductor
Features
– Branch instructions that do not update the count register (CTR) or link register (LR) are
often removed from the instruction stream.
– Eight-entry link register stack to predict the target address of Branch Conditional to Link
Register (bclr) instructions
MPC7457 RISC Microprocessor Hardware Specifications, Rev. 8
Freescale Semiconductor
3
4
Instruction Unit
Branch Processing Unit
Fetcher
Tags
IBAT Array
BHT (2048-Entry)
Dispatch
Unit
Data MMU
SRs
(Original)
VR Issue
(4-Entry/2-Issue)
DBAT Array
GPR Issue
(6-Entry/3-Issue)
FPR Issue
(2-Entry/1-Issue)
128-Entry
DTLB
Tags
LR
BTIC (128-Entry)
CTR
Instruction Queue
(12-Word)
SRs
(Shadow)
128-Entry
ITLB
Instruction MMU
128-Bit (4 Instructions)
32-Kbyte
I Cache
96-Bit (3 Instructions)
32-Kbyte
D Cache
Reservation
Stations (2-Entry)
EA
Completes up
to three
instructions
per clock
VR File
16 Rename
Buffers
Integer
Unit 2
Integer
Integer
Integer
Unit 122
Unit
Unit
(3)
+++
32-Bit
32-Bit
x÷
Vector
FPU
32-Bit
128-Bit
128-Bit
16 Rename
Buffers
Reservation
Stations (2)
GPR File
Reservation
Reservation
Reservation
Station
Station
Station
Vector
Touch
Queue
Load/Store Unit
Vector Touch Engine
+ (EA Calculation)
Finished
Stores
L1 Castout
PA
FPR File
16 Rename
Buffers
Reservation
Stations (2)
Floating-
Point Unit
L1 Push
Completed
Stores
+ x÷
FPSCR
Load Miss
64-Bit
64-Bit
Vector
Integer
Unit 1
L1 Service
Queues
Features
Additional Features
• Time Base Counter/Decrementer
• Clock Multiplier
• JTAG/COP Interface
• Thermal/Power Management
• Performance Monitor
Completion Unit
Completion Queue
(16-Entry)
Reservation Reservation Reservation Reservation
Station
Station
Station
Station

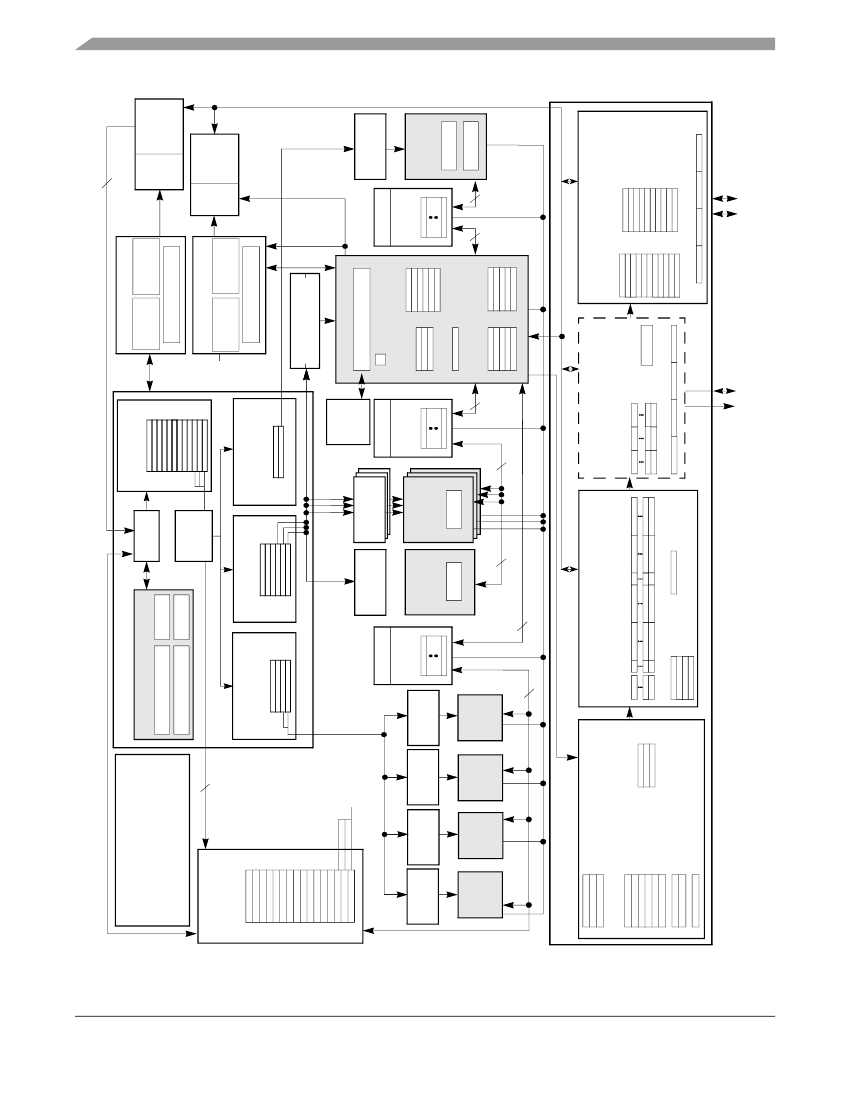

Figure 1. MPC7457 Block Diagram
512-Kbyte Unified L2 Cache Controller
Line
Block 0 (32-Byte)
Block 1 (32-Byte)
Tags Status
Status
L3 Cache Controller
1
Line Block 0/1
Tags Status
L3CR
L2 Prefetch (3)
Bus Accumulator
L2 Store Queue (L2SQ)
Snoop Push/
L1 Castouts
Interventions
(4)
Vector
Permute
Unit
Vector
Integer
Unit 2
Memory Subsystem
System Bus Interface
Load
Queue (11)
MPC7457 RISC Microprocessor Hardware Specifications, Rev. 8
19-Bit Address
64-Bit Data
(8-Bit Parity)
External SRAM
(1, 2, or 4 Mbytes)
L1 Store Queue
(LSQ)
L1 Load Queue (LLQ)
L1 Load Miss (5)
Bus Store Queue
Castout
Queue (9)/
Push
Queue (10)
2
Bus Accumulator
Instruction Fetch (2)
Cacheable Store Request(1)
Freescale Semiconductor
Notes:
1. The L3 cache interface is not implemented on the MPC7447.
2. The Castout Queue and Push Queue share resources such for a combined total of 10 entries.
The Castout Queue itself is limited to 9 entries, ensuring 1 entry will be available for a push.
36-Bit
Address Bus
64-Bit
Data Bus
Features
•
— Four integer units (IUs) that share 32 GPRs for integer operands
– Three identical IUs (IU1a, IU1b, and IU1c) can execute all integer instructions except
multiply, divide, and move to/from special-purpose register instructions
– IU2 executes miscellaneous instructions including the CR logical operations, integer
multiplication and division instructions, and move to/from special-purpose register
instructions
— Five-stage FPU and a 32-entry FPR file
– Fully IEEE 754-1985 compliant FPU for both single- and double-precision operations
– Supports non-IEEE mode for time-critical operations
– Hardware support for denormalized numbers
– Thirty-two 64-bit FPRs for single- or double-precision operands
— Four vector units and 32-entry vector register file (VRs)
– Vector permute unit (VPU)
– Vector integer unit 1 (VIU1) handles short-latency AltiVec™ integer instructions, such as
vector add instructions (for example,
vaddsbs, vaddshs,
and
vaddsws)
– Vector integer unit 2 (VIU2) handles longer-latency AltiVec integer instructions, such as
vector multiply add instructions (for example,
vmhaddshs, vmhraddshs,
and
vmladduhm)
– Vector floating-point unit (VFPU)
— Three-stage load/store unit (LSU)
– Supports integer, floating-point, and vector instruction load/store traffic
– Four-entry vector touch queue (VTQ) supports all four architected AltiVec data stream
operations
– Three-cycle GPR and AltiVec load latency (byte, half-word, word, vector) with one-cycle
throughput
– Four-cycle FPR load latency (single, double) with one-cycle throughput
– No additional delay for misaligned access within double-word boundary
– Dedicated adder calculates effective addresses (EAs)
– Supports store gathering
– Performs alignment, normalization, and precision conversion for floating-point data
– Executes cache control and TLB instructions
– Performs alignment, zero padding, and sign extension for integer data
– Supports hits under misses (multiple outstanding misses)
– Supports both big- and little-endian modes, including misaligned little-endian accesses
Three issue queues FIQ, VIQ, and GIQ can accept as many as one, two, and three instructions,
respectively, in a cycle. Instruction dispatch requires the following:
— Instructions can be dispatched only from the three lowest IQ entries—IQ0, IQ1, and IQ2
— A maximum of three instructions can be dispatched to the issue queues per clock cycle
MPC7457 RISC Microprocessor Hardware Specifications, Rev. 8
Freescale Semiconductor
5
