BD055-36-C-1-L-F datasheet, PDF

Datasheet> All Categories > The connector> The connector> BD055-36-C-1-L-F

BD055-36-C-1-L-F: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD055-36-C-1-L-F Overview

Board Connector, 36 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

BD055-36-C-1-L-F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7017399529
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	9.4
Board mount options	PEG
body width	0.122 inch
subject depth	0.142 inch
body length	1.048 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	36
Evacuation force-minimum value	.15012 N

Preview

Download Datasheet

View All

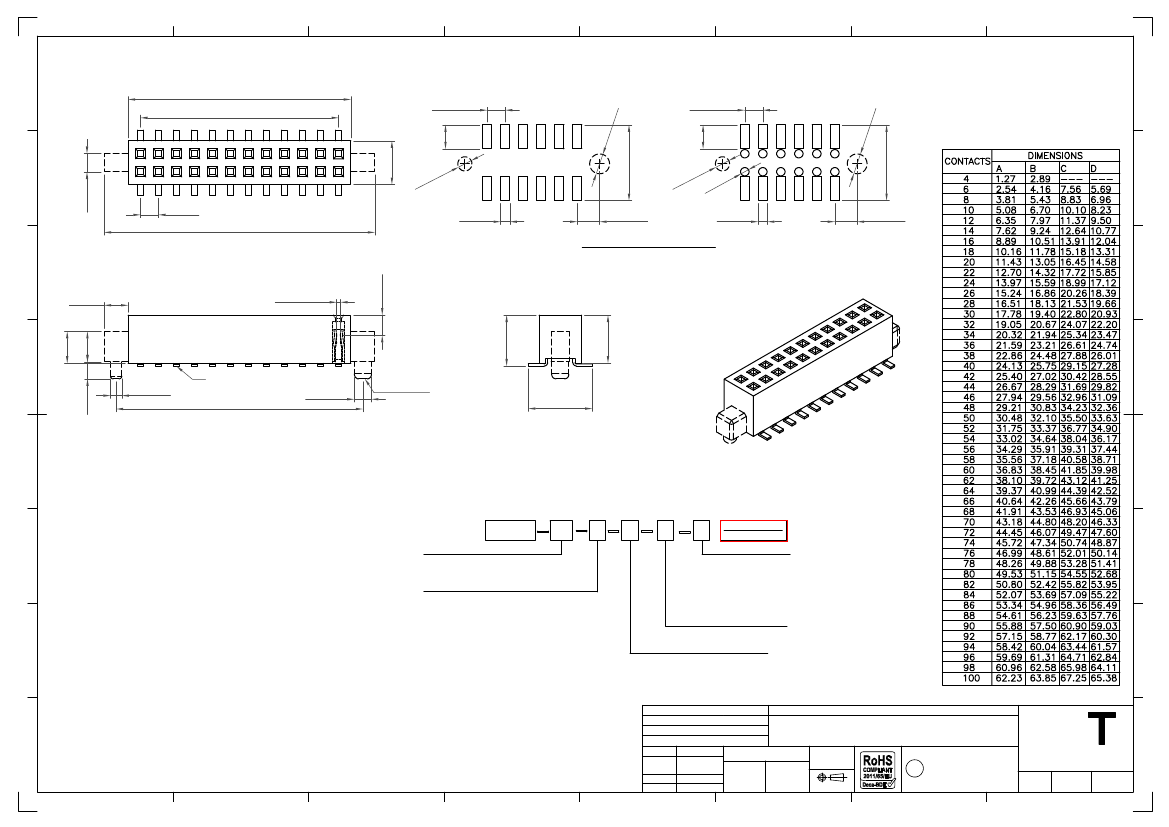

B±0.35

A±0.20

1.27

Ø1 .

1.27

1.70

Ø1 .

3.10

1.70

5.50

1.30

1.27

C±0.25

Ø1

.00

Ø1

.00

0 .6

0.65

1.575

RECOMMENDED PCB LAYOUT

0.65

1.70

0.28 Ref.

1.43

Contact Point

3.60±0.20

Pin 0.42 x 0.15 (Typ.)

2.25

2.15

Ø0.80

1.2

D±0.15

Ø1.20

Optional Peg

4.50±0.30

Ordering Grid

3.40

BD055

No. of Contacts

04 to 100

100 Contacts = 00

Specifications

规格

Current Rating

电流额定值

: 1.0 amp

Insulation Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstanding

耐电压

: 300V AC

Contact Resistance

接触电阻值

: 20 mΩ max.

Operating Temperature

工½温度

: -40°C to +105°C

Contact Material

端子物料

: Copper Alloy

Insulator Material

绝缘½物料

: Polyester

聚酯

, LCP, UL 94V-0

Soldering Process

可焊性

: LCP -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec

Manual Solder

人工焊接

: 350°C for 3-5 sec

Mates with

配套之母座

(Subject to pin length

在端子长度适合的条件下

BD025

BD030

BD035

BD038

BD040

BD095

Request Samples

and Quotation

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Packing Options

C = Tape & Reel with Film

(Standard)

B = Tape & Reel with Cap

D = Tube

E = Tube with Cap

F = Tube with Film

Insulator Material

L = LCP

Locating Peg

0 = No Peg

1 = With Peg

Part Number

Product Description

5.50

1.575

BD055

Drawing Date

28th December 2007

Detail

Revision

Date

AJO

BD055

H PCN

08/09/14

Length

1.27mm Pitch Socket, Dual Row,

Surface Mount, Top Entry

Tolerances

(Except as Noted)

Angle

X. ± 0.30

X.° ± 5°

X.X° ± 2°

X.X ± 0.20

X.XX° ± 1°

X.XX ± 0.15

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

LYH

www.gct.co

Not to

Scale

Sheet No.

1/1
