LH75410N0Q100C0 datasheet, PDF

Datasheet> All Categories > semiconductor> The embedded processor and controller> LH75410N0Q100C0

LH75410N0Q100C0: DescriptionIC arm7 bluestreak mcu 144lqfp; Categorysemiconductor The embedded processor and controller; File Size227KB，2 Pages; ManufacturerSharp Microelectronics; Environmental Compliance

Download Datasheet Parametric Compare View All

LH75410N0Q100C0 Overview

IC arm7 bluestreak mcu 144lqfp

LH75410N0Q100C0 Parametric

Parameter Name	Attribute value
Datasheets
LH75410 Product Brief
LH75400/01/10/11
Product Photos
144-LQFP
Standard Package	60
Category	Integrated Circuits (ICs)
Family	Embedded - Microcontrollers
LH7
Packaging	Tray
Core Process	ARM7®
Core Size	32-Bi
Speed	84MHz
Connectivity	EBI/EMI, SPI, SSI, SSP, UART/USART
Peripherals	Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
Number of I/O	76
Program Memory Size	-
Program Memory Type	ROMless
EEPROM Size	-
RAM Size	32K x 8
Voltage - Supply (Vcc/Vdd)	1.7 V ~ 3.6 V
Data Converters	A/D 8x10b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C
Package / Case	144-LQFP
Supplier Device Package	*

Preview

Download Datasheet

View All

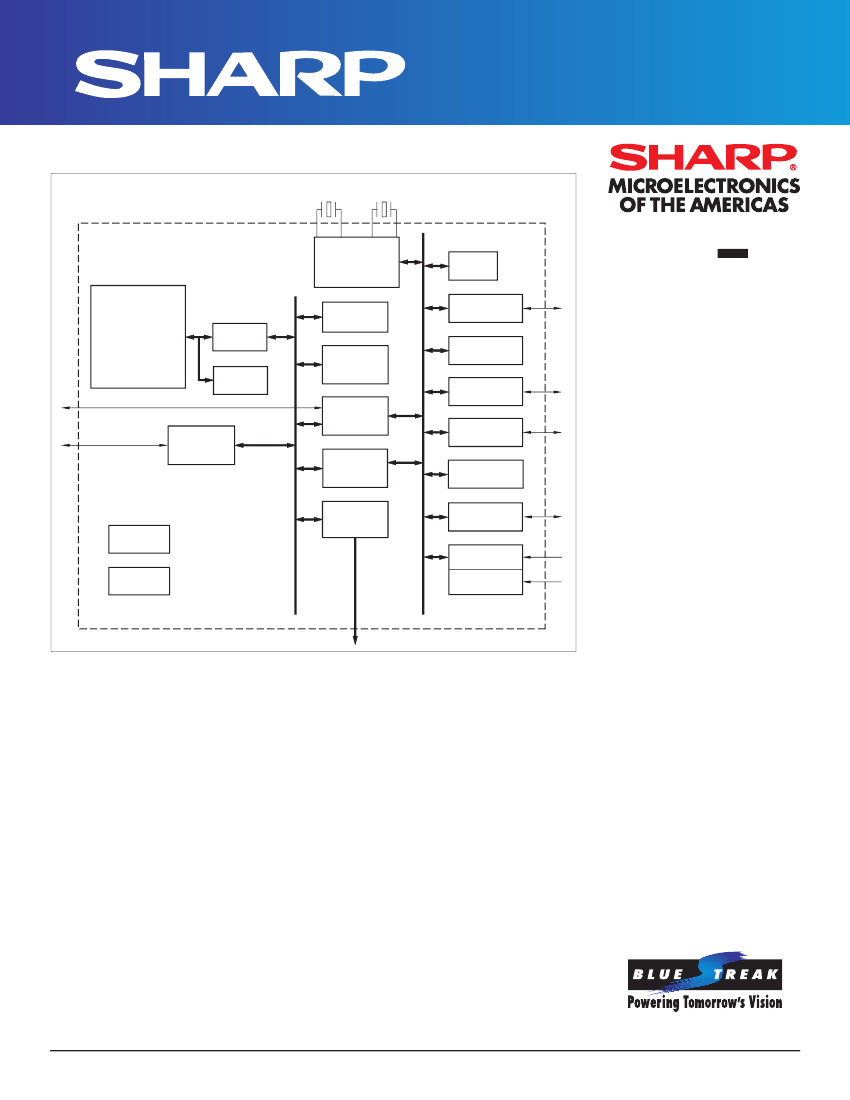

RODUCT

NFORMATION

APPLICATIONS:

PDA • GPS • POS

Educational Toys

Medical

Test & Measurement

Industrial Control

Security

SHARP’s New Line

of MCUs and

System-on-Chips

LH75410 16/32-bit Microcontroller

with Grayscale LCD Controller

FEATURES

• ARM7TDMI-S™ Core

• High Performance (Up to 90 MHz)

– Internal PLL-driven or External Clock

• 32KB On-chip SRAM

– 16KB TCM (0 Wait State) SRAM

– 16KB Internal SRAM

• Clock and Power Management

– Low Power Modes: Standby, Sleep, Stop1, Stop2

• Grayscale LCD Controller

– 4-bit (16 level) Grayscale

– Up to XGA (1,024 × 768)

– Supports STN Displays

• Eight channel, 10-bit A/D Converter

• Four DMA Channels

• Integrated Touch Screen Controller

• Serial Interfaces

– 3 × UARTs

– SSP

• Full-featured Real Time Clock (RTC)

– Operates from 32 kHz XTAL

• Three 16-bit Counter/Timers with

Capture/Compare/PWM Capability

• Watchdog Timer

• Low Voltage Detector

• JTAG Debug Interface and Boundary Scan

• 3.3 V Operating Voltage

• -40°C to +85°C Operating Temperature

• 144-pin LQFP Package

DESCRIPTION

The LH75410 is a low cost microcontroller that utilizes the

ARM7TDMI-S core integrated with a wide variety of functions

including the capability to control black and white and grayscale

LCD displays with up to 16 levels of gray. Other functions include:

32KB of on-chip SRAM, three UARTs, SSP, three 16-bit Counter/

Timers, Analog to Digital Converter with integrated touch screen

controller, Watchdog Timer, and Low Voltage Detector. The LH75410

operates up to 90 MHz at 3.3 V over the industrial temperature range

of -40°C to +85°C and is offered in a 144-pin LQFP package.

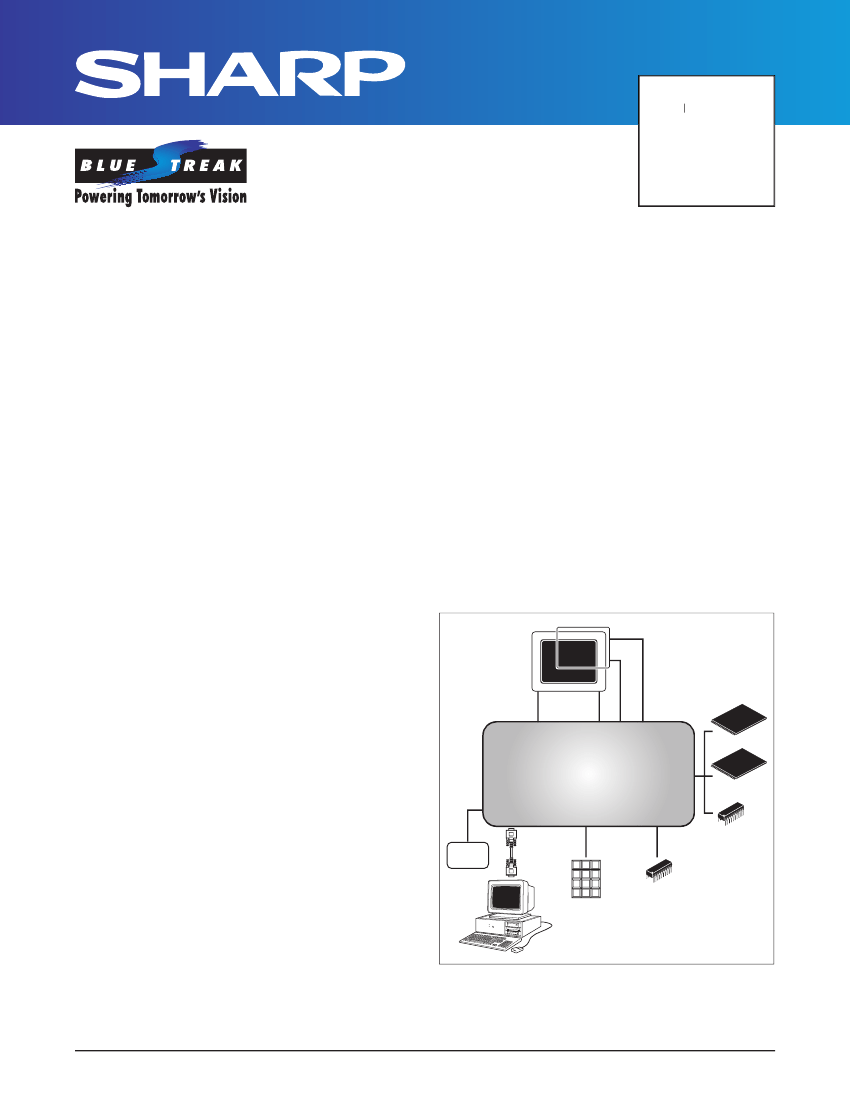

SYSTEM APPLICATION EXAMPLE

LCD

TOUCH SCREEN

STN

A/D

FLASH

LH75410

SRAM

A/D

BOOT

ROM

UART

SENSOR

ARRAY

GPIO

SSP

SERIAL

EEPROM

KEY

MATRIX

LH75410-2

LH75410N0Q100C0 Related Products

	LH75410N0Q100C0	LH75410N0M100C0
Description	IC arm7 bluestreak mcu 144lqfp	IC arm7 bluestreak mcu 144tqfp
Standard Package	60	60
Category	Integrated Circuits (ICs)	Integrated Circuits (ICs)
Family	Embedded - Microcontrollers	Embedded - Microcontrollers
Packaging	Tray	Tray
Core Process	ARM7®	ARM7®
Core Size	32-Bi	32-Bi
Speed	84MHz	84MHz
Connectivity	EBI/EMI, SPI, SSI, SSP, UART/USART	EBI/EMI, SPI, SSI, SSP, UART/USART
Peripherals	Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT	Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
Number of I/O	76	76
Program Memory Type	ROMless	ROMless
RAM Size	32K x 8	32K x 8
Voltage - Supply (Vcc/Vdd)	1.7 V ~ 3.6 V	1.7 V ~ 3.6 V
Data Converters	A/D 8x10b	A/D 8x10b
Oscillator Type	Internal	Internal
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Package / Case	144-LQFP	144-LQFP
Supplier Device Package	*	*
