LH75401 16/32-bit Microcontroller
with Color LCD Controller
FEATURES
• ARM7TDMI-S™ Core
• High Performance (Up to 90 MHz)
– Internal PLL-driven or External Clock
• 32KB On-chip SRAM
– 16KB TCM (0 Wait State) SRAM
– 16KB Internal SRAM
• Clock and Power Management
– Low Power Modes: Standby, Sleep, Stop1, Stop2
• Color and Grayscale LCD Controller
– 12-bit (4,096) Direct Mode Color
– Up to VGA (640 × 480)
– 8-bit (256) Direct or Palletized Color
– Up to SVGA (800 × 600)
– 4-bit (16) Direct Mode Color/Grayscale
– Up to XGA (1,204 × 768)
– Supports STN, TFT, HR-TFT, AD-TFT Displays
• Eight Channel, 10-bit A/D Converter
• Four DMA Channels
• Integrated Touch Screen Controller
• Serial Interfaces
– 3 × UARTs
– SSP
• Full-featured Real Time Clock (RTC)
– Operates from 32 kHz XTAL
• CAN Version 2.0b*
• Three 16-bit Counter/Timers with
Capture/Compare/PWM Capability
• Watchdog Timer
• Low Voltage Detector
• JTAG Debug Interface and Boundary Scan
• 3.3 V Operating Voltage
• -40°C to +85°C Operating Temperature
• 144-pin LQFP Package
*Controller Area Network (CAN)
DESCRIPTION
The LH75401 is a low cost microcontroller that utilizes the
ARM7TDMI-S core integrated with a wide variety of functions
including the ability to control STN, color STN, TFT, HR-TFT, and
Adavanced-TFT displays with up to 4,096 colors. Other functions
include: 32KB of on-chip SRAM, three UARTs, SSP, CAN version
2.0b, three 16-bit Counter/Timers, Analog to Digital Converter with
integrated touch screen controller, Watchdog Timer, and Low Volt-
age Detector. The LH75401 operates up to 90 MHz at 3.3 V over the
industrial temperature range of -40°C to +85°C and is offered in
a 144-pin LQFP package.

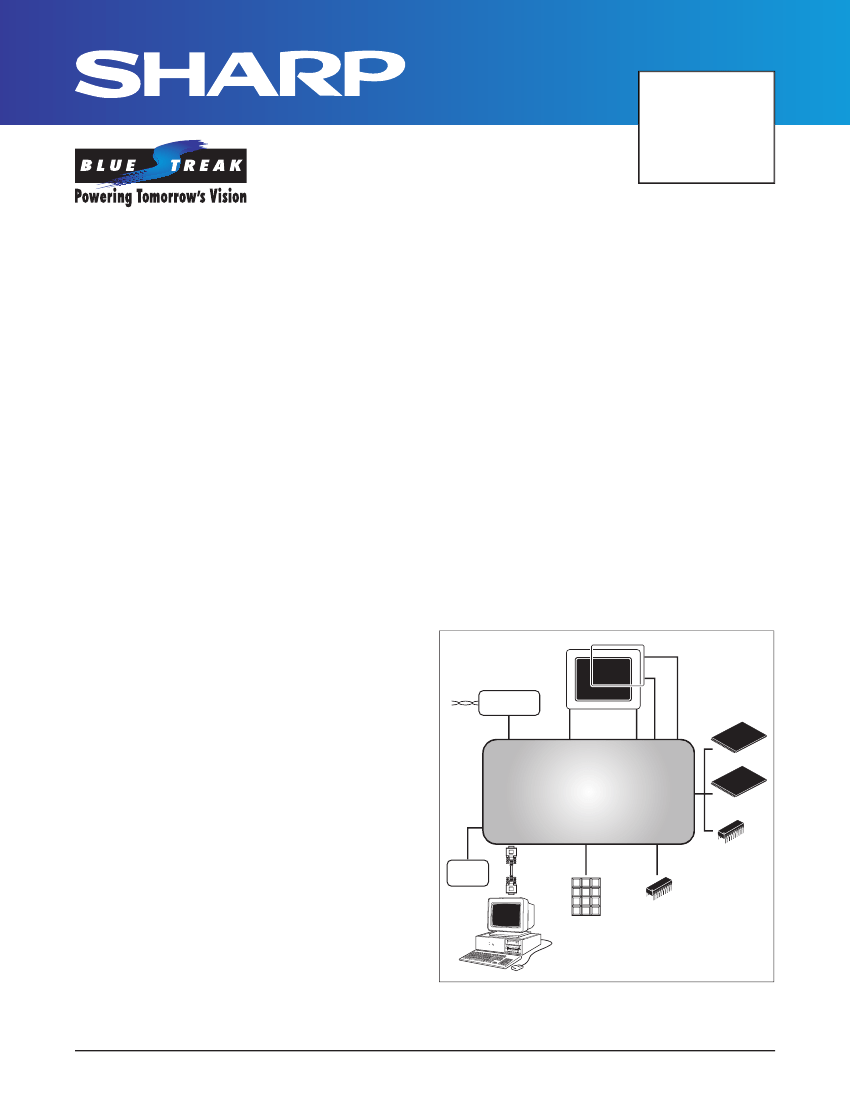

SYSTEM APPLICATION EXAMPLE
LCD
TOUCH SCREEN
CAN
NETWORK
CAN
TRANSCEIVER
CAN
2.0B
STN/TFT,
AD-TFT/HR-TFT
A/D
FLASH
LH75401
SRAM
A/D
BOOT
ROM
UART
SENSOR
ARRAY
GPIO
SSP
1
4
7
2
5
8
0
3
6
9
#
*
SERIAL
EEPROM
KEY
MATRIX
LH75401-2
P
RODUCT
I
NFORMATION

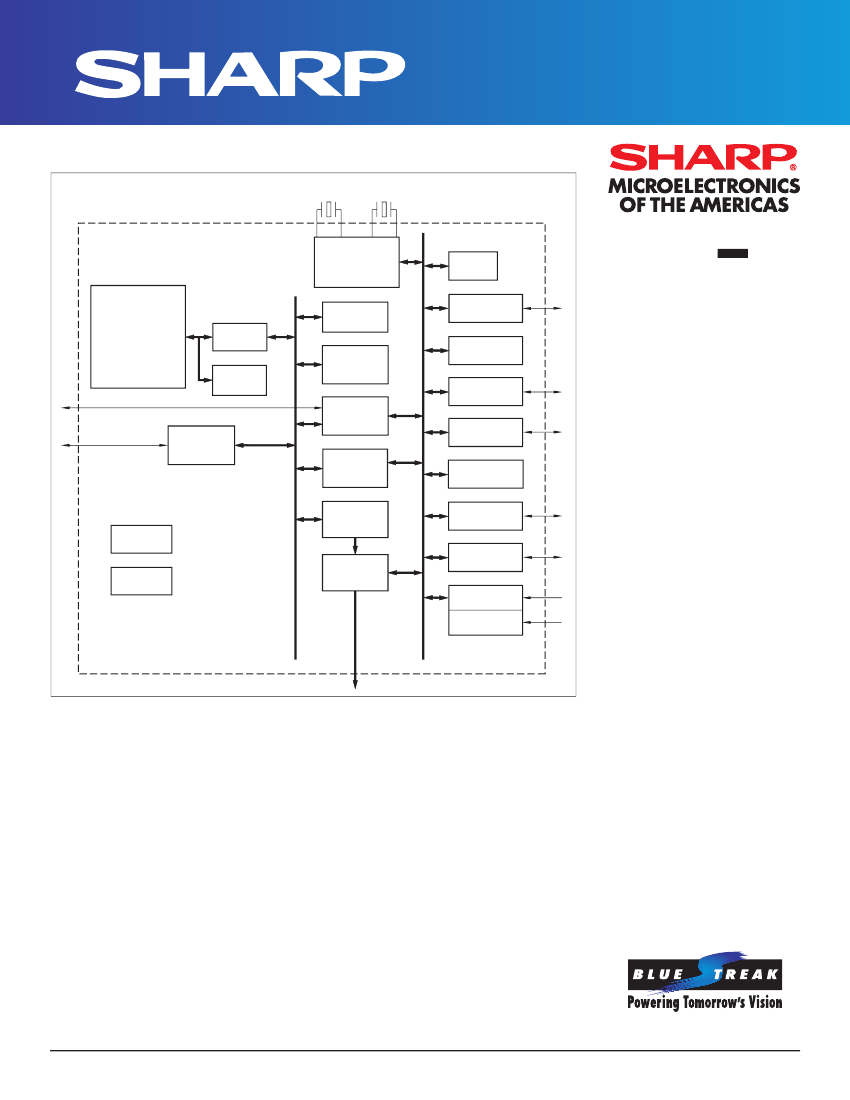

LH75401 BLOCK DIAGRAM
14 to 29 MHz
32.768 kHz
LH75401
OSCILLATOR,
PLL, POWER
MANAGEMENT, and
RESET CONTROL
