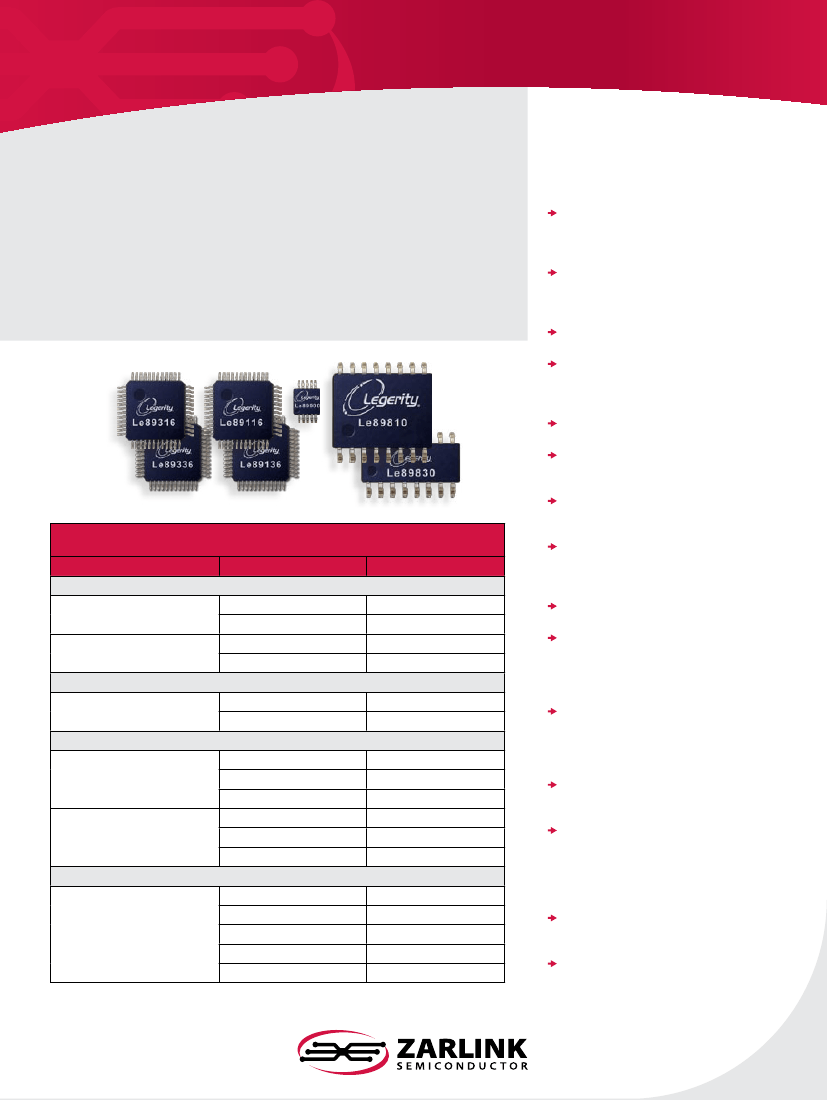

The VE8910 , VE8910-HV, VE8901, VE8911, VE8911-HV and VE8921 chipsets are highly inte-
grated, cost-effective FXS, FXO and FXS + FXO chipsets that are optimized for residential VoIP
access devices. These chipsets implements a complete BORSCHT functionality by providing the
necessary voice interface functions to connect to, and power, one or more telephones and an
isolated Direct Access Arrangement (DAA) for connection to the PSTN. The VE890 Series chip-
sets significantly increase design flexibility, improve system performance, and reduce BOM
costs. These chipsets are supported by the Zarlink VoicePath™ API-II™ (VP API-II), which enables
designers to offer a single hardware design that is software programmable for worldwide
markets.
VE890
SERIES
VE890 Series
Chipset
1FXS
VE8910
VE8910-HV
1FXO
VE8901
1FXS + 1FXO
Le89316
VE8911
Le89810
Le89900
Le89336
VE8911-HV
2FXS + 1FXO
Le89316
Le89116
VE8921
Le89810
Le89810
Le89900
SOLAC
SLAC
SLIC
SLIC
DAA
Le89830
Le89900
SOLAC
SLIC
DAA
SOLAC
SLIC
DAA
Le89010
Le89900
OLAC
DAA
Le89116
Le89810
Le89136
Le89830
SLAC
SLIC
SLAC
SLIC
OPN
Description
Features
Highly integrated, low-cost 1FXS,
1FXO and 1FXS + 1FXO chipset
optimized for residential VoIP
gateways
Full worldwide programmability,
a single hardware design can be
configured via software for use in all
worldwide markets
FXS channel performs all the standard
BORSCHT functions
Integrated power management
minimizes power consumption,
making the VE890 Series suitable for
battery backed applications
Full support for wideband audio with
16 kHz sampling
FXO channel performs all PSTN
interface functions with software
programmable parameters
Best in class DAA performance in
common mode noise rejection and RF
immunity
Unique adaptive hybrid balance
feature for impedance matching
reduces local echo and improves
voice quality
DAA isolation using no-cost PCB
capacitors reduces RBOM cost
Integrated VoicePath™ API-II Software
implements all FXS & FXO functions,
significantly reducing development
time and providing one common
interface for FXS and FXO functions
Comprehensive line sensing and
line monitoring with VeriVoice™ Test
Suite software—provides complete
GR-909/TIA-1063 diagnostics, loop
test and supervision functions
Direct FXO to FXS voice path
eliminates processor buffering
overhead
Package offerings support board
stuffing options for popular voice
configurations—1FXS, 1FXO, 2FXS,
1FXS + 1FXO and 2FXS + 1FXO
Applications
Residential and SOHO VoIP CPE, such
as ADSL2+/VDSL2 Integrated Access
Devices (IADs)
Residential VoIP Gateways and
Routers
APPLICATION
SONET/SDH/PDH Line Card Timing
Zarlink provides a world-class suite of development tools to facil-
itate the integration of Legerity voice solutions into end-user
applications and to significantly reduce design time.
The VoicePath API-II™ (VP API-II) is a set of ‘C’ code used to abstract
devices from application code while providing functions for con-
trolling, supervising, packet exchanging, and testing a set of
subscriber lines. It is application and OS independent in that it
requires no memory (only memory required is provided by appli-
cation space) and supports reentrancy. It has been used in Linux
(application and kernel space), VxWorks, and non-OS architec-
tures. The API-II is common across all Legerity voice solutions so
applications written for one device are the same for other devices.
It integrates seamlessly with the Zarlink’s Legerity Software Devel-
opment Kit (SDK) Tools so your development time is significantly
reduced.
The VeriVoice™ Test Suite is a subscriber line software package for
VoIP equipment, providing the market's most cost effective and
reliable solution for VoIP line test while at the same time minimiz-
ing the cost of ownership for service providers. Self-test available
with VeriVoice Professional.
VE890
SERIES

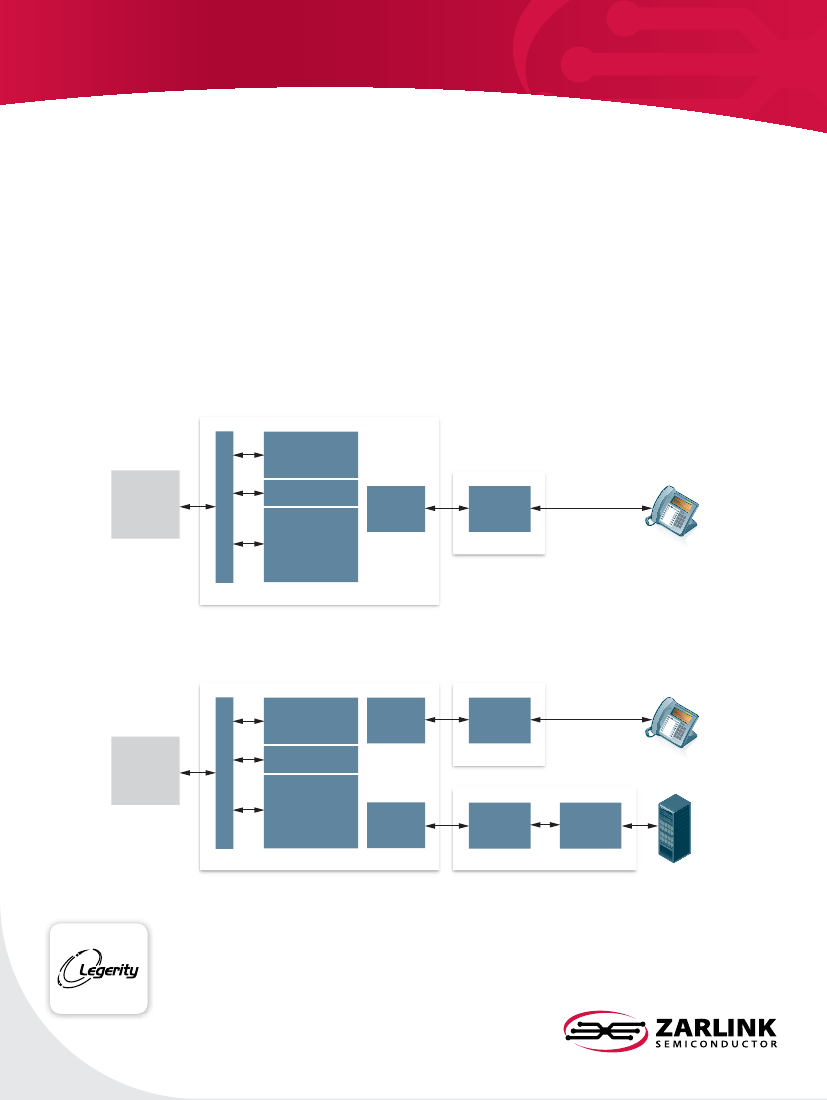

VE8910 or VE8910-HV Chipset—1 Channel FXS
Switching
Regulator
Controller
Linear/G.711
A/D & D/A
Voice Signal
Processor,
Supervision, and
Test Functions
SLAC
MPI & PCM Highway
Internal Balanced
Ringing
Tip & Ring
Line Driver
SLIC
SoC
VE8911 or VE8911-HV Chipset—1 Channel FXS + 1 Channel FXO
Internal Balanced
Ringing
Switching
Regulator
Controller
Linear/G.711
Voice Signal
Processor,
Supervision, and
Test Functions
SOLAC
A/D & D/A
MPI & PCM Highway
Tip & Ring
Line Driver
SLIC
SoC
A/D & D/A
AC & DC
Termination
DAA
Tip & Ring
I/F
Central
O ce/PSTN
FEATURING
VOICE SOLUTIONS
