THE VOICEEDGE™ VE792 NGCC SERIES PROVIDES A TOTAL LINE CARD SOLUTION
FOR NEXT GENERATION NETWORKS, GIVING CUSTOMERS TURN-KEY SOLUTION
FOR NEXT GENERATION MSAN AND MDU DESIGNS WITH FULL CALL CONTROL
AGGREGATION AND TEST-HEAD-GRADE INTEGRATED LINE TESTING.
The VE792 Next Generation Carrier Chipset series is a high-performance, highly
programmable integrated voice chip set that performs all the functions necessary
to create a 2-wire, twisted pair telephone interface from any broadband digital
source. The VE792 includes an 8-channel programmable codec along with line
interface circuit designed on proprietary 175 V bi-polar dialectrically isolated pro-
cess technology along with complete system-level software including call control
and integrated line test with lowest bill of material.
Features
Designed to work in a “Triple Play”
environment
Meets worldwide POTS performance
standards
Optimized for higher density board
design
Lower overall cost
Higher integrated test accuracies
Wideband 7.0 kHz codec mode
Internal and external ringing options
Benefits
Enhanced line control to minimize
transients
On-chip DTMF decoder
Testing for up to 128 lines
Comprehensive loop diagnostics
that meet or exceed GR-844
requirements and its subset, GR-909
A Comprehensive and easy to use
API software interface to abstract the
telephony functions and low level
programming of the devices
API software for applications not
requiring VCP II
Applications
VE792 Series
Part Number
Description
Package
VE792
SERIES
Le792388TVC
Le792388VQC
ZL792388GDG
ZL792588GDG
Le79271MQC
Le79271AMQC
Le79272PQC
Le79124KVC
ZL79124GDG
Le79128KVC
ZL79128GDG
Le79234KVC
ZL79234GDG
Octal Integrated Ringing SLAC
Octal Integrated Ringing SLAC
Octal Integrated Ringing SLAC
Octal External Ringing SLAC
Single Channel SLIC
Single Channel SLIC, 58dB Longitudinal
Balance
Dual Channel SLIC
Up to 72 Channel NGCC VCP II
Up to 72 Channel NGCC VCP II
Up to 128 Channel NGCC VCP II
Up to 128 Channel NGCC VCP II
Up to 32 Channel NGCC VCP II
Up to 32 Channel NGCC VCP II
176 LQFP
164 QFN
196 BGA
196 BGA
28 QFN
28 QFN
48 QFN
128 TQFP
144 BGA
128 TQFP
144 BGA
128 TQFP
144 BGA
Central Office (CO)
Digital Loop Carrier (DLC)
Integrated Voice and Data (IVD )
Voice Enabled DSLAM
PBX / KTS
MSAP, MSAN
APPLICATION
Zarlink provides, through Communication Products Access
Infrastructure portfolio, a world-class suite of development
tools to facilitate the integration of voice into end-user appli-
cations and to significantly reduce design time.

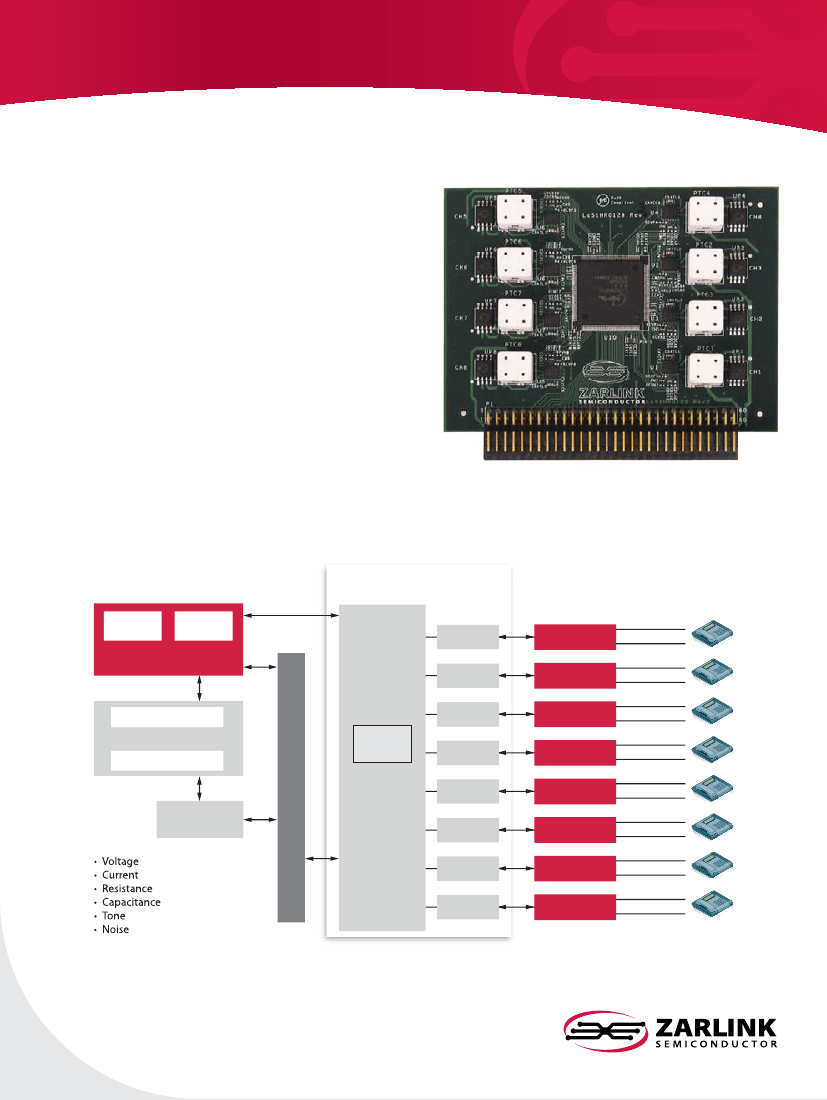

The VE792 Design Kit (LE71HR124DK) offers a start-up product
solution for customers, with full call control and full line test
software packages. Included in the kit are evaluation platforms
to perform system level tests as well as full schematics and lay-
out for line cards. Simplified splitter circuits, reference designs,
and all support tools needed to design a POTS line card are
available to help reduce design time and the customers’ over-
all time to market.
Our VoicePath™ Application Programming Interface II (VP API-II)
provides a standard software interface for controlling, super-
vising, and performing line testing using VE792 NGCC voice
termination devices.
Le51HR0128 VCP Octal ISLAC Line Module
VE792
SERIES
Le792388
Octal SLAC Device
Test
Primitives
Call
Control
SPI/MPI Port
(control)
codec 1
codec 2
codec 3
codec 4
codec 5
codec 6
codec 7
codec 8
Le79271 SLIC
Le79271 SLIC
Le79271 SLIC
Le79271 SLIC
Le79271 SLIC
Le79271 SLIC
Le79271 SLIC
Le79271 SLIC
Tip
Ring
Tip
Le79124
VCP II
Voice Signal
Processor
Host Algorithms
Host Controller
Test
Tool Box
Ring
Tip
Ring
Tip
Ring
Tip
Ring
Tip
Ring
Tip
Ring
Tip
Ring
VP API-II
Backplane I/F
Test Function Measurements
Information relating to products and services furnished herein by Zarlink Semiconductor Inc. or its subsidiaries is believed to be reliable.
The products, their specifications, services and other information appearing in this publication are subject to change by Zarlink without notice.
ZARLINK, ZL, and the Zarlink logo are trademarks of Zarlink Semiconductor Inc.
PCM Highway
© 2011, Zarlink Semiconductor Inc. All Rights Reserved. Publication Number 11ZS053
www.ZARLINK.com
