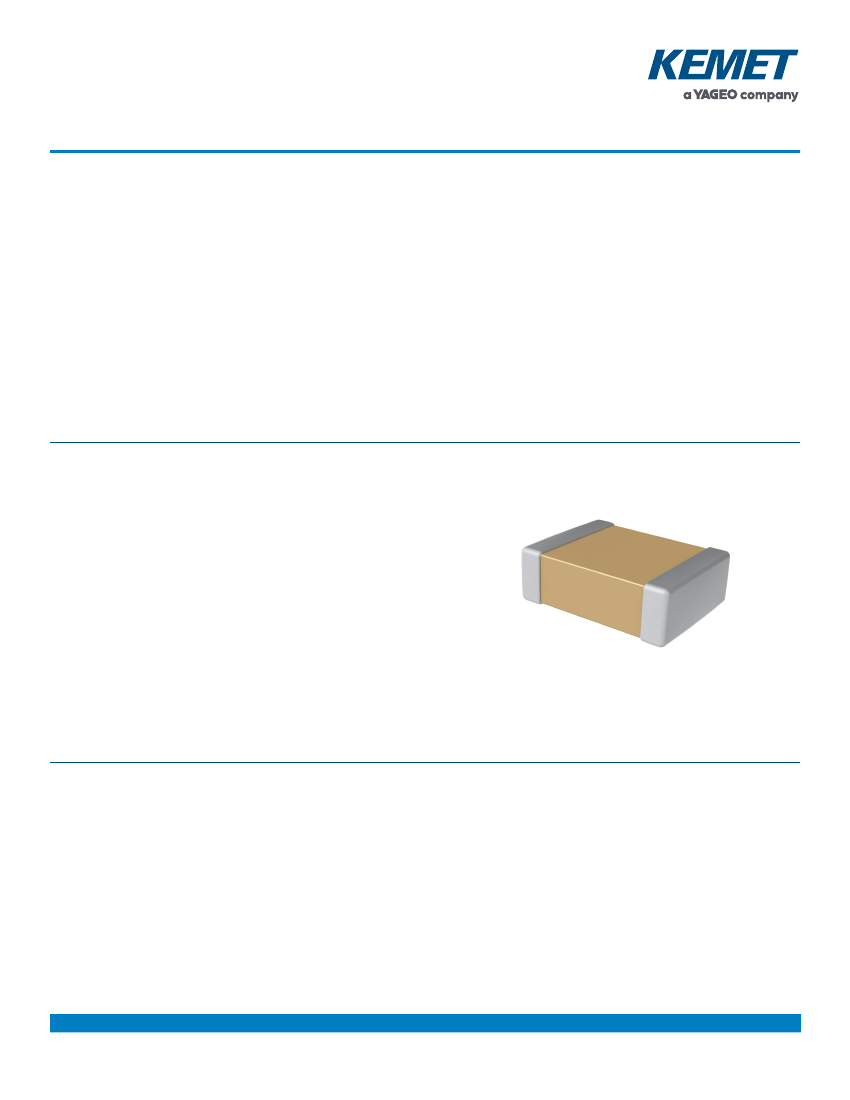

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1070_C0G_HV_FT-CAP_SMD • 9/14/2020
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
High Voltage with Flexible Termination System (HV FT-CAP), C0G Dielectric, 500 – 10,000 VDC (Commercial Grade)
Ordering Information
C
Ceramic
2225
X
393
Capacitance
Code (pF)
J
Capacitance
Tolerance
1
C
Rated
Voltage
(VDC)
C = 500
B = 630
D = 1,000
F = 1,500
G = 2,000
Z = 2,500
H = 3,000
K = 10,000
G
Dielectric
G=
C0G
A
Failure
Rate/
Design
A=
N/A
C
Termination Finish
2
C = 100% Matte Sn
L = SnPb (5% Pb minimum)
TU
Packaging/Grade
(C-Spec)
See
“Packaging
C-Spec Ordering
Options Table”
Case Size
Specification/
(L" x W")
Series
0603
0805
1206
1210
1808
1812
1825
2220
2225
X = Flexible Two significant
B = ±0.10 pF
C = ±0.25 pF
Termination
digits and
number of
D = ±0.5 pF
zeros.
F = ±1%
G = ±2%
J = ±5%
K = ±10%
M = ±20%
1
2
Additional capacitance tolerance offerings may be available. Contact KEMET for details.
Additional termination finish options may be available. Contact KEMET for details.
Packaging C-Spec Ordering Options Table
Packaging Type
1
Commercial Grade
1
Bulk Bag
7" Reel/Unmarked
13" Reel/Unmarked
7" Reel/Unmarked/2mm pitch
2
13" Reel/Unmarked/2mm pitch
2
7" Reel
13" Reel/Unmarked
7" Reel/Unmarked/2mm pitch
2
13" Reel/Unmarked/2mm pitch
2
1
1
Packaging/Grade
Ordering Code (C-Spec)
Not required (Blank)
TU
7411 (EIA 0603 and smaller case sizes)
7210 (EIA 0805 and larger case sizes)
7081
7082
Automotive Grade
3
AUTO
AUTO7411 (EIA 0603 and smaller case sizes)
AUTO7210 (EIA 0805 and larger case sizes)
3190
3191
Default packaging is “Bulk Bag”. An ordering code C-Spec is not required for “Bulk Bag” packaging.
The terms “Marked” and “Unmarked” pertain to laser marking option of capacitors. All packaging options labeled as “Unmarked” will contain
capacitors that have not been laser marked. The option to laser mark is not available on these devices. For more information see “Capacitor Marking”.
2
The 2mm pitch option allows for double the packaging quantity of capacitors on a given reel size. This option is limited to EIA 0603 (1608 metric) case
size devices. For more information regarding 2mm pitch option see “Tape & Reel Packaging Information”.
3
Reeling tape options (Paper or Plastic) are dependent on capacitor case size (L” x W”) and thickness dimension. See “Chip Thickness/Tape & Reel
Packaging Quantities” and “Tape & Reel Packaging Information”.
3
For additional Information regarding “AUTO” C-Spec options, see “Automotive C-Spec Information”.
3
All Automotive packaging C-Specs listed exclude the option to laser mark components. The option to laser mark is not available on these devices. For
