Integrated Communications Processors
MPC8544E
PowerQUICC III Processor
Overview
The MPC8544E PowerQUICC III processor
offers the unique combination of high
performance, exceptional integration
and lower overall power consumption for
networking, communications and industrial
control applications.
The MPC8544E includes a high-performance
e500 processor core, built on Power
Architecture
®
technology, enhanced
peripherals and high-speed interconnect
technology to balance processor performance
with I/O system throughput, enabling clock
speeds scaling from 667 MHz up to
1.067 GHz.
Third-generation PowerQUICC III processors
are based on Freescale’s 90 nm silicon-on-
insulator (SOI) copper interconnect process
technology, which is designed to enable the
processors to deliver higher performance with
lower power dissipation. The predecessors of
the MPC8544E—the MPC8548E family—were
one of the first generation of PowerQUICC III
processors to use this core set of technology.
These 90 nm processors are designed to
deliver a significant performance increase over
130 nm PowerQUICC devices, providing a
higher level of performance and exceptional
integration to the PowerQUICC family.
The MPC8544E processor offers a wide
range of high-speed connectivity options,
including Gigabit Ethernet (GbE) interfaces
with SGMII support and multiple PCI Express
®
connections. Support for these high-speed
interfaces enables scalable connectivity to
network processors and/or ASICs in the data
plane while the PowerQUICC III is designed to
handle complex, computationally demanding
control plane processing tasks.
The MPC8544E is also designed to provide
support for legacy PowerQUICC III interfaces
such as PCI, I
2
C, dual universal asynchronous
receiver/transmitters (DUART) and local
bus connections. These processors feature
a DDR2 memory controller, enhanced
GbE support, v2 e500 double precision
floating point and the field-proven 90 nm
PowerQUICC III integrated security engine.
Key Advantages
• High level of integration and performance
• Consistent programming model across
the PowerQUICC III family
• Flexible SoC platform for fast time
to market
• Simplified board design
• 256 KB L2 cache memory
• High internal processing bandwidth
• Integrated DDR and DDR2
memory controller
• Two integrated Ethernet controllers
(enhanced TSEC) with SGMII support
• Flexible, high-speed interconnection
interfaces/multiple PCI Express connections
• 32-bit PCI support
• Integrated security engine

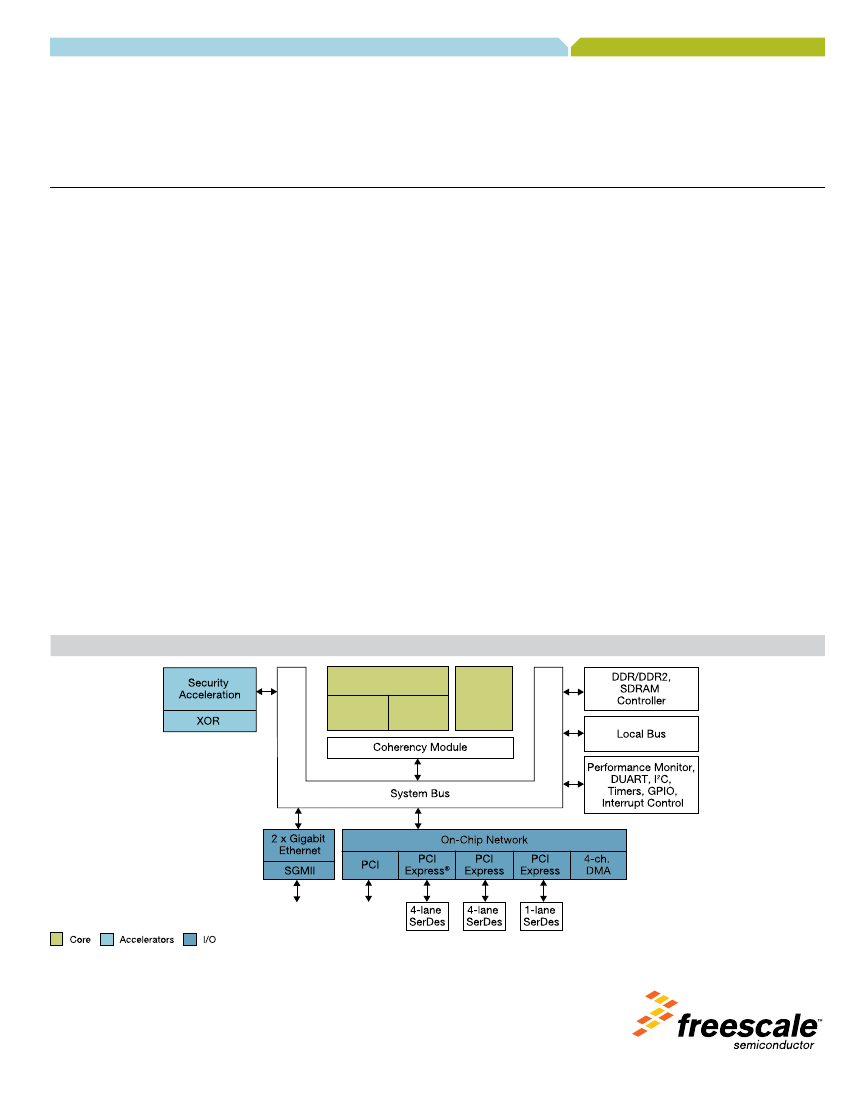

MPC8544E Block Diagram
e500 Core
32 KB
I-Cache
32 KB
D-Cache
256 KB
L2
MPC8544E Technical
Specifications
• Embedded e500 core, initial
offerings from 667 MHz up to 1.067 GHz
Dual dispatch superscalar, seven-stage
pipeline design with out-of-order issue
and execution
2,240 MIPS at 1.0 GHz
(estimated Dhrystone 2.1)
36-bit physical addressing
• Enhanced hardware and software
debug support
• Double-precision embedded scalar and
vector floating point APUs
• Memory management unit (MMU)
• Integrated L1/L2 cache
L1 cache—32 KB data and 32 KB
instruction cache with line-locking
support
L2 cache—256 KB (8-way set
associative) 256/128/64/32 KB can be
used as SRAM
L1 and L2 hardware coherency
L2 cache and I/O transactions can be
stashed into L2 cache regions
• Integrated DDR memory controller with full
ECC support, offering:
200 MHz clock rate (400 MHz data
rate), 64-bit, 2.5V/2.6V I/O, DDR
SDRAM
267 MHz clock rate (up to 533 MHz
data rate), 64-bit, 1.8V I/O, DDR2
SDRAM
• Integrated security engine supporting
DES, 3DES, MD-5, SHA-1/2, AES,
RSA, RNG, Kasumi F8/F9 and ARC-4
encryption algorithms (MPC8544E)
• Two on-chip, three-speed Ethernet
controllers (eTSECs) supporting 10 Mbps,
100 Mbps and 1 Gbps Ethernet/IEEE
®
802.3 networks with MII, RMII, GMII,
RGMII TBI and RTBI physical interfaces,
as well as SGMII interfaces through a
dedicated SerDes
TCP/UDP/IP checksum acceleration
Advanced QoS features
• General-purpose input/output (GPIO)
• PCI Express high-speed interconnect
interfaces, supporting combinations of
dual x4 and single x1 PCI Express
• On-chip network (OCeaN) switch fabric
• PCI interface support
32-bit PCI 2.2 bus controller
(up to 66 MHz, 3.3V I/O)
• Local bus
133 MHz, 32-bit, 3.3V I/O, local bus
with memory controller
• Integrated four-channel DMA controller
• Dual I
2
C and DUART support
• Programmable interrupt controller (PIC)
• IEEE 1149.1 JTAG test access port
• 1.0V core voltage with 3.3V and 2.5V I/O
• 783-pin FC-PBGA package
• Operating junction temperature range:
T
J
= 0ºC to +105ºC, extended temperature
range: T
J
= -40ºC to +105ºC

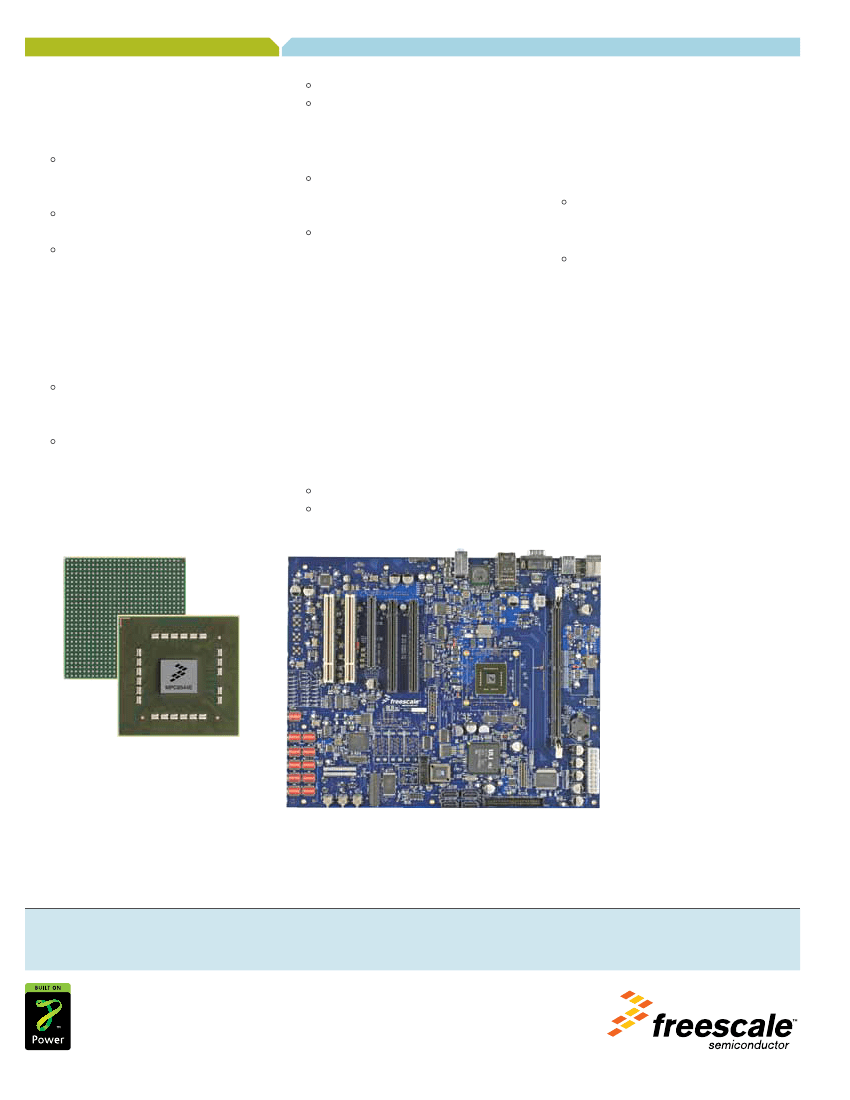

Development System
The MPCEVAL-DS-8544 development system includes Linux
®
2.6.19 + BSP
with optimized drivers to support all peripherals and a limited CodeWarrior
development tools evaluation license.
Learn More:
For current information about Freescale
products and documentation, please visit
freescale.com/PowerQUICC.
Freescale, the Freescale logo, CodeWarrior and PowerQUICC are trademarks of Freescale Semiconductor, Inc.,
Reg. U.S. Pat. & Tm. Off. All other product or service names are the property of their respective owners. The Power
Architecture and Power.org word marks and the Power and Power.org logos and related marks are trademarks and
service marks licensed by Power.org. © 2007, 2010 Freescale Semiconductor, Inc.
Document Number: MPC8544FS
REV 2
