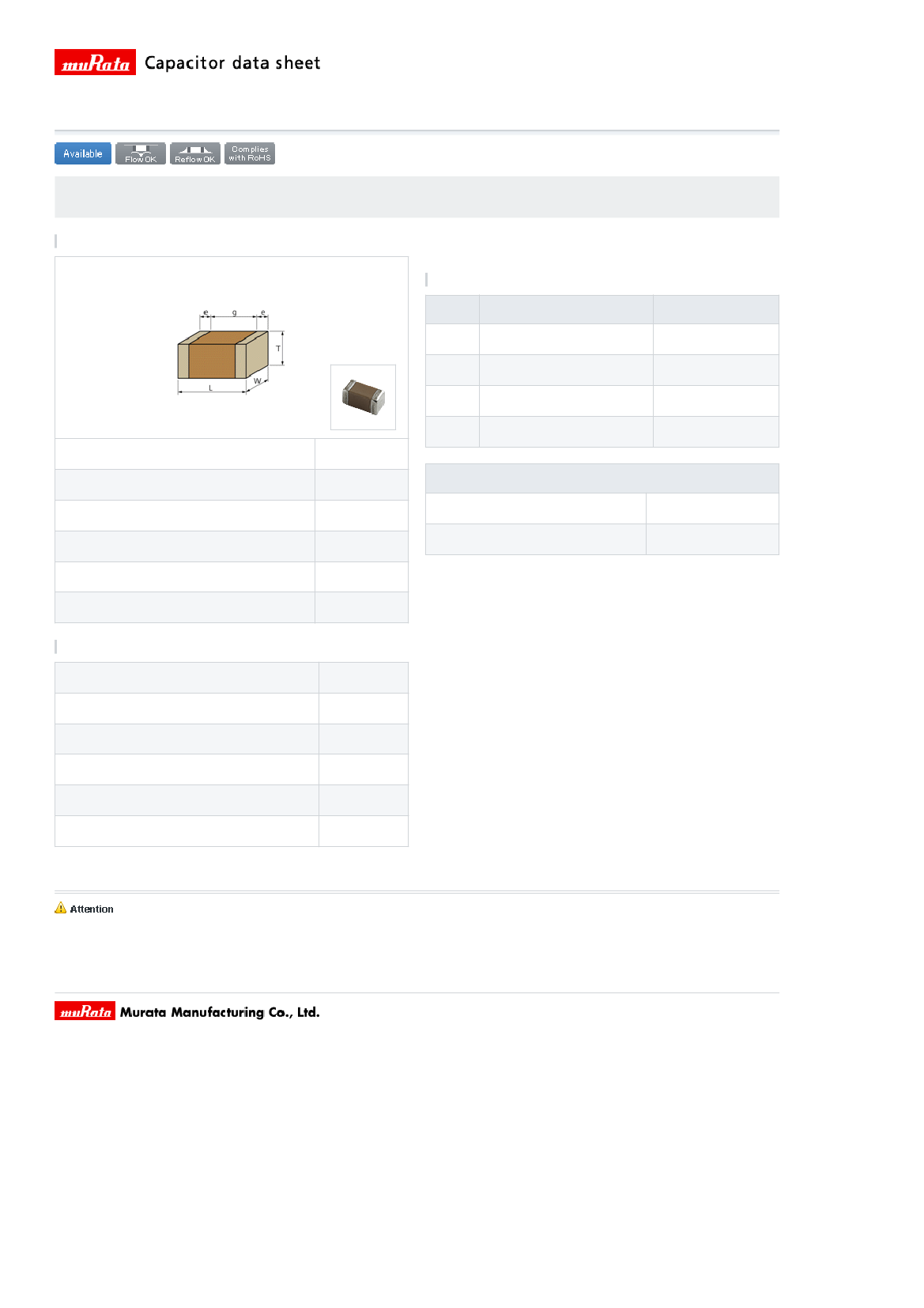

GRM216R71H471KA01C: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00047uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size41KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GRM216R71H471KA01C Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00047uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT

GRM216R71H471KA01C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1094407869
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.00047 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.6 mm
JESD-609 code	e3
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	BULK
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
size code	0805
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

GRM216R71H471KA01#

# indicates a package specification code.

< List of part numbers with package codes >

GRM216R71H471KA01D , GRM216R71H471KA01J , GRM216R71H471KA01C , GRM216R71H471KA01B

Shape

References

Packaging

D

J

C

B

L size

W size

T size

External terminals width e

Distance between external terminals g (Min.)

Size code in mm(inch)

2.0 ±0.1mm

1.25 ±0.1mm

0.6 ±0.1mm

0.2 to 0.7mm

0.7mm

2012 (0805)

1 piece

Reel (φ180mm)

Mass (typ.)

9.6mg

142g

Specifications

Paper tape (φ180mm)

Paper tape (φ330mm)

Bulk case

Packing in bulk

Minimum quantity

4000pcs.

10000pcs.

1000pcs.

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Rate of capacitance change

Temperature range of temperature characteristics

Operating temperature range

470pF ±10%

50Vdc

X7R(EIA)

±15%

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2012/04/10
