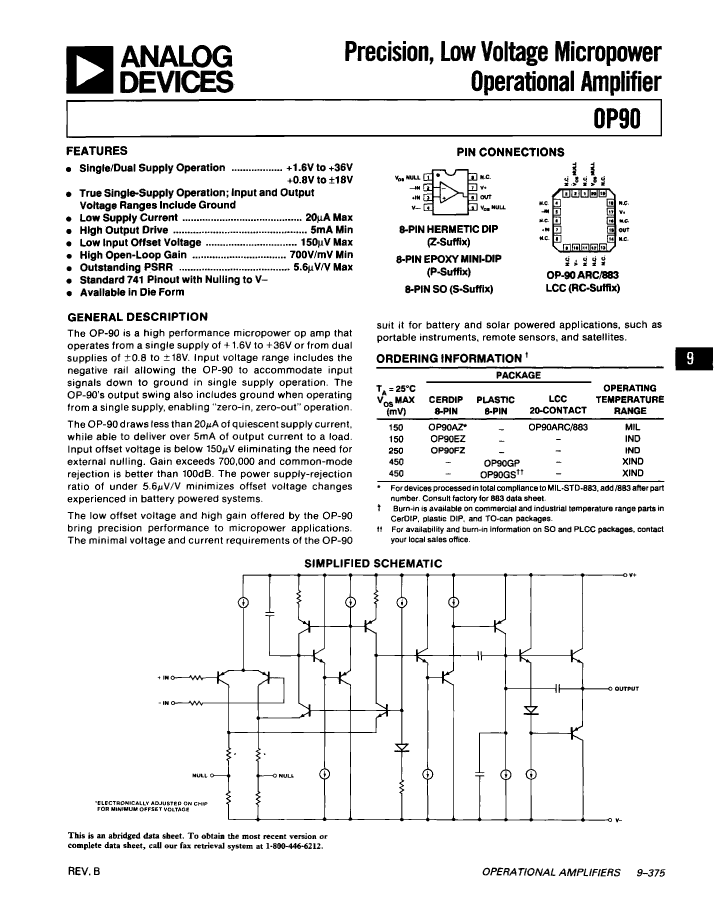

Preview

5962-8989601PX: Description5962-8989601PX amplifier basic information: 5962-8989601PX is an OPERATIONAL AMPLIFIER. 5962-8989601PX amplifier core information: The minimum operating temperature of the 5962-8989601PX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.015 µA How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-8989601PX is 5000 V/us. The nominal supply voltage of 5962-8989601PX is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the 5962-8989601PX is 150 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).) Related dimensions of 5962-8989601PX: 5962-8989601PX has 8 terminals. Its terminal position type is: DUAL. 5962-8989601PX amplifier additional information: Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T8. The packaging code of 5962-8989601PX is: DIP. The materials used in the 5962-8989601PX package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR. The 5962-8989601PX package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size112KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com; Alternative parts：5962-8989601PX

Download Datasheet Parametric Compare View All

5962-8989601PX Overview

5962-8989601PX amplifier basic information:

5962-8989601PX is an OPERATIONAL AMPLIFIER.

5962-8989601PX amplifier core information:

The minimum operating temperature of the 5962-8989601PX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.015 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-8989601PX is 5000 V/us.

The nominal supply voltage of 5962-8989601PX is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the 5962-8989601PX is 150 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of 5962-8989601PX:

5962-8989601PX has 8 terminals. Its terminal position type is: DUAL.

5962-8989601PX amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T8. The packaging code of 5962-8989601PX is: DIP. The materials used in the 5962-8989601PX package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR.

The 5962-8989601PX package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

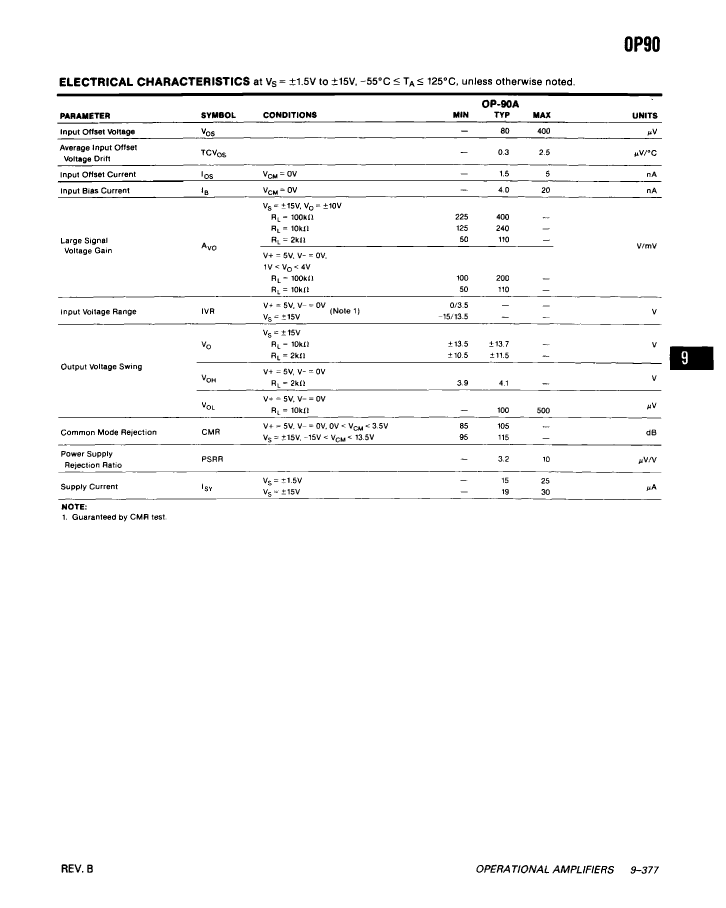

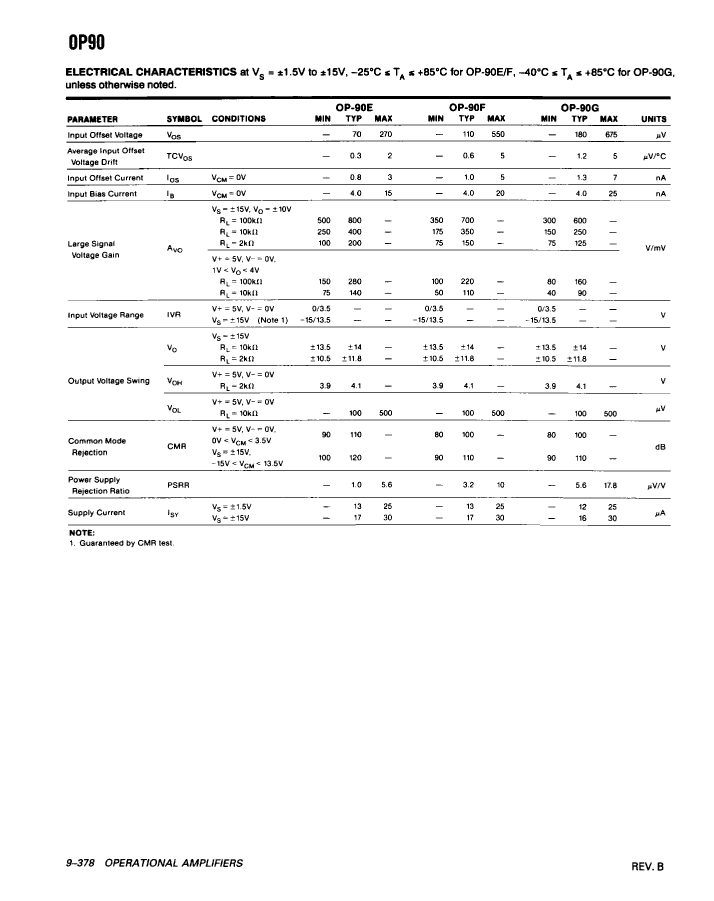

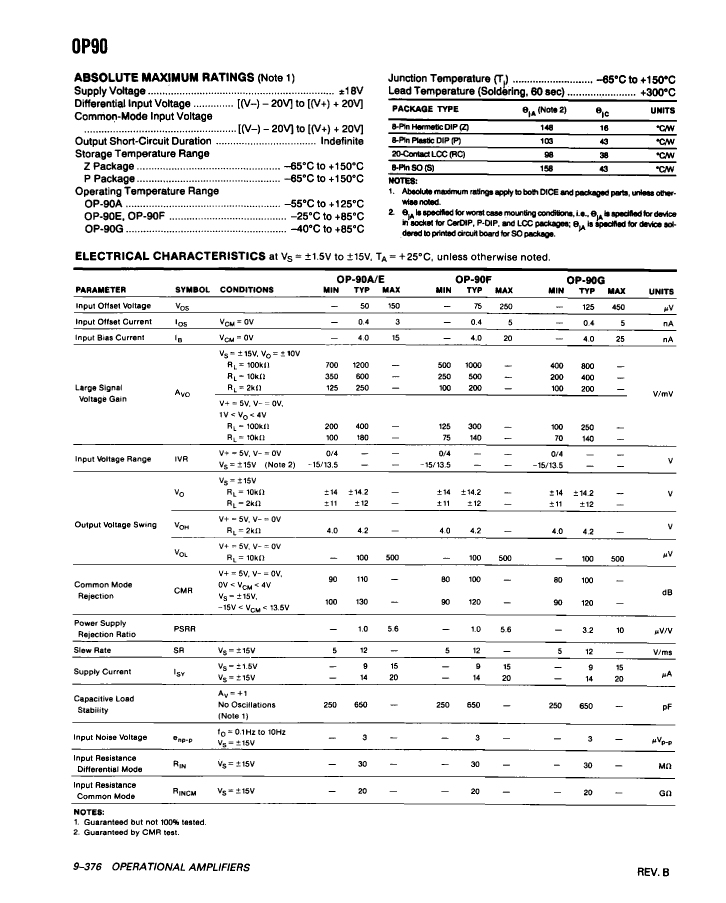

5962-8989601PX Parametric

Parameter Name	Attribute value
Maker	ADI
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.015 µA
Nominal Common Mode Rejection Ratio	100 dB
Maximum input offset voltage	150 µV
JESD-30 code	R-GDIP-T8
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal slew rate	5000 V/us
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

5962-8989601PX Related Products

	5962-8989601PX	5962-89896012X
Description	IC OP-AMP, 150 uV OFFSET-MAX, CDIP8, CERAMIC, DIP-8, Operational Amplifier	IC OP-AMP, 150 uV OFFSET-MAX, CQCC20, QCC-20, Operational Amplifier
Maker	ADI	ADI
Parts packaging code	DIP	QLCC
package instruction	DIP,	QCC-20
Contacts	8	20
Reach Compliance Code	unknown	compliant
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.015 µA	0.015 µA
Nominal Common Mode Rejection Ratio	100 dB	100 dB
Maximum input offset voltage	150 µV	150 µV
JESD-30 code	R-GDIP-T8	S-CQCC-N20
Negative supply voltage upper limit	-20 V	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	8	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
Certification status	Not Qualified	Not Qualified
Nominal slew rate	5000 V/us	5000 V/us
Supply voltage upper limit	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	YES
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	QUAD
Base Number Matches	1	1
